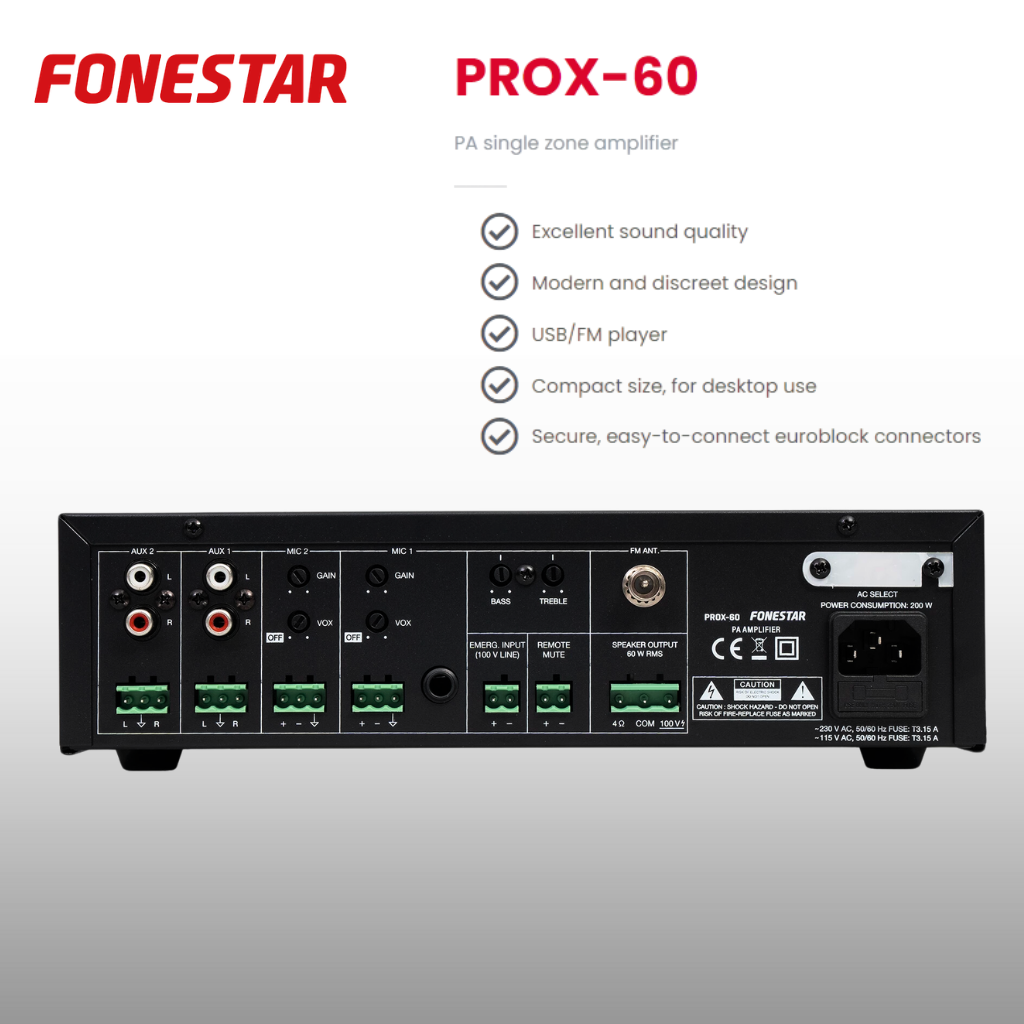

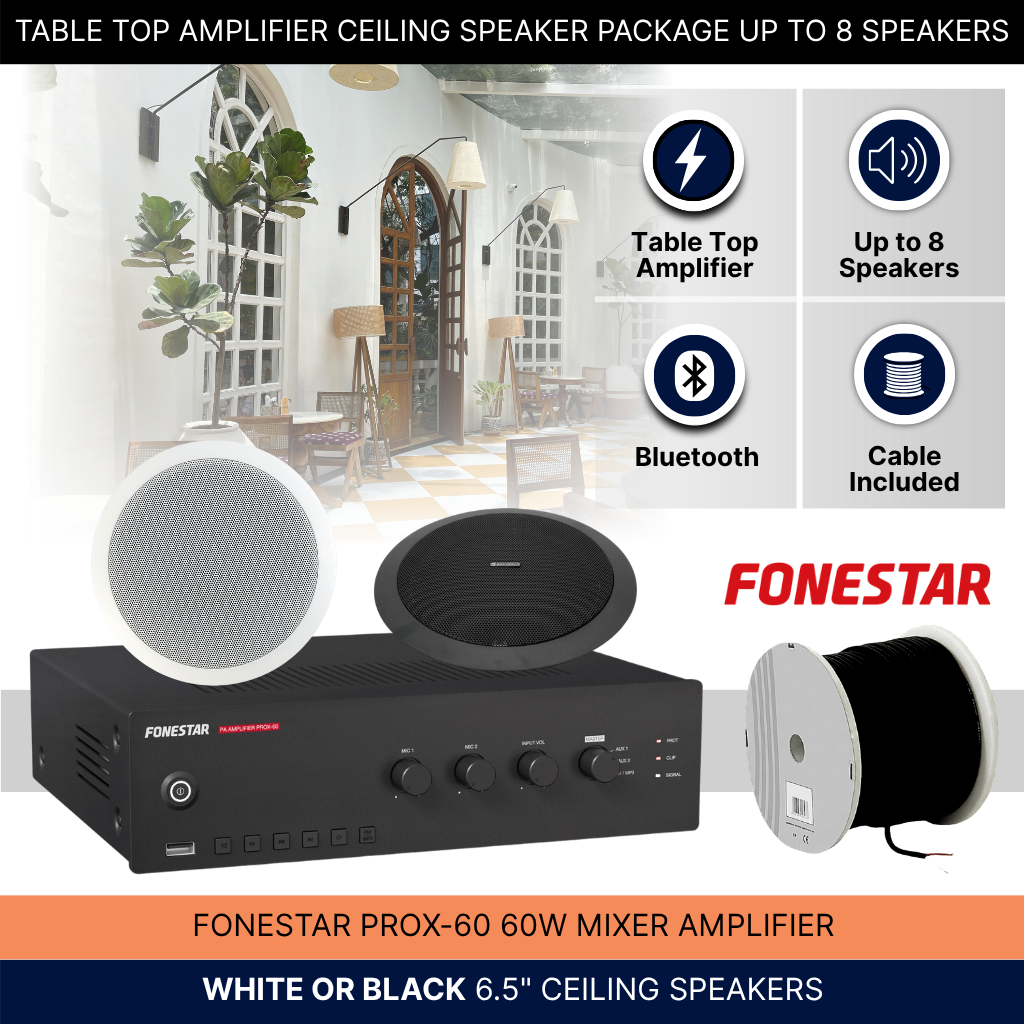

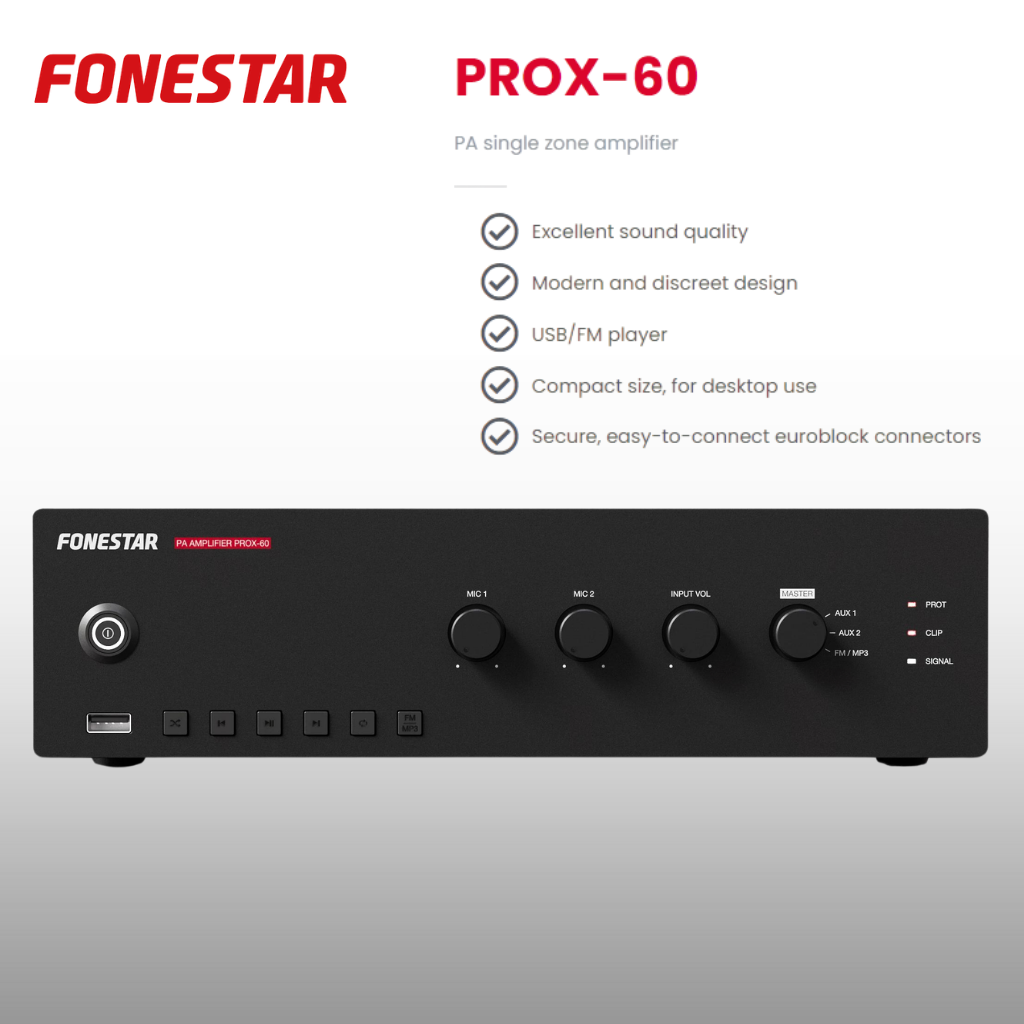

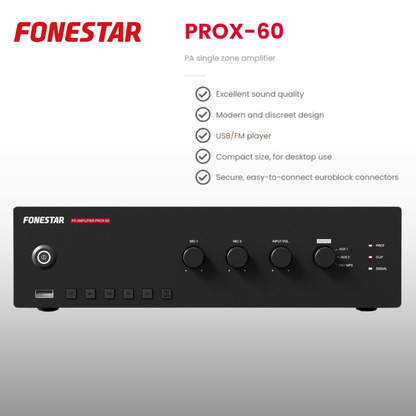

Fonestar PROX-60 mixer amplifier
FEATURES: Public address amplifier.
USB/FM player.
Microphone input with mix, gain and priority level control.
Tone controls.
100 V and 4 Ω outputs.
POWER: 60 W RMS
RESPONSE: 20-20,000 Hz ± 3 dB
DISTORTION: Harmonic: <1% at 1 kHz
INPUTS: 1 balanced / unbalanced mic,
euroblock / 6.3 mm jack, 600 Ω 6 mV RMS
1 balanced mic, euroblock, 600 Ω 6 mV RMS
2 aux, euroblock / 2 x RCA, 47,000 Ω 300 mV RMS
1 x 100 V line , euroblock
FUNCTIONS: Input priority.
Emergency Input 100V with maximum priority, attenuates all other inputs.
Mute by contact closure, attenuates all inputs except the 100V Emergency input.
Microphone 1 and 2 with priority over Aux and Playback inputs, by signal level, selectable.
Power on, protection, signal peak and output signal indicator lights.
Fanless induction cooling
CONTROLS: Microphone volume
Selected input volume
Input selector
USB/FM player controls
Tone: bass and treble
Microphone gain and priority
PLAYER: USB player with background music playback mode. When switched on, automatically starts playback
FM digital tuner with presets and automatic scanning
Memory of last mode selected (USB or FM), last song played or last station tuned.
Starts playing in successive order
IMPEDANCE: 4 Ω and 100 V line, euroblock
POWER SUPPLY: 230/115 V AC, 200 W
DIMENSIONS: 286 x 84 x 225 mm depth
WEIGHT: 4.4 kg
ACCESSORIES: FM antenna
