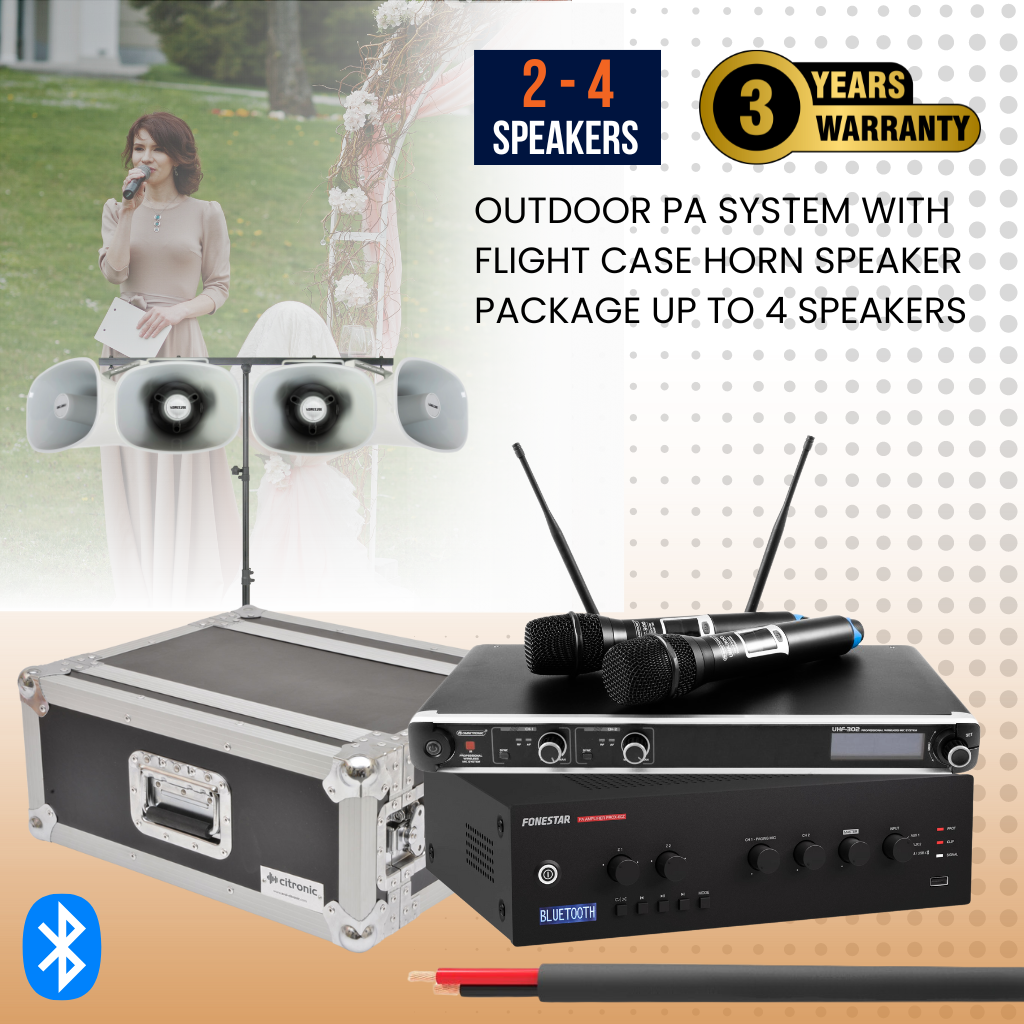

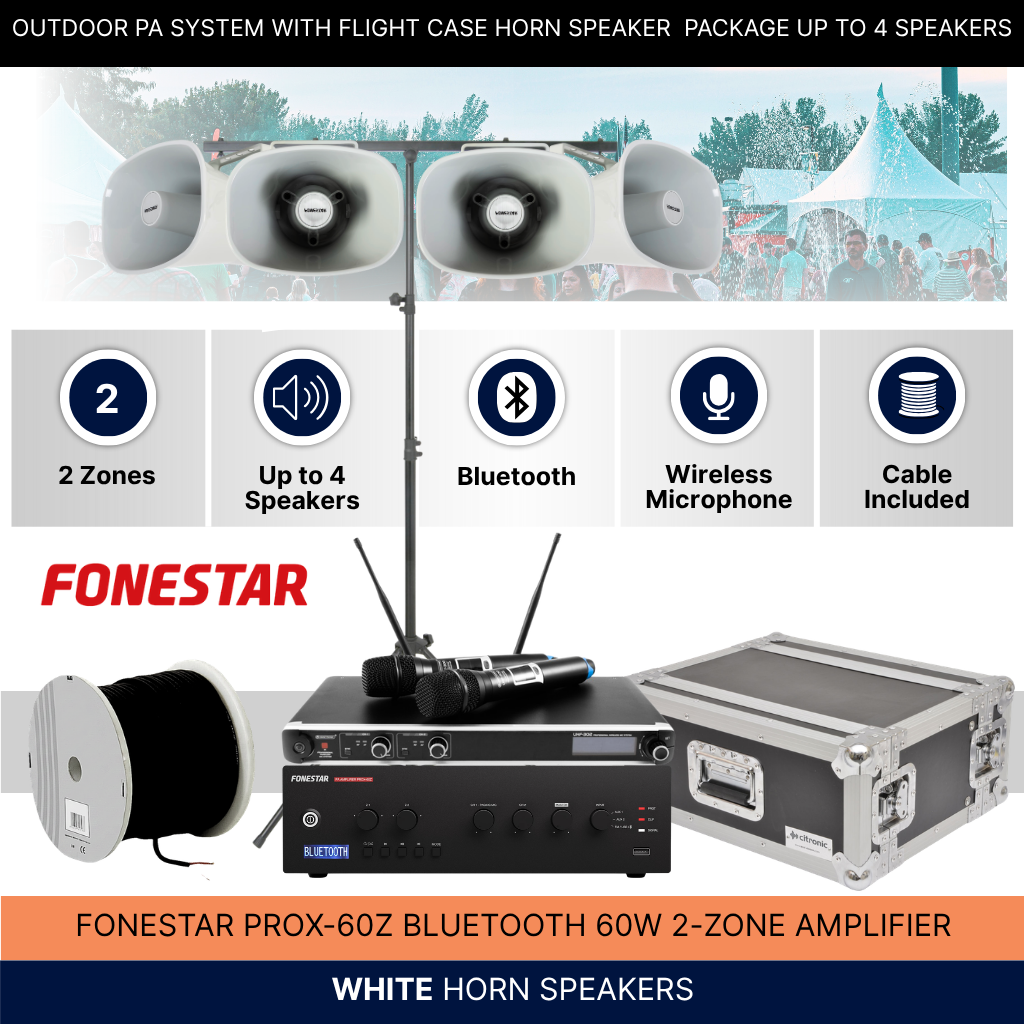

Outdoor PA System With Flight Case Horn Speaker Package Up To 4 Speakers

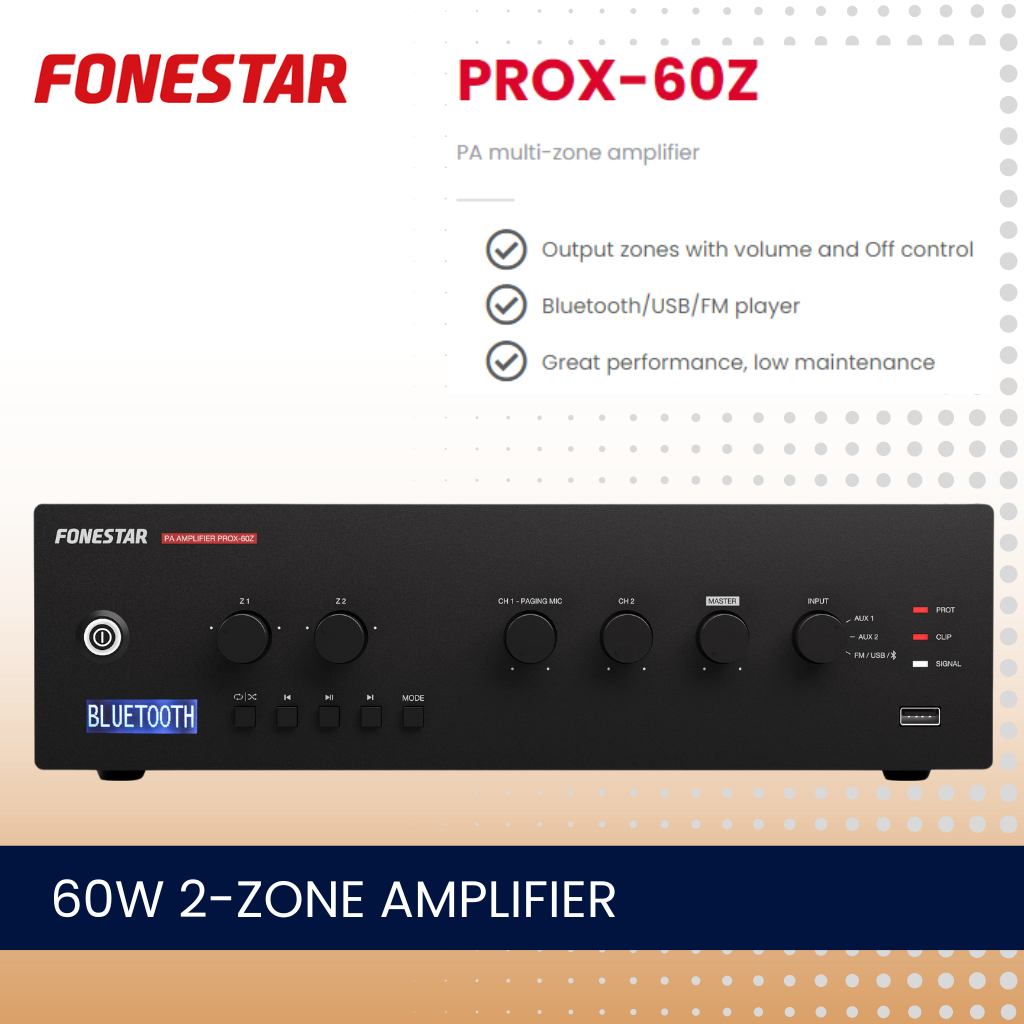

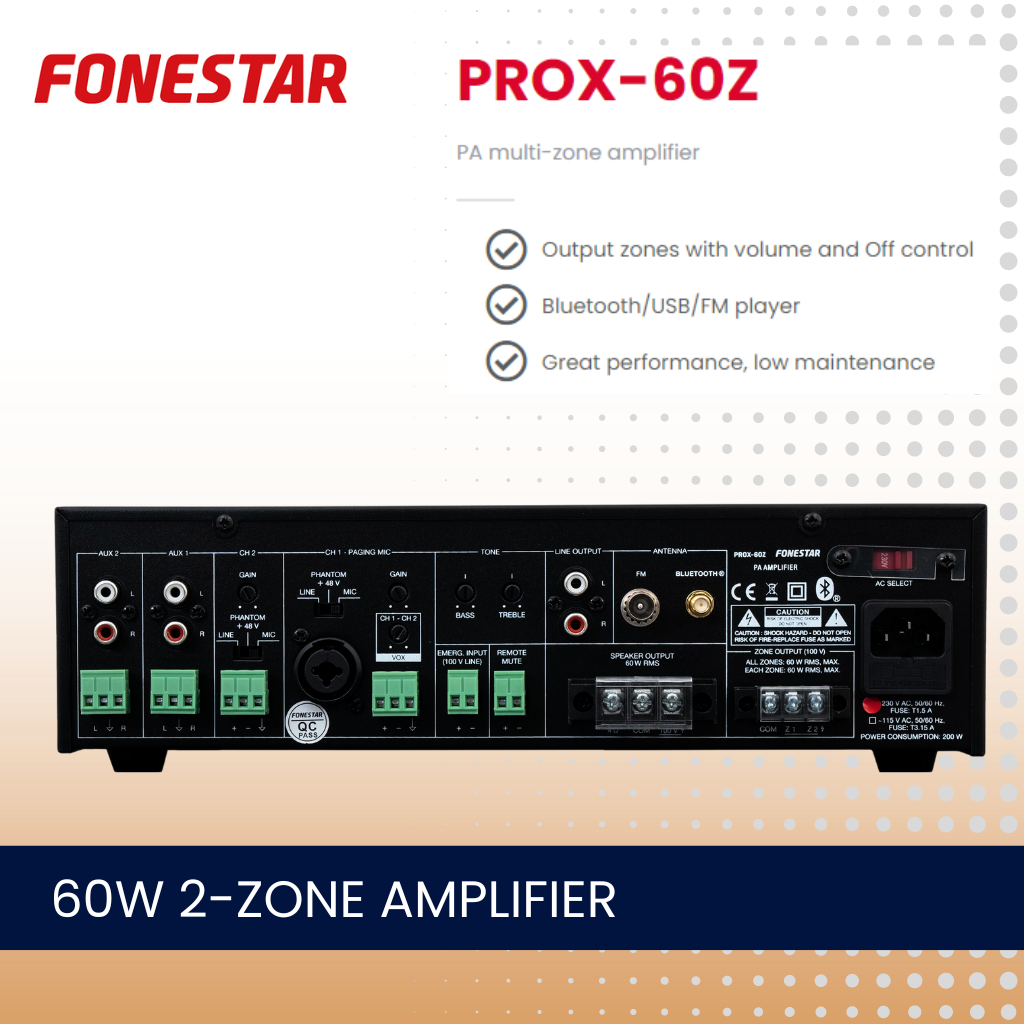

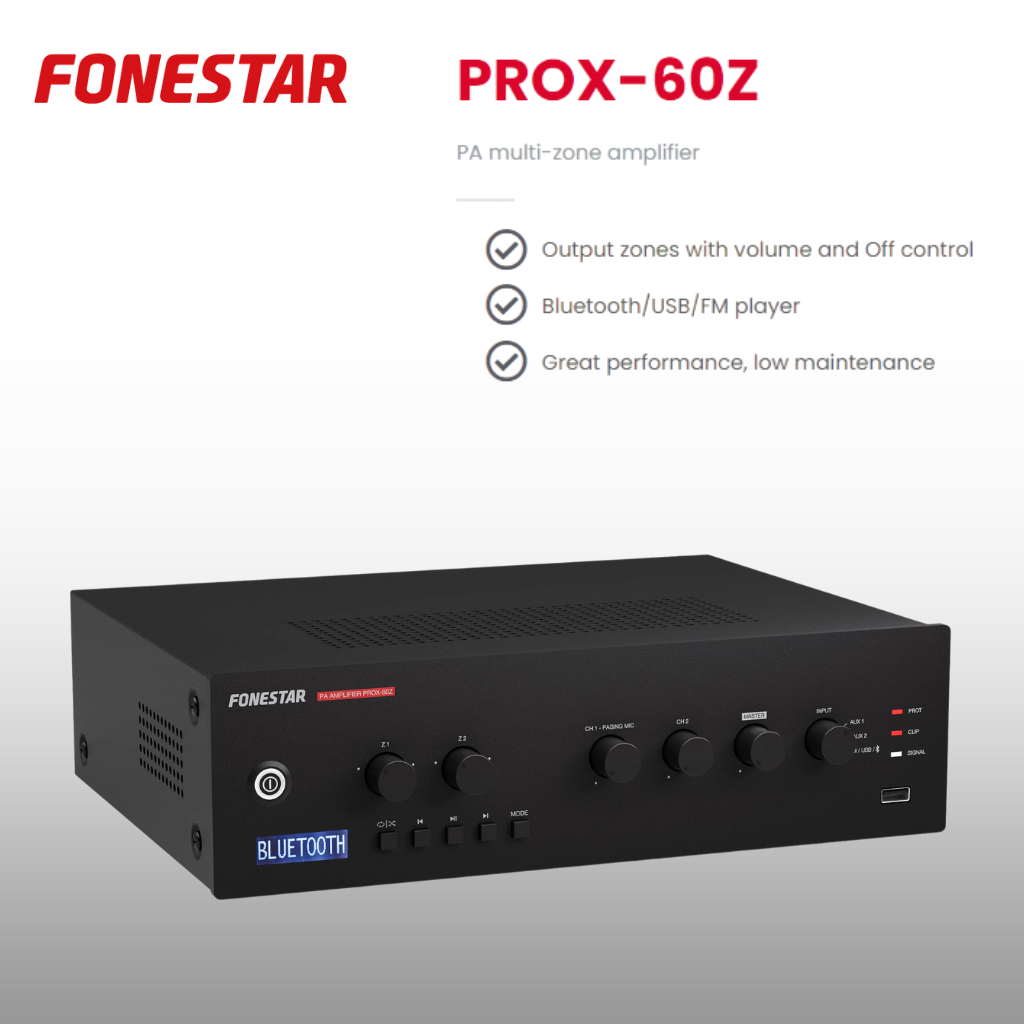

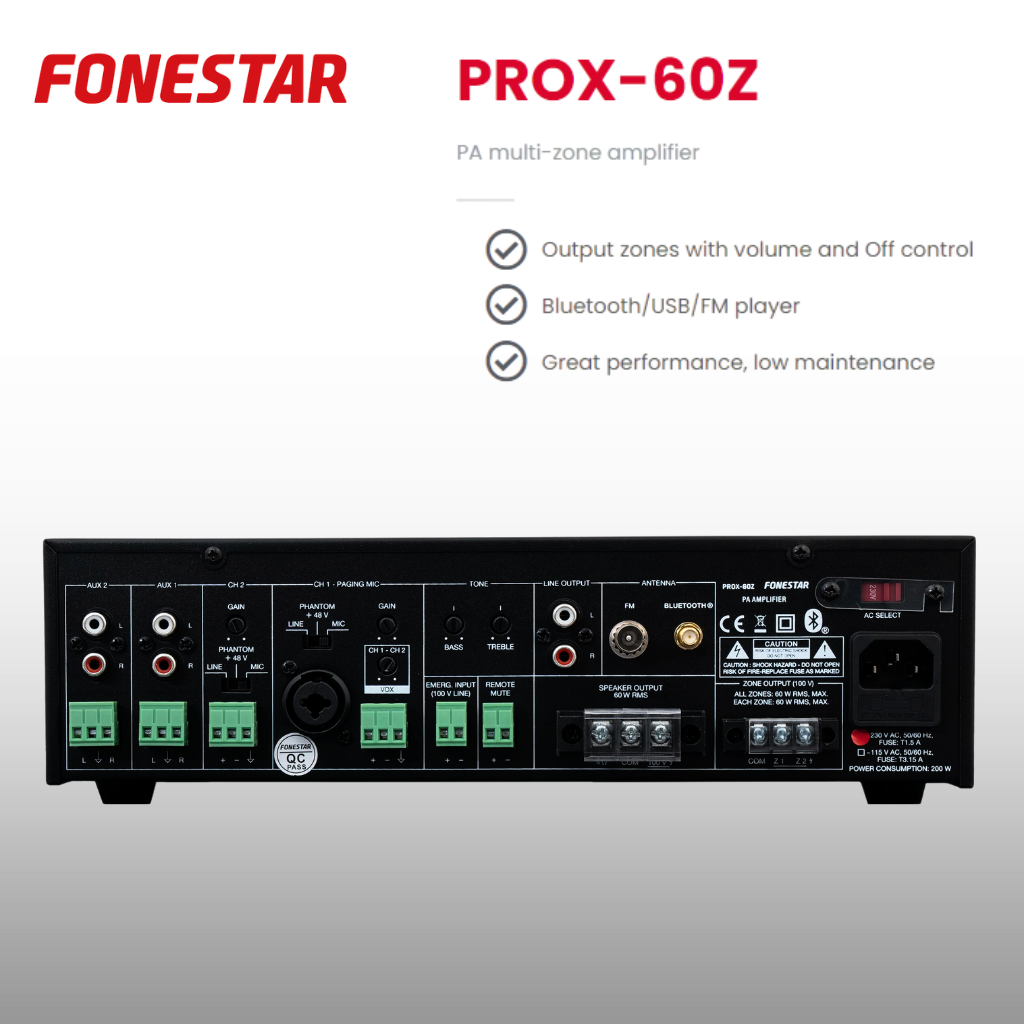

Fonestar PROX-60Z 2-zone amplifier

FEATURES: Public Address Amplifier
Bluetooth/USB/FM player.
Microphone inputs with mix, gain and priority level control.
Input priorities by signal level.
Tone controls.
100 V and 4 Ω outputs.
2 output zones with volume and Off control.
POWER: 60 W RMS
RESPONSE: 60-20,000 Hz (-10 dB)
DISTORTION: THD+N: < 1% @ 1 kHz
S/N RATIO: >77 dB
PROTECTIONS: Overcurrent, DC and short-circuit at the output
INPUTS: CH 1 balanced mic/line with 48 V Phantom, Combo (XLR + 6.3 mm) and euroblock.
CH 2 balanced mic/line with 48 V Phantom, Euroblock connector.
Mic signal level: 6 mV RMS (-44 dBV)/600 Ω
Line signal level: 250 mV RMS (-12 dBV)/100 kΩ
2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV)/47,000 Ω
1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
1 Mute (Emergency Priority) by contact closure. Euroblock connector
OUTPUTS: 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV)
100 V or 4 Ω speaker output, or 2 100 V speaker zones with 5-position volume selector and OFF. Connector screw terminals
IMPEDANCE: 4 Ω and 100 V line (166 Ω)
FUNCTIONS: Input priority (Voice over VOX inputs):
100 V Emergency input with highest priority, attenuates all other inputs.
Mute by contact closure, attenuates all inputs except the 100 V Emergency input.
Channel 1 with priority over all other inputs, selectable level.
Channel 2 with priority over auxiliary inputs, level selectable.
Other functions:
Power on, protection, signal peak and output signal indicator lights.
Fanless induction cooling
PLAYER: Bluetooth/USB/FM player for background music playback
MP3 and WAV files supported
Maximum USB memory capacity 64 GB
Autoplay, starts playback automatically on power on
Memory of last selected mode
Memory of playback mode (random, repeat)
CONTROLS: Microphone volume
Mic/line/phantom selector
Master volume
Aux input or player selector
Zone volume
Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
Microphone gain
Priority activation signal level (VOX)
OPERATING TEMPERATURE: Operation: 0º ~ 40ºC
MAXIMUM HUMIDITY: 95%
POWER SUPPLY: 230/115 V AC 50-60 Hz, 200 W
Fuse AC 230 V 1.5 A / 115 V 3.15A
DIMENSIONS: 320 x 94 x 281 mm depth
WEIGHT: 5 kg
ACCESSORIES: FM antenna
Bluetooth antenna
Power cable

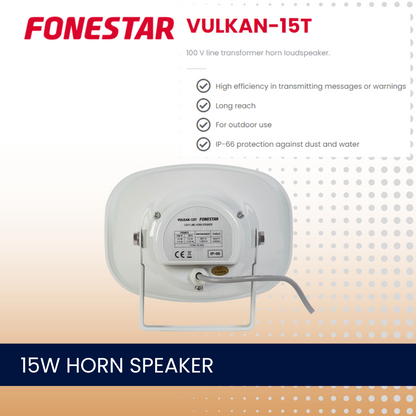

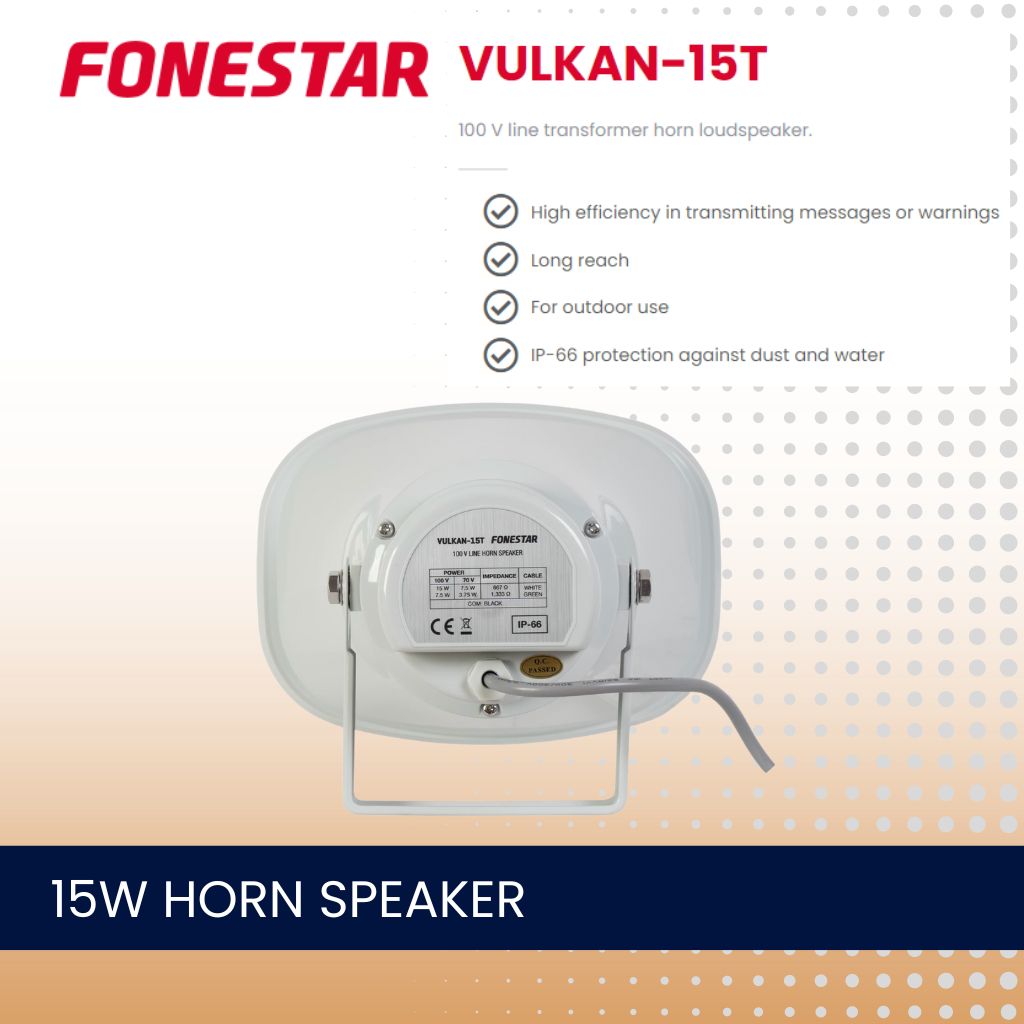

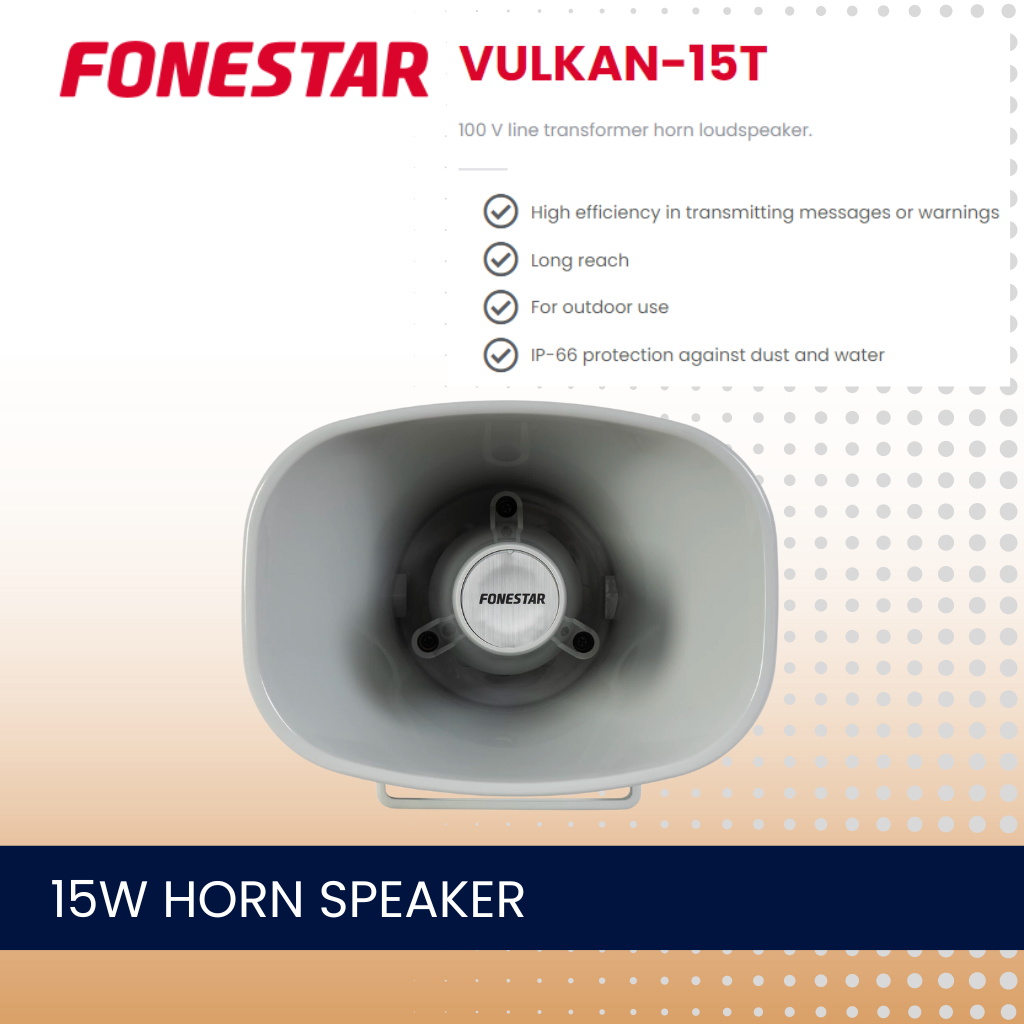

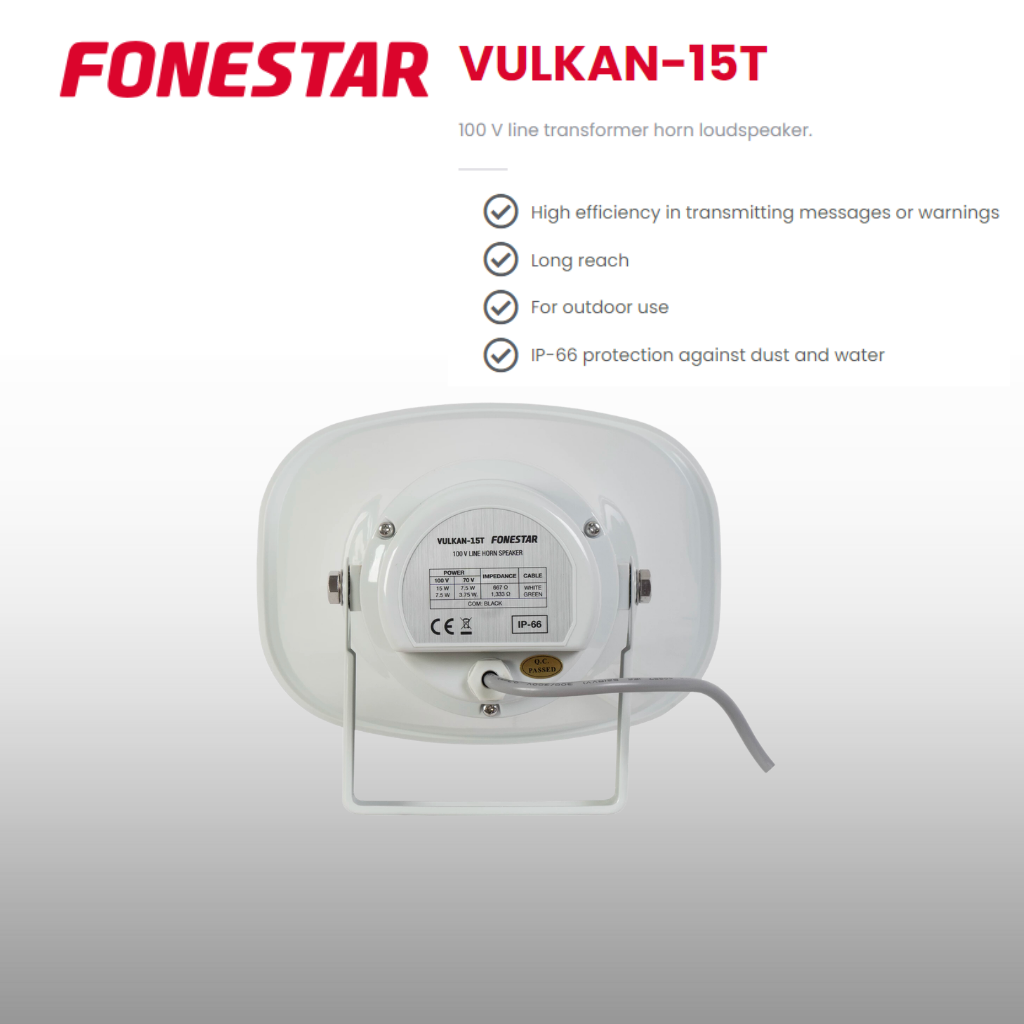

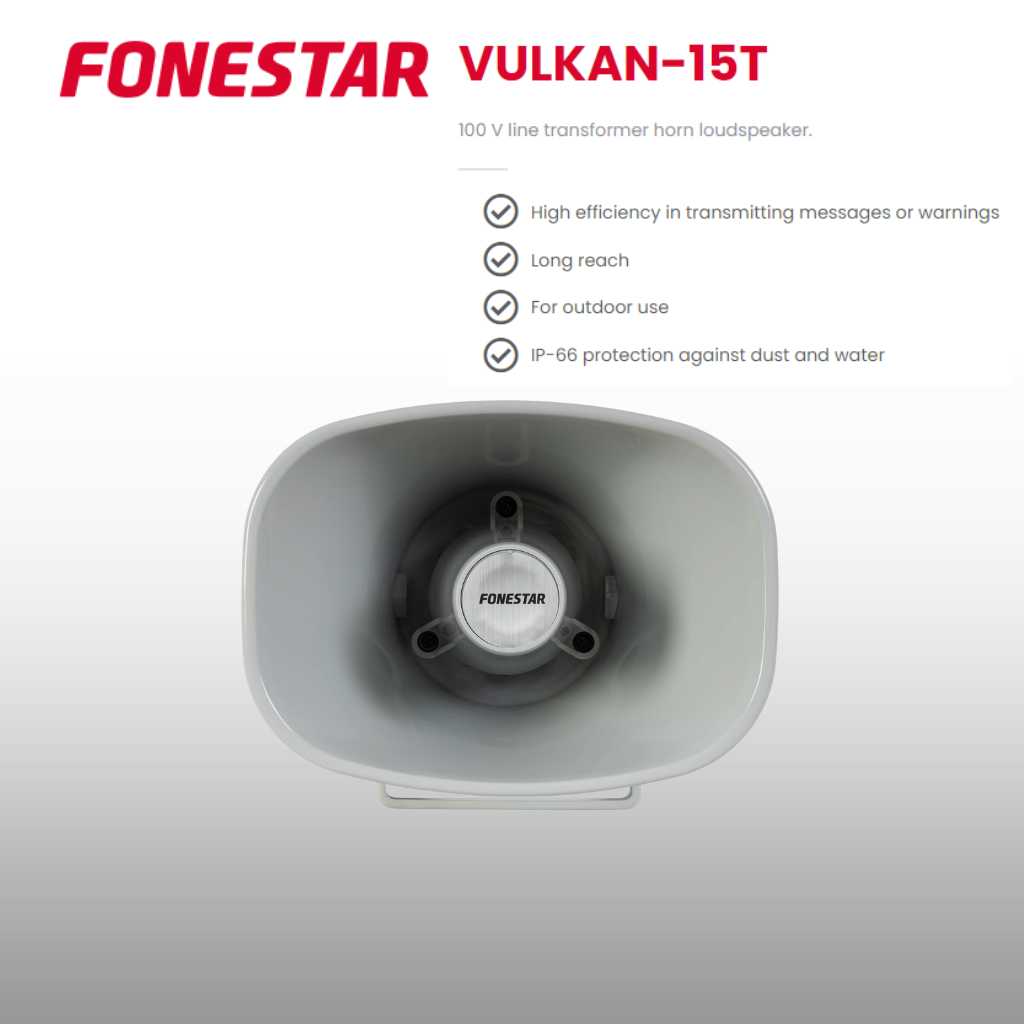

Fonestar VULKAN-15T horn speakers (white)

FEATURES: 100 V line transformer horn loudspeaker.
Prepared for outdoor use with anti-corrosion materials.
Protection against water.
For long-range message playback.
POWER: 15 W RMS
LOUDSPEAKERS: 1 x compression driver
RESPONSE: 320-6,000 Hz (-10 dB)
IMPEDANCE: 15 W RMS@100 V (666 Ω)
7.5 W RMS@100 V (1.333 Ω)
SENSITIVITY: 105 dB @ 1 W/1 m
MAXIMUN SOUND PRESSURE: 116 dB @ at maximum power/1 m
DISPERSION: H/V: 180º/160º@500Hz, 90º/80º@1kHz, 50º/40º@2kHz, 40º/30º@4kHz (-6 dB)
PROTECTIONS: IP-66 in compliance with EN 60529
MATERIAL: ABS diffuser and rear cover
Aluminium mount
A2 stainless steel screws
CONNECTION: 30 cm cable with stripped ends
TEMPERATURE RANGE: Operation: -25ºC ~ +55ºC
Storage: -40ºC ~ +70ºC
HUMIDITY: <95%
COLOUR: White (RAL 7035)
DIMENSIONS: 222 x 162 x 232 mm depth
WEIGHT: 1.36 kg

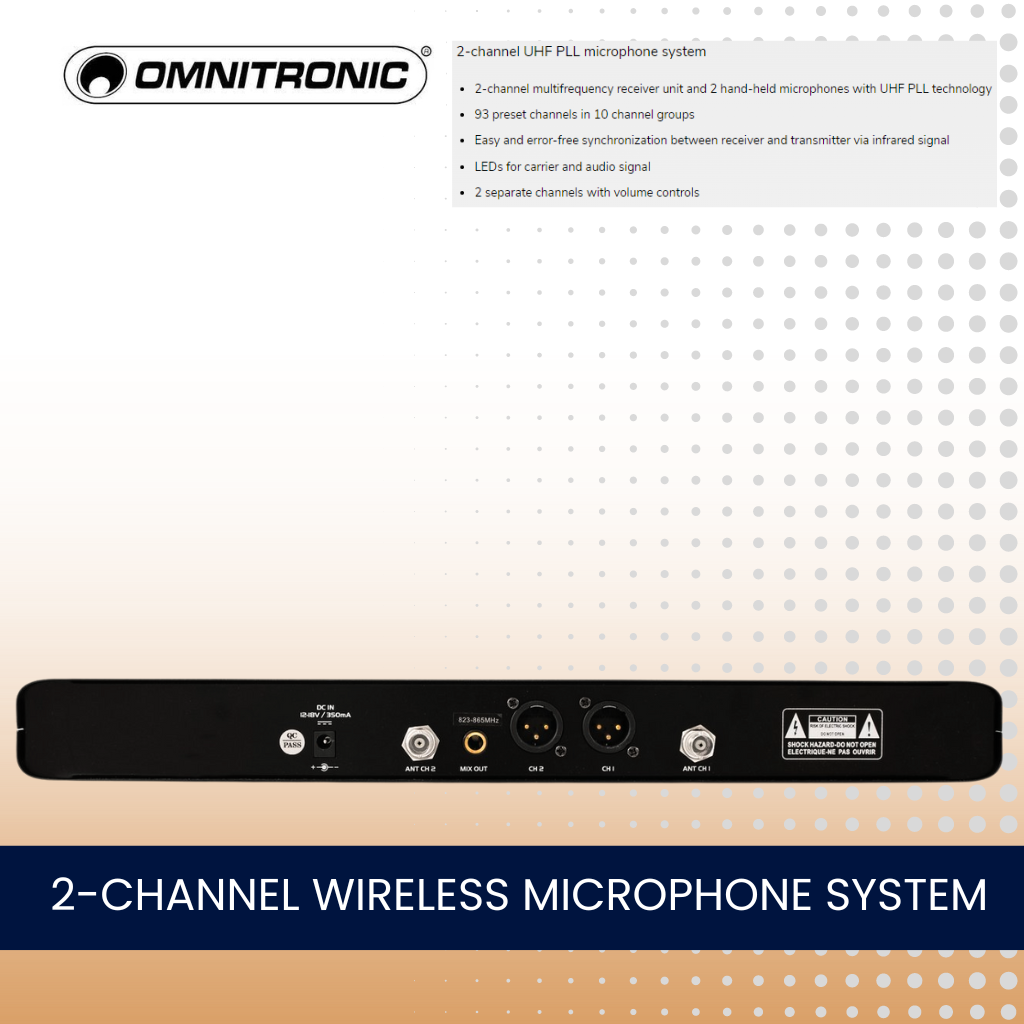

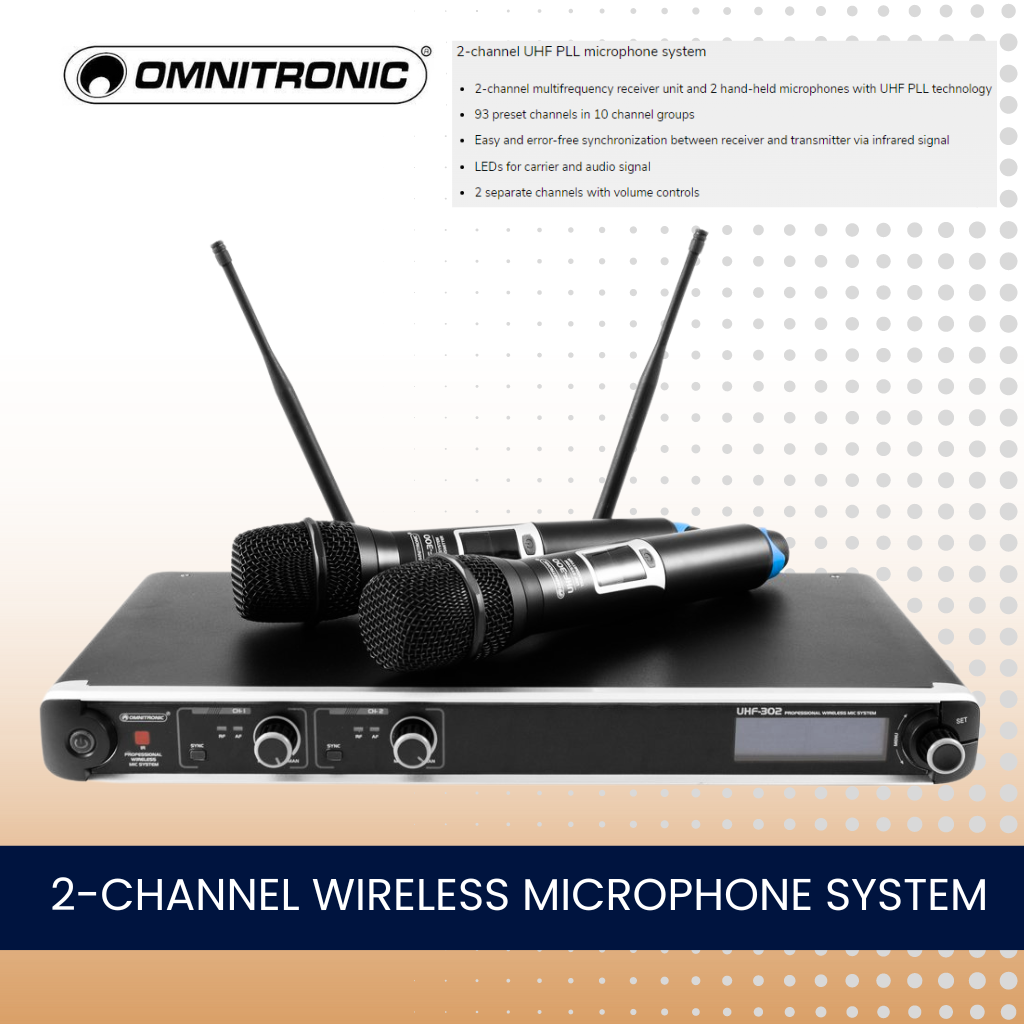

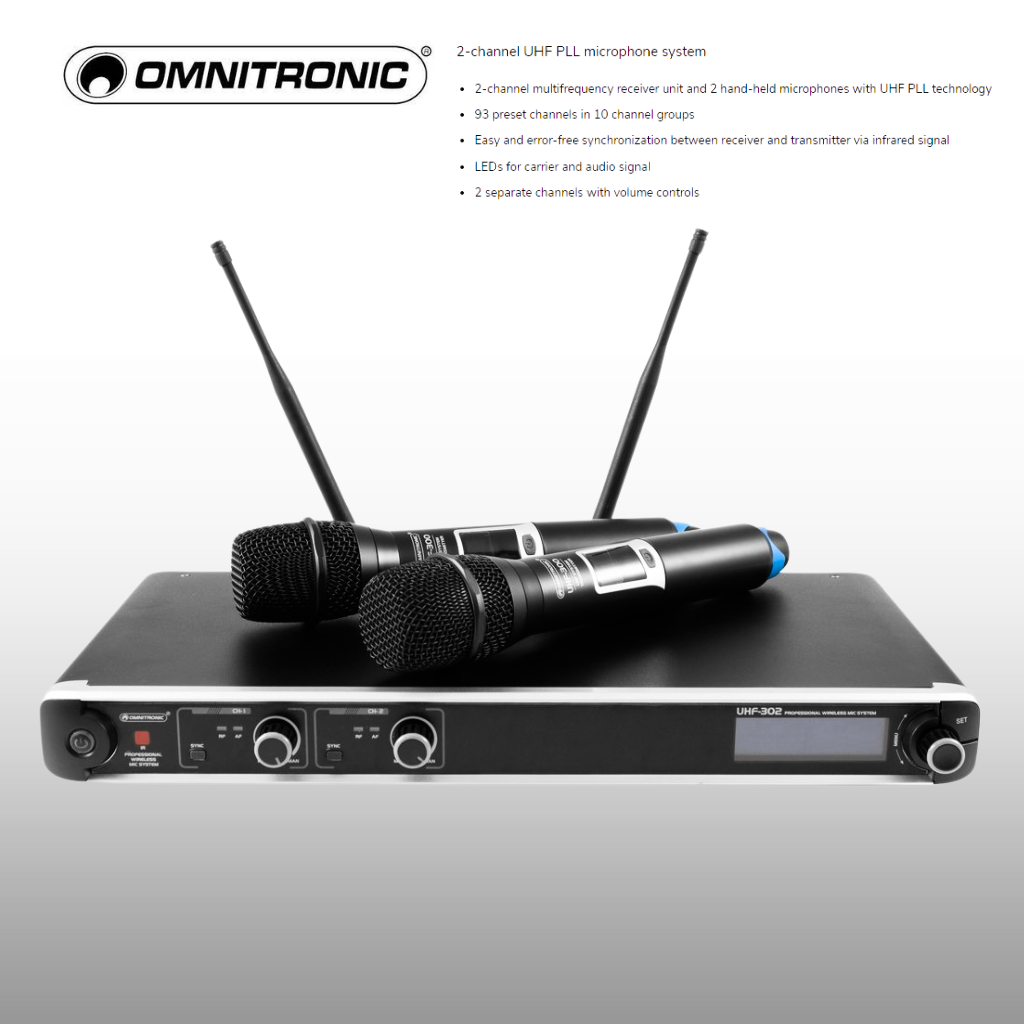

Omntronic UHF-302 wireless microphone system

Type: Wireless set
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection: 93 Switchable frequencies
Modulation: FM; PLL technology
Frequency stability: ±
Range: Range up to 60m with line-of-sight
Weight: 2,30 kg

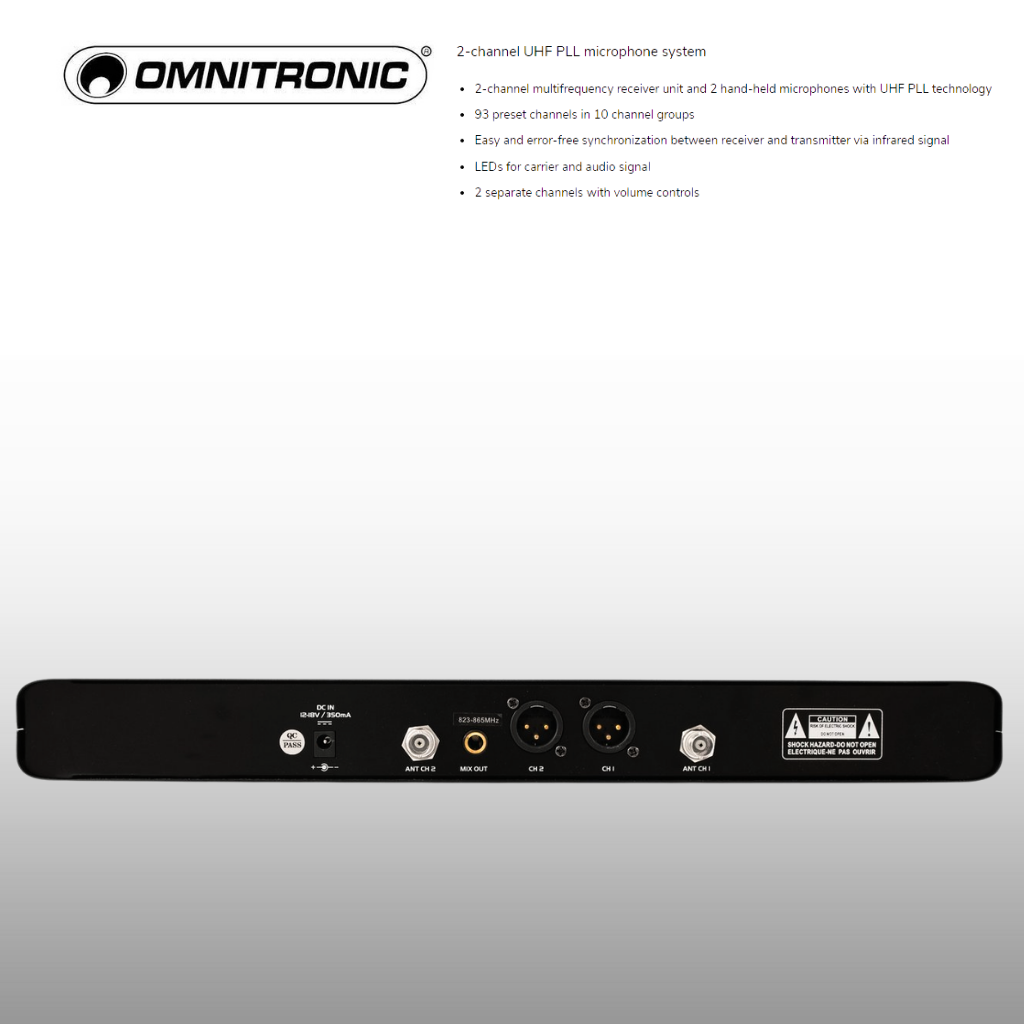

Receiver
Power supply: 100-240 V AC, 50/60 Hz
14 V DC 350 mA
Power consumption: 4 W
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels: 2
Frequency range: 50 - 18,000 Hz
S/N ratio: >80 dB
THD: <0,5 % at 1 kHz
Display type: LCD display
Display: Chanal , frequency , goup
Control elements: Power switch, level control, encoder
Connections: Input: antenna via 2 x BNC (F)
Output: line via 1 x 6.3 mm plug (unbal.)
Output: Microphone via 2 x 3-pin XLR
Material: Metal
Housing design: Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions: Width: 41 cm
Depth: 23,5 cm
Height: 4,7 cm
Microphone
Type: Hand-held transmitter
Power supply: 3 V DC
Power connection: Battery/battery pack
Capsule type: Dynamic
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Display type: LCD display
Display: Frequency , charge status indicator
RF power output: 10 mW
Switch: On/off switch
Material: Plastic
Dimensions: Length: 25 cm
Diameter: Ø 5,2 cm
Weight: 230 g

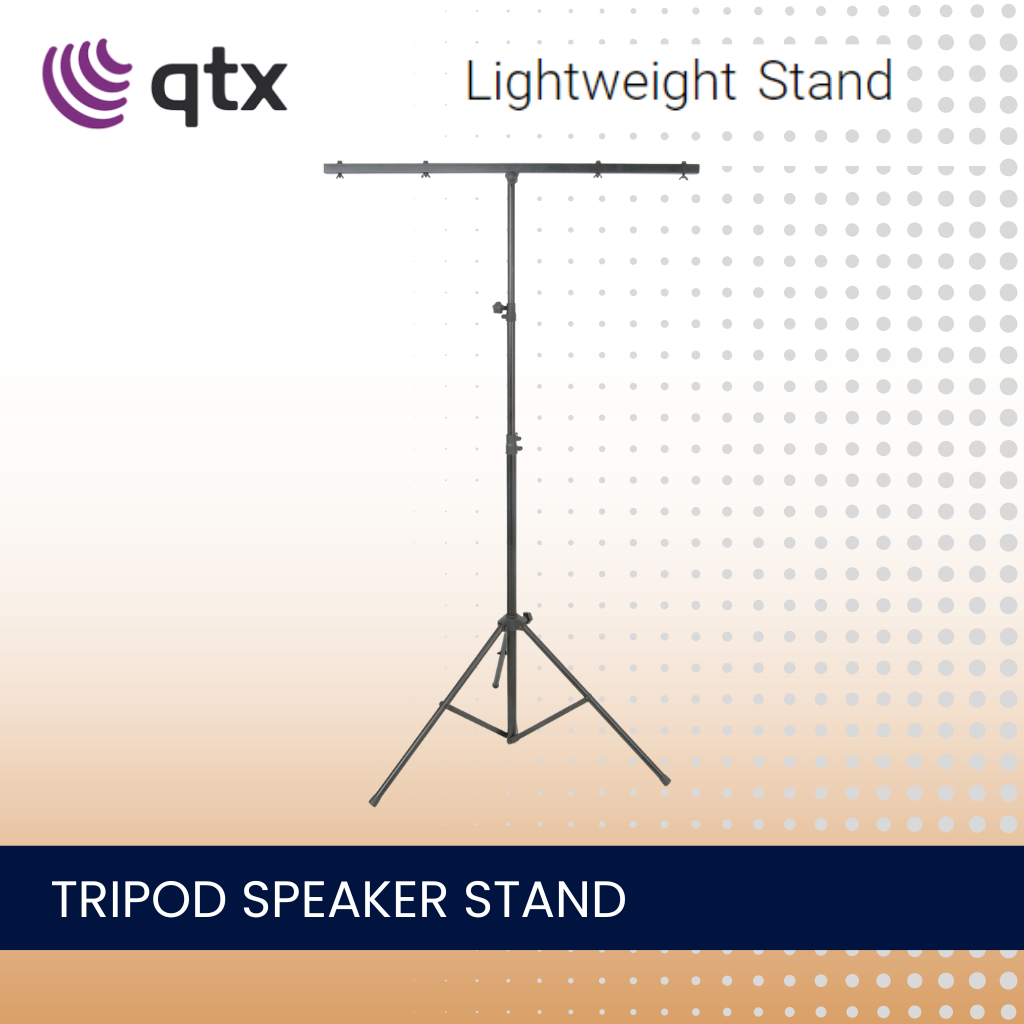

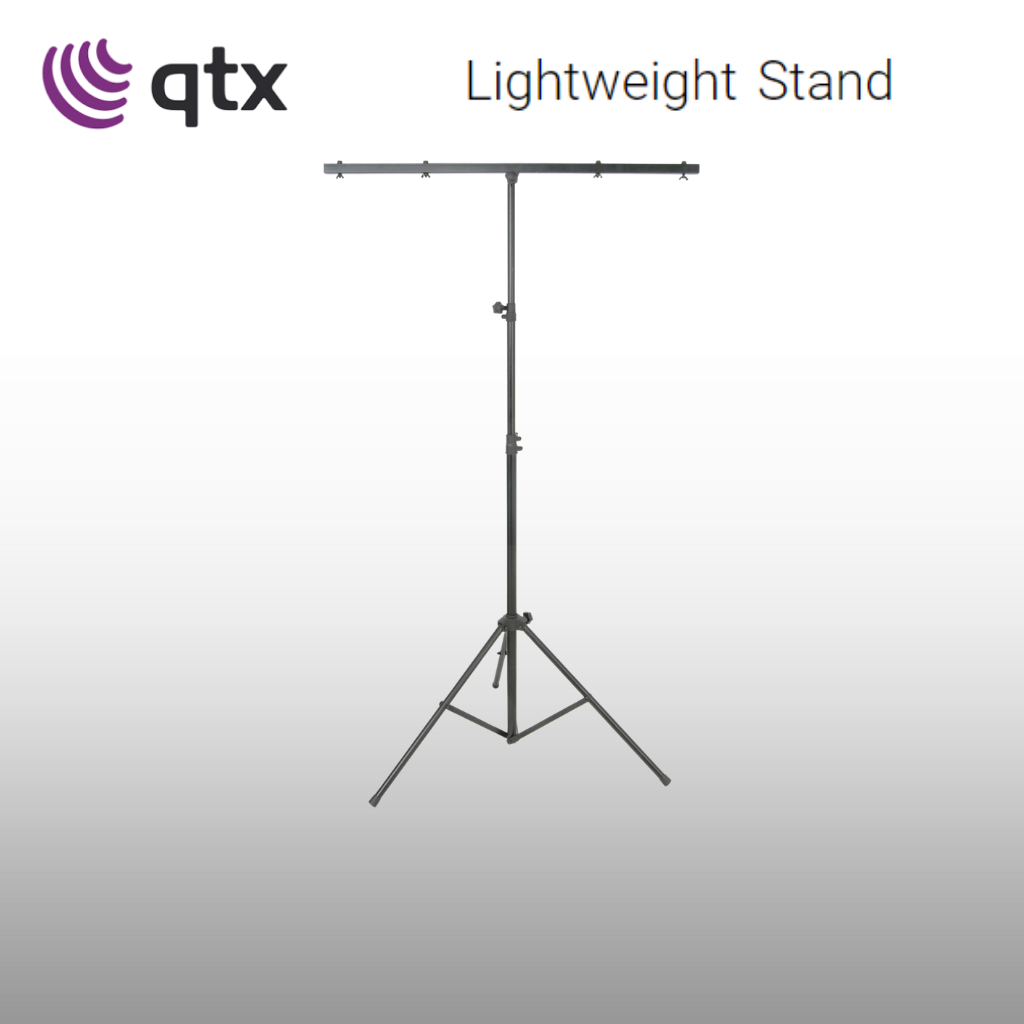

Speaker stand

Height max. 1200 - 2500mm
Max. weight load 30kg
Width : T-bar 1000mm
Dimensions : collapsed 1100 x 80 x 80mm
Weight 4kg

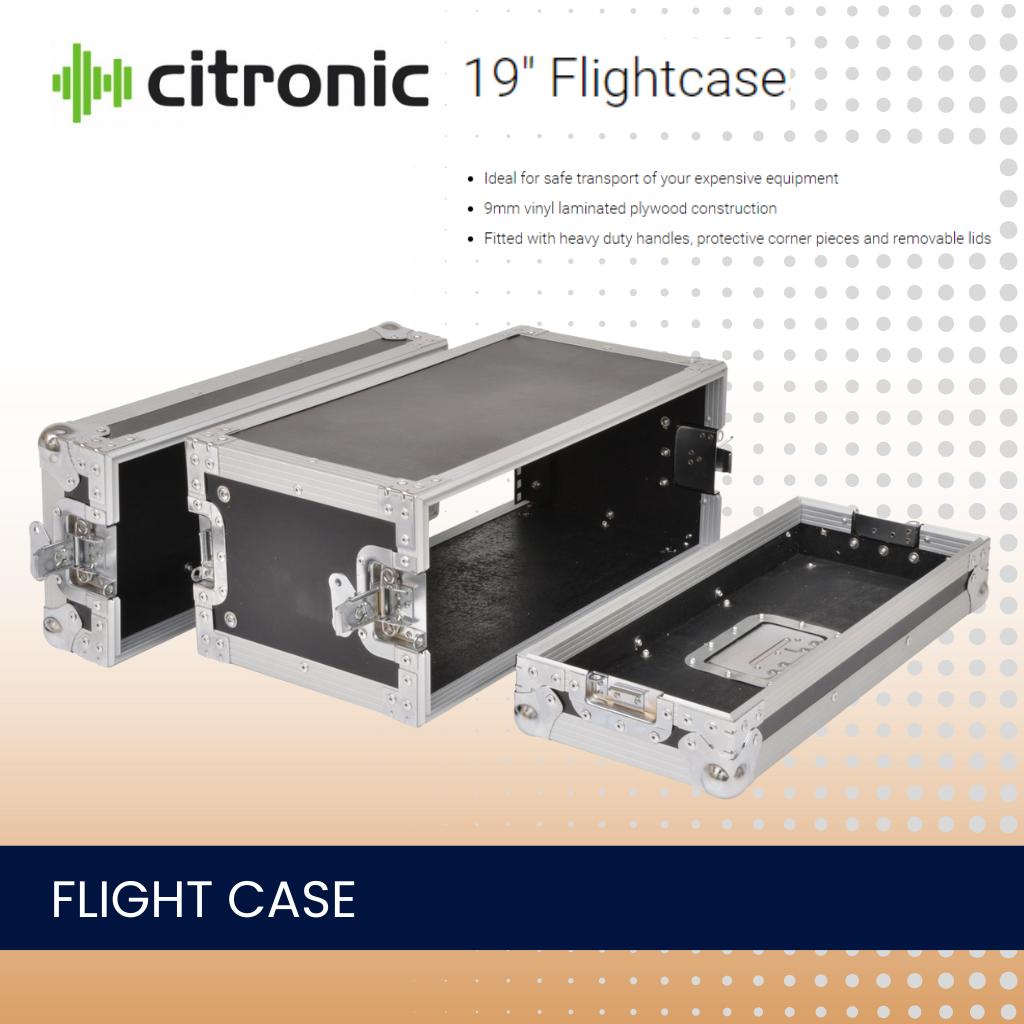

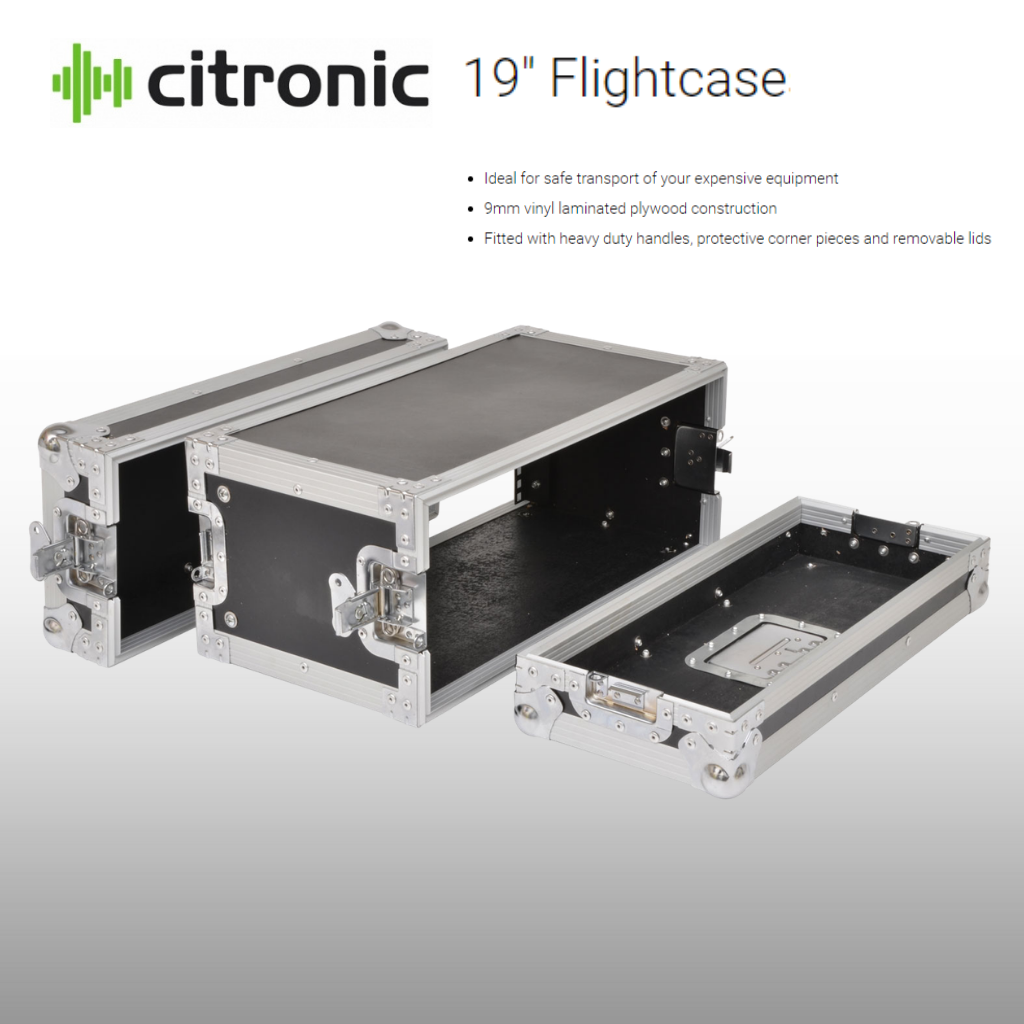

Flight case

Size 4U

External dimensions 635 x 230 x 535mm

Internal dimensions 460 x 190 x 500mm

Fixing rails Front

Weight 9kg
