Omnitronic EM-312 6 mono 3 stereo input mixer

Name: Omnitronic EM-312 6 mono 3 stereo input mixer
Brand: Commerical Audio Outlet
Price: 139.0 GBP
Availability: InStock

SKU:

£139.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

The EM-312 is a compact, rack-mounted 12-channel mixer featuring 6 mic/line combo inputs alongside 6 additional line inputs. It is equipped with XLR outputs, a 6.3 mm mono output, a stereo RCA recording output, and a 6.3 mm monitoring output specifically for the microphone section. The mixer provides individual volume controls for each input, in addition to a volume control for the mono output and a master volume control. It includes a 3-band equalizer and an adjustable priority function for microphone announcements via channel 1.

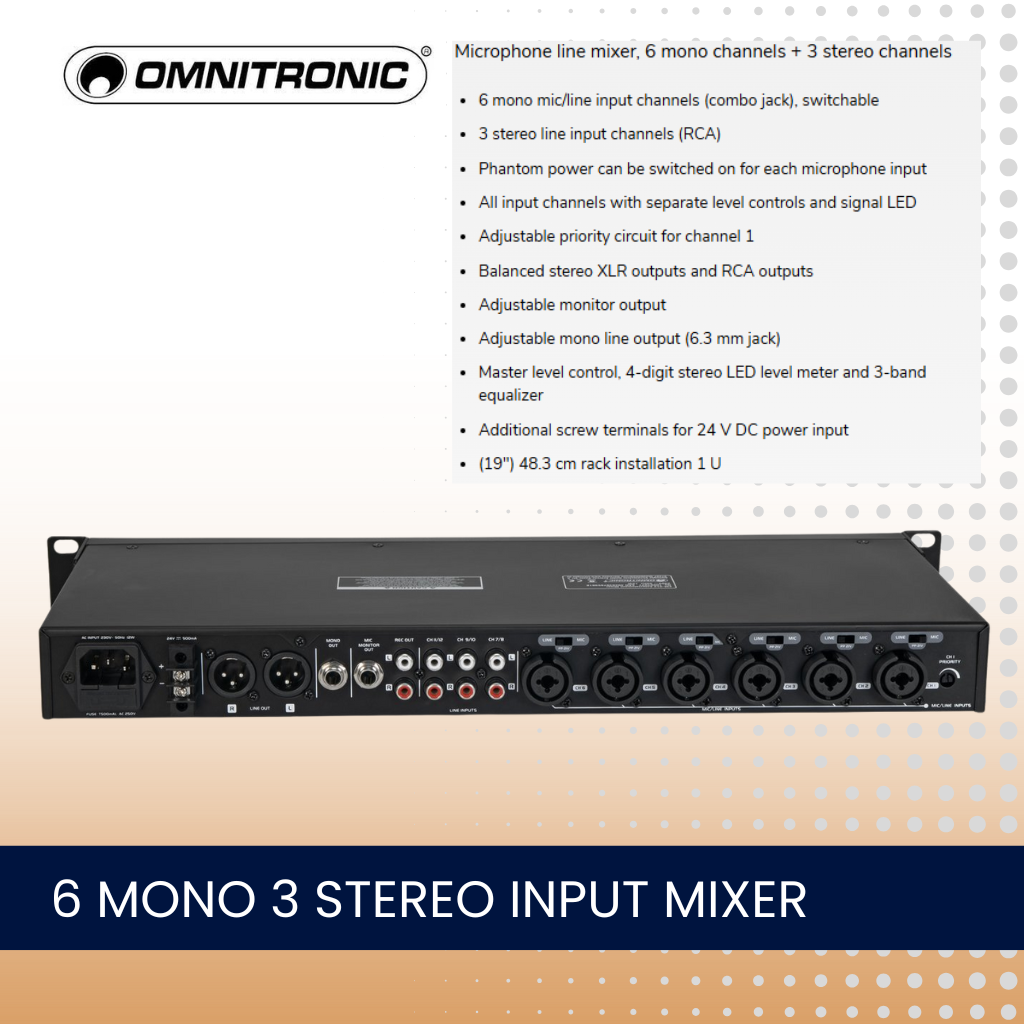

This microphone line mixer comprises 6 mono channels and 3 stereo channels. The 6 mono mic/line input channels utilize switchable combo jacks, while the 3 stereo line input channels are designed for RCA connections. Phantom power can be activated for each microphone input, and all input channels feature separate level controls along with signal LEDs. An adjustable priority circuit is available for channel 1. The mixer also offers balanced stereo XLR outputs and RCA outputs, an adjustable monitor output, and a mono line output via a 6.3 mm jack. Additional features include a master level control, a 4-digit stereo LED level meter, and a 3-band equalizer. Furthermore, it has screw terminals for a 24 V DC power input and is designed for 19" rack installation, occupying 1 U of space. This equipment is suitable for various applications, including installations in restaurants, bars, hotels, and clubs or dance schools.

Mixer Specification

Omnitronic EM-312 6 mono 3 stereo input mixer

Power supply: 230 V AC, 50 Hz
Or
24 V
Power consumption: 12 W
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Mains input via screw terminal
Device fuse: 5 x 20 mm, T 0,5 A fuse replaceable
Frequency range: 20 - 22000 Hz
S/N ratio: >103 dB
THD: <0,03 % at 1 kHz
Phantom power: 21 V DC or 18 V DC
Impedance: Input: mic/line 1,4 kOhm
Input: line 10 kOhm
Output: 120 Ohm
Control elements: Power switch, Input sensitivity switch, tone control, level control per channel, Master control
Status LED: Power, signal, master level meter, clip
Connections: Input: mic/line via 6 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 3 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: mono via 1 x 6.3 mm jack socket (mono) mounting version
Output: rec. via 1 x stereo RCA
Channels: Input chanel: 6 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz, Input sensitivity switch
Input chanel: 3 x stereo via RCA, channel control via rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
Master output: 1 x stereo via XLR, channel control via rotary dial
Master output: 1 x mono via jack, channel control via rotary dial
Max. level: Input: microphone -19 dBu
Input: line +21 dBu
Output: +21 dBu
Color: Black
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48,3 cm
Depth: 23 cm
Height: 4,45 cm
Weight: 3,04 kg
