Office & Call Centre Background Music Bluetooth System Up To 64 Speakers

Name: Office & Call Centre Background Music Bluetooth System Up To 64 Speakers
Brand: Commerical Audio Outlet
Price: 1449.0 GBP
Availability: InStock

Office & Call Centre Background Music Bluetooth System Up To 64 Speakers

SKU:

£1,449.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Speaker Colour White Black

Speakers 8 16 32 64

Optional Extras None Internet Media Player

Product variants

Quantity

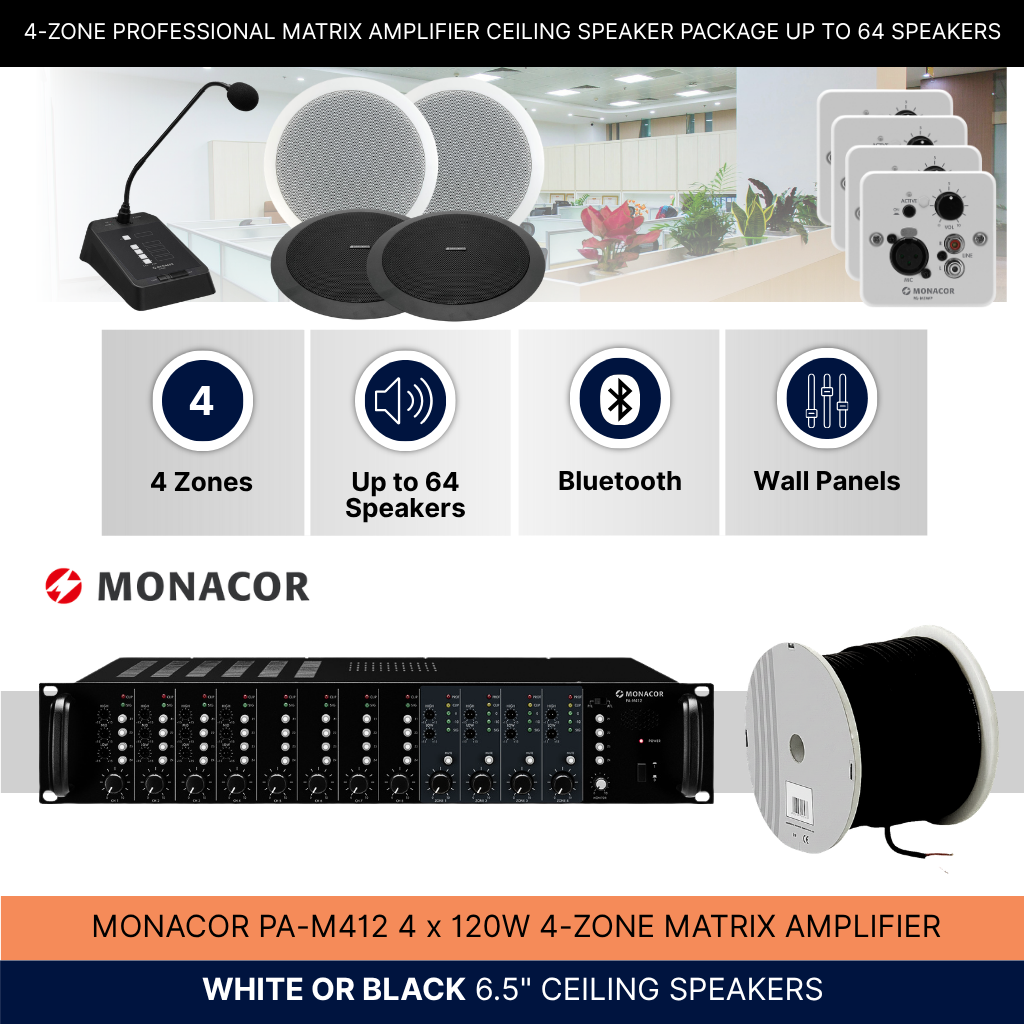

Introducing our top-notch ceiling speaker background music system, designed to deliver high-quality audio at a budget-friendly price.

Our professional 4-zone matrix amplifier, which easily mounts in a rack, features intuitive controls and supports both LINE and MIC inputs for versatile connectivity.

Select from an impressive range of 8 to 64 high-quality flush-mount ceiling speakers available in white or black. These speakers are engineered to produce clear, vibrant sound while seamlessly integrating into any environment.

The package comes complete with 4 wall modules, allowing for easy local connection of LINE or MIC sources and providing zonal volume control.

Additionally, we’ve included a paging microphone for convenient zonal announcements.

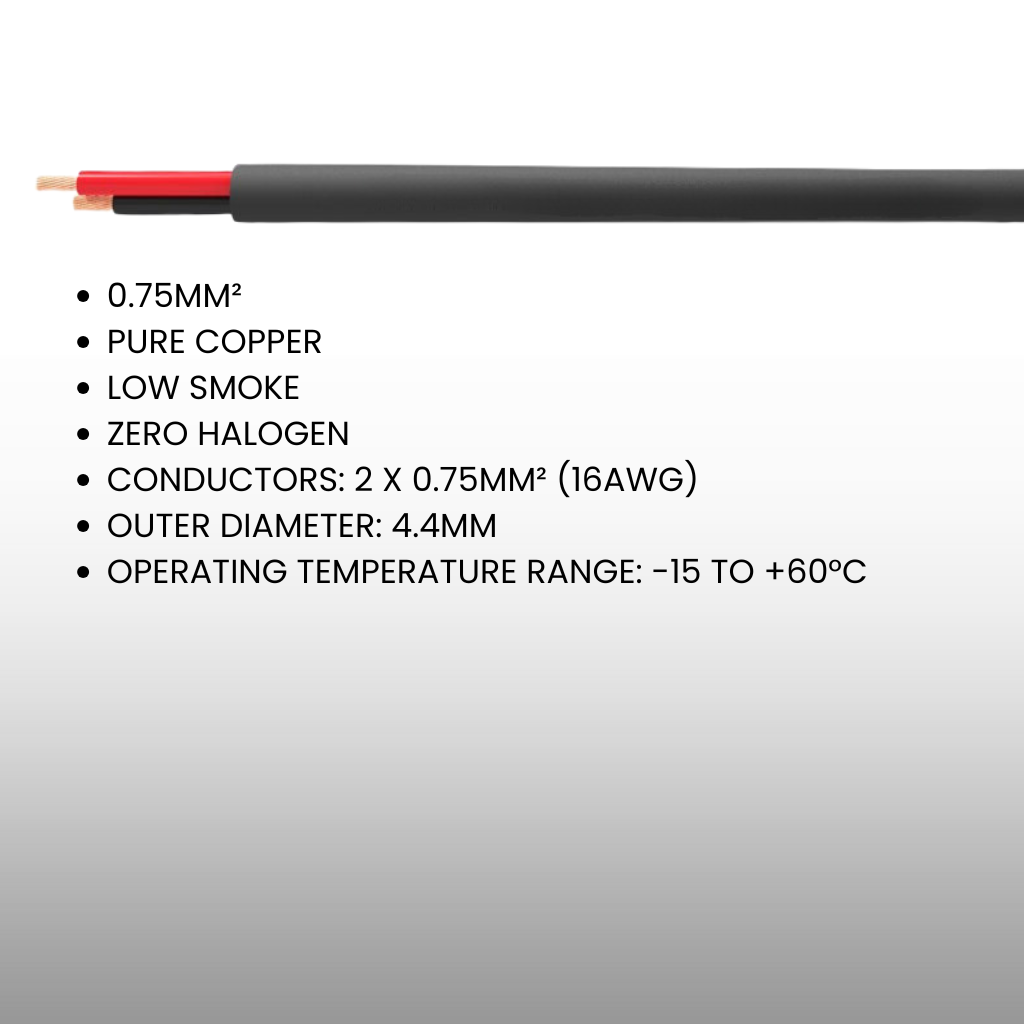

For effortless installation, we've provided 100 meters of 0.75mm² pure copper low smoke zero halogen 2-core insulated speaker cable.

Add an optional internet media player to stream and Bluetooth music to your system.

Features

High quality professional background music system
Affordable price
Rack mountable 4-zone matrix amplifier
LINE and MIC inputs
Local source connection
Zonal volume control
Zonal announcements
High quality flush mount ceiling speakers
0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

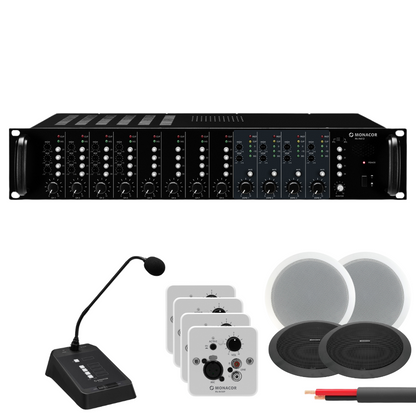

Included

Monacor PA-M412 4-zone matrix amplifier
8 to 64 Fonestar GAT-601 (white) or Omnitronic CS-6 (black) flush-mount speakers
4 Monacor PA-M1WP wall panels
Monacor PA-M4RC paging microphone
100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Optional Extras

ZZiPP ZZONE-IR internet media player

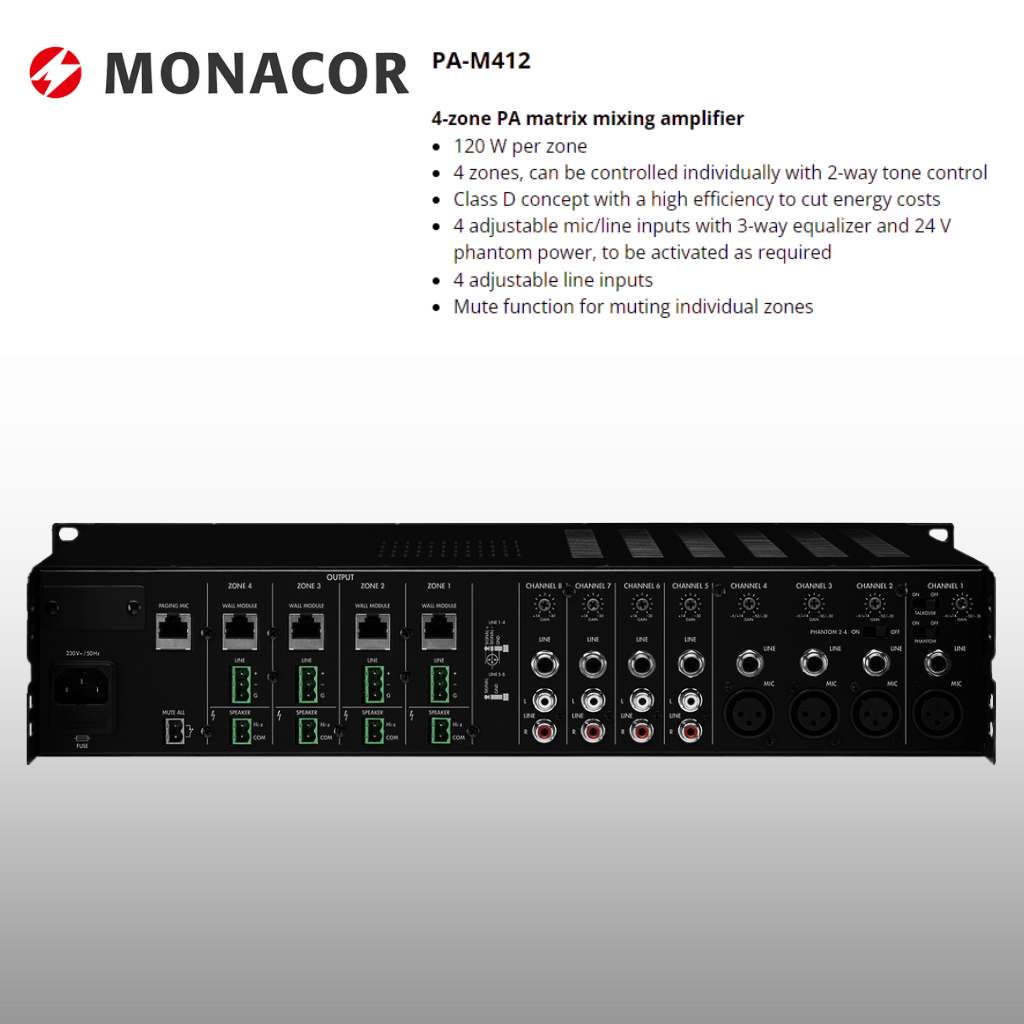

Amplifier Specification

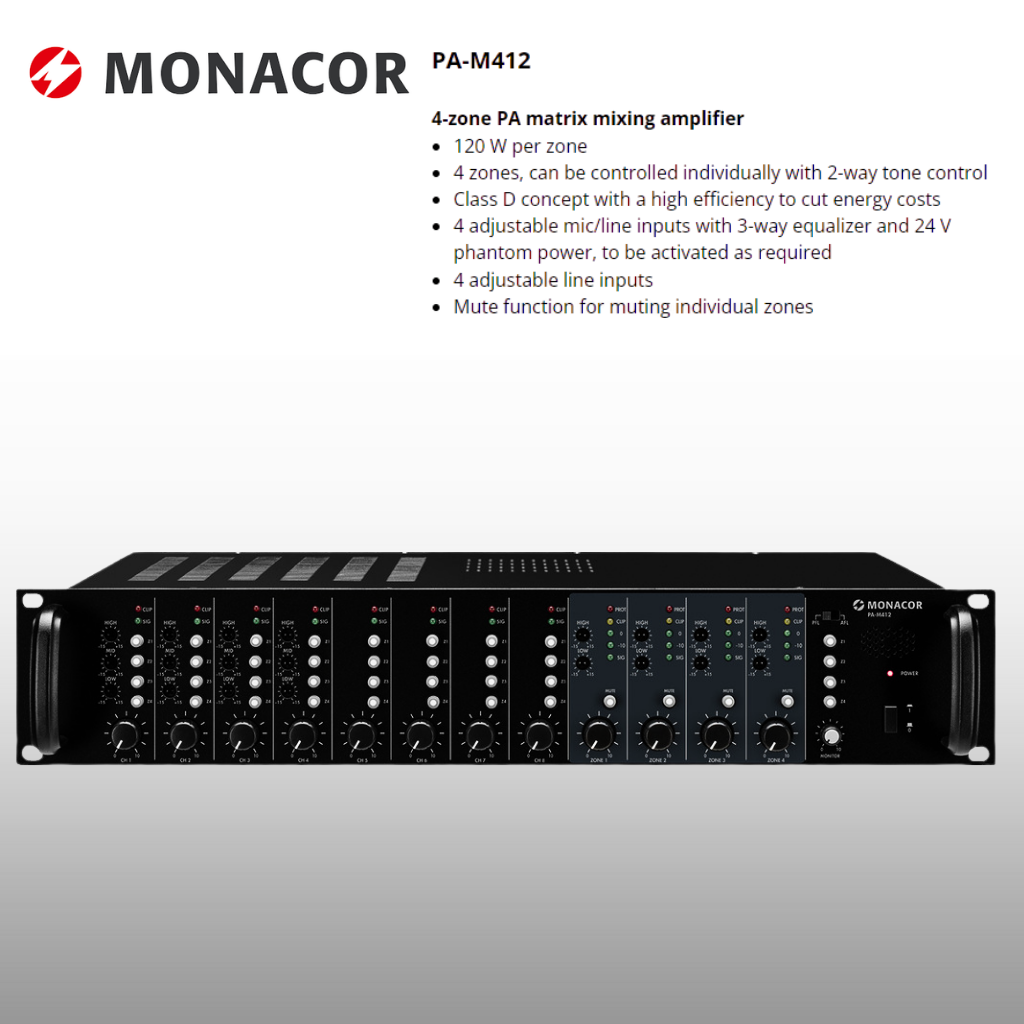

Monacor PA-M412 4-zone matrix amplifier

Peak output power 4 x 170 W
Power rating 4 x 120 W
Channels 8
Zones 4
Inputs 2.5 mV/20 kΩ (mic),
2 V/20 kΩ (line)

Frequency range 20-20,000 Hz
Equalizer bass ±12 dB/80 Hz (channels 1-4)
±15 dB/80 Hz (zones 1-4)

Equalizer midrange ±12 dB/2.5 kHz (channels 1-4)
Equalizer treble ±12 dB/12.5 kHz (channels 1-4)
±15 dB/12 kHz (zones 1-4)

S/N ratio > 70 dB
THD < 0.1%
Phantom power 24 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 860 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 88 mm
Depth 320 mm
Rack units, RU 2
Weight 6.2 kg
Connections 4 x XLR, bal. (mic 1-4),
4 x 6.3 mm jack (line 1-4),

4 x 6.3 mm jack (line 5-8),

4 x RCA L/R (line 5-8),

1 x RJ45 (push-to-talk microphone),

4 x RJ45 (remote in),

screw terminal (speakers)

Packing dimensions (W x H x L) 0.4 x 0.53 x 0.17 m
Gross weight 7.37 kg
Net weight 6.21 kg

Speaker Specification

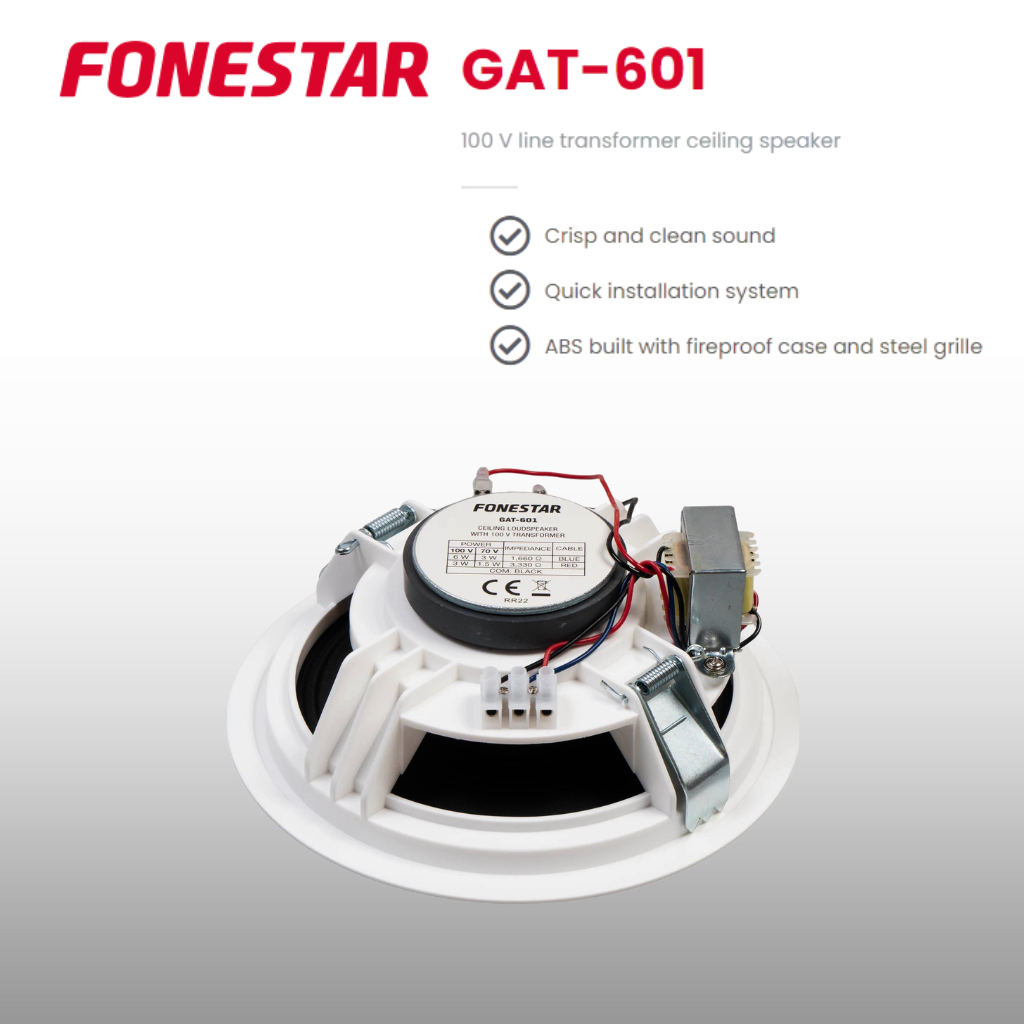

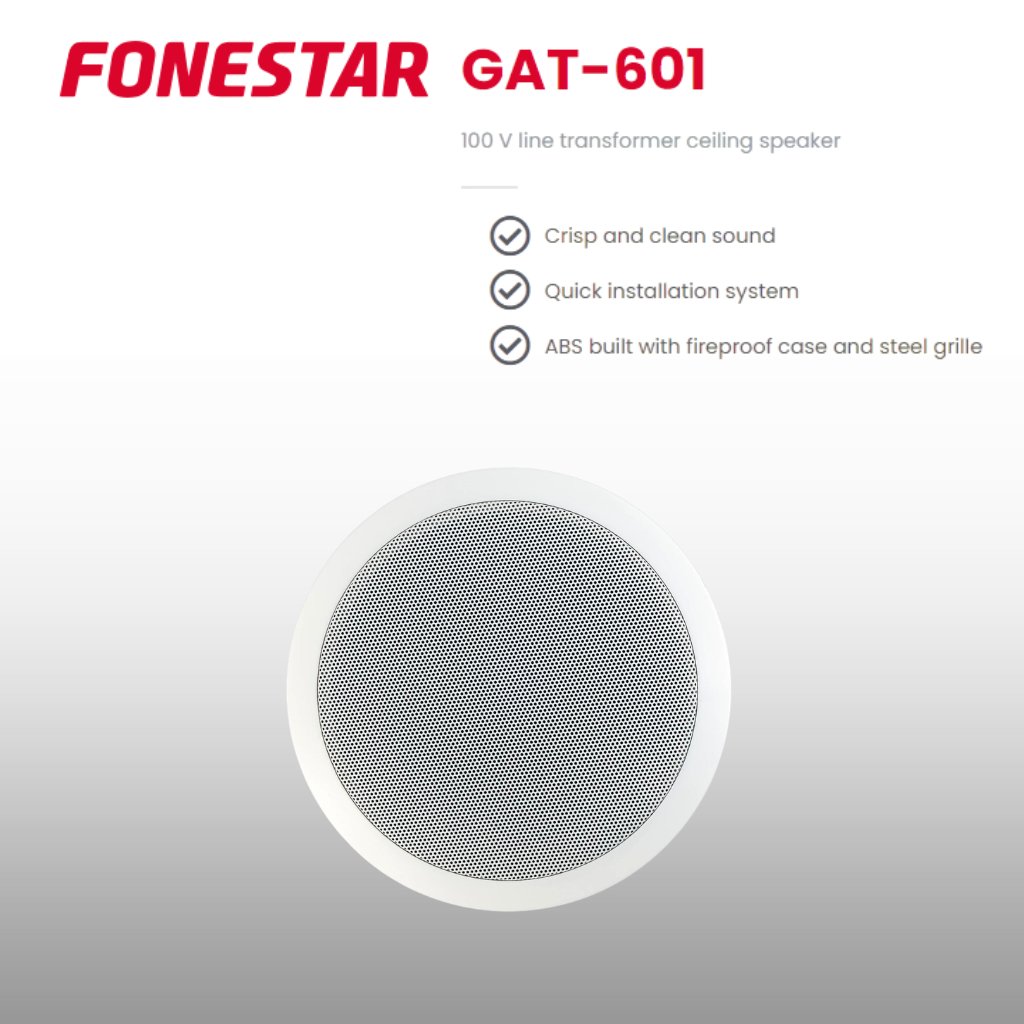

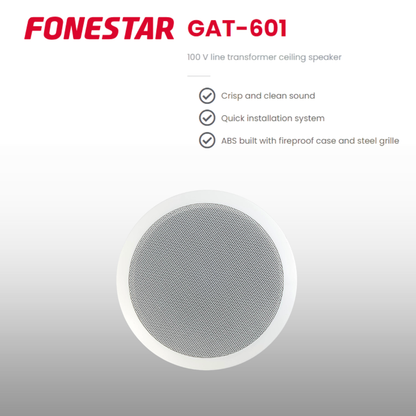

Fonestar GAT-601 flush-mount speakers (white)

FEATURES: Ceiling loudspeaker with 100 V line transformer and round grille.
POWER: 10 W maximum, 6 W RMS
LOUDSPEAKERS: 6 ½" double cone
RESPONSE: 140-20,000 Hz
IMPEDANCE: 6 W RMS@100V (1,660 Ω)
3 W RMS@100V (3,330 Ω)
SENSITIVITY: 92 dB ±3 dB at 1 W/1 m
MATERIAL: ABS and steel grille
COLOUR: White (RAL 9003)
DIMENSIONS: 188 mm Ø x 80 mm depth
HOLE: 168 mm Ø
WEIGHT: 0.6 kg
: Rapid installation system

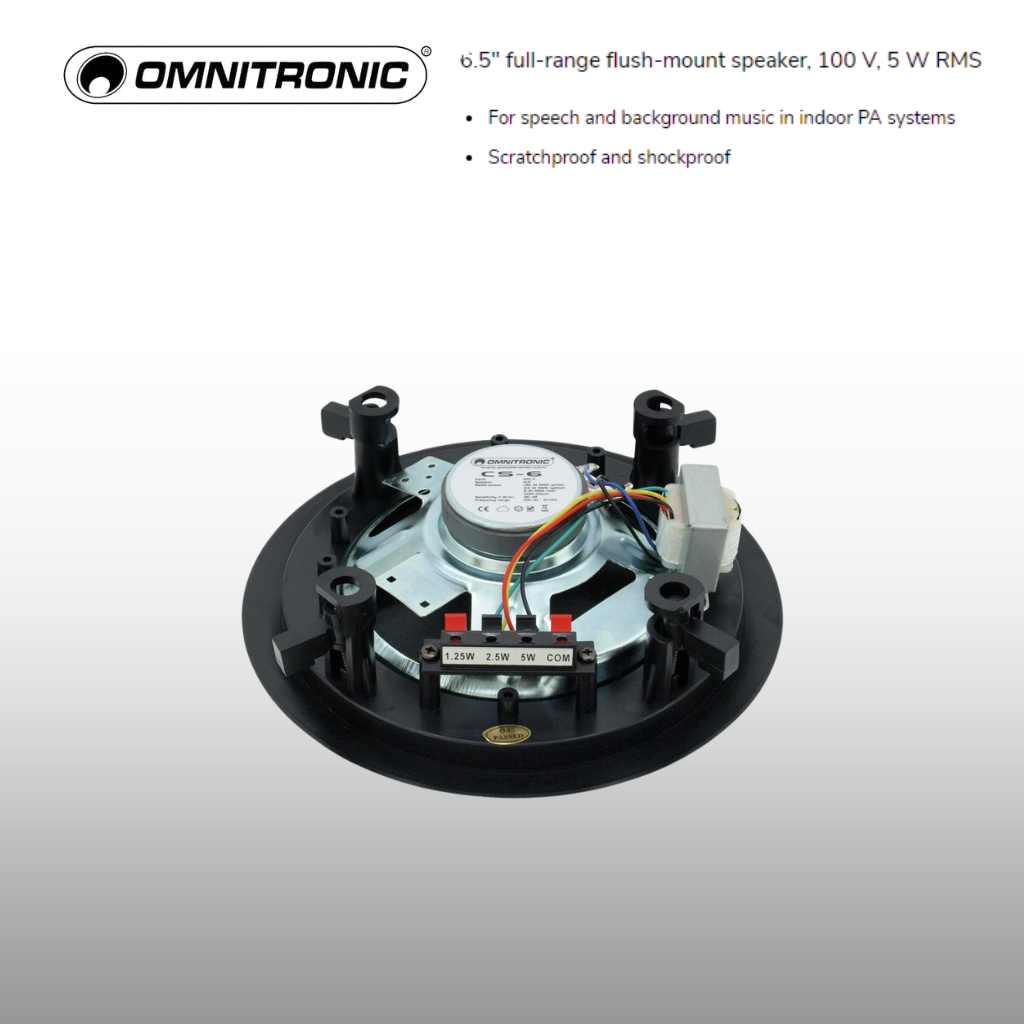

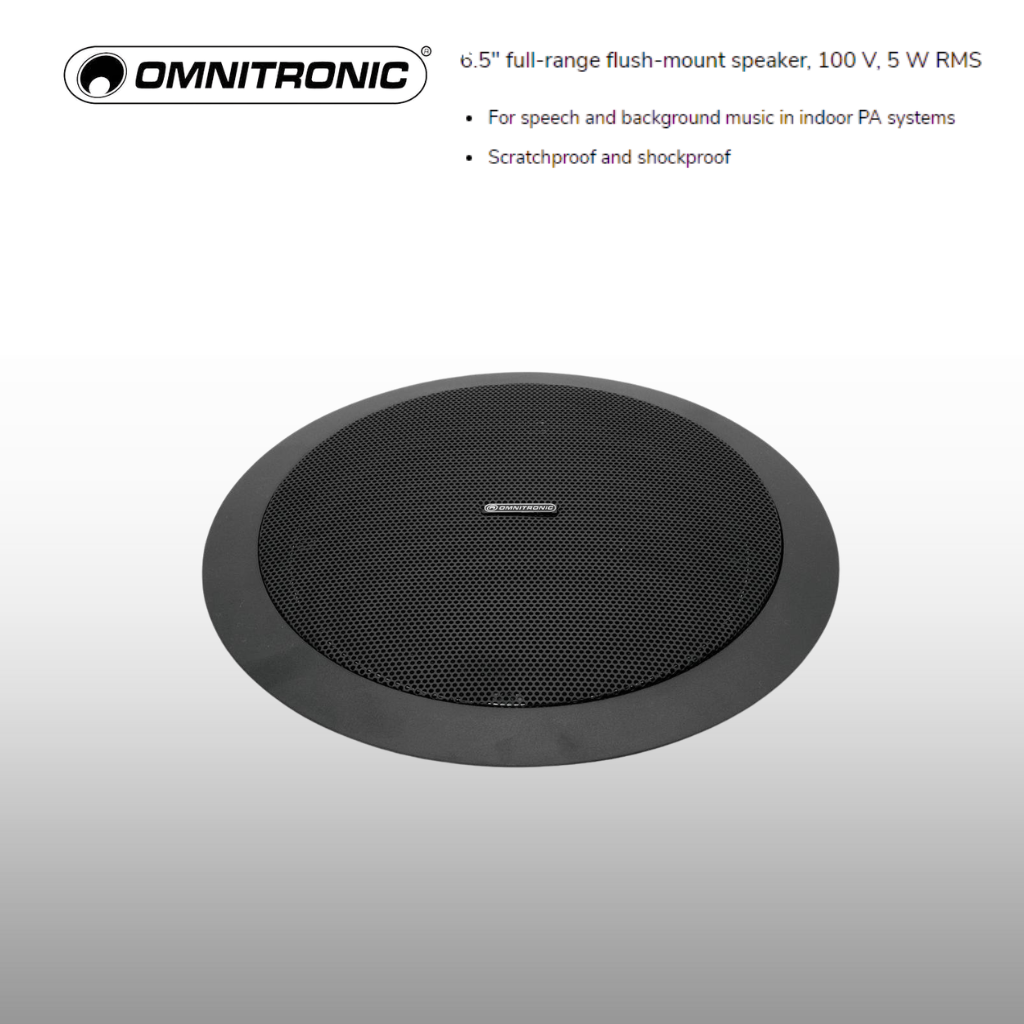

Omnitronic CS-6 ceiling speakers (black)

Power: Program: 10W
Rated: 5W RMS
Frequency range: 100 - 10000 Hz
Sensitivity: 90 dB (1W/1m)
Impedance: Public address systems 100V
Power tapping: 1,25W; 2,5W; 5W RMS via Spring terminal switchable
Speaker: 1 x woofer (6.5") approx. 17 cm
Type of speaker: Flush-mount speaker
Material: ABS Acrylonitrile butadiene styrene
Color: White, scratchproof and shockproof
Mounting dimensions: Ø 19,5 cm
Dimensions: Depth: 7 cm
Diameter: Ø 23 cm
Weight: 890 g

Wall Panel Specification

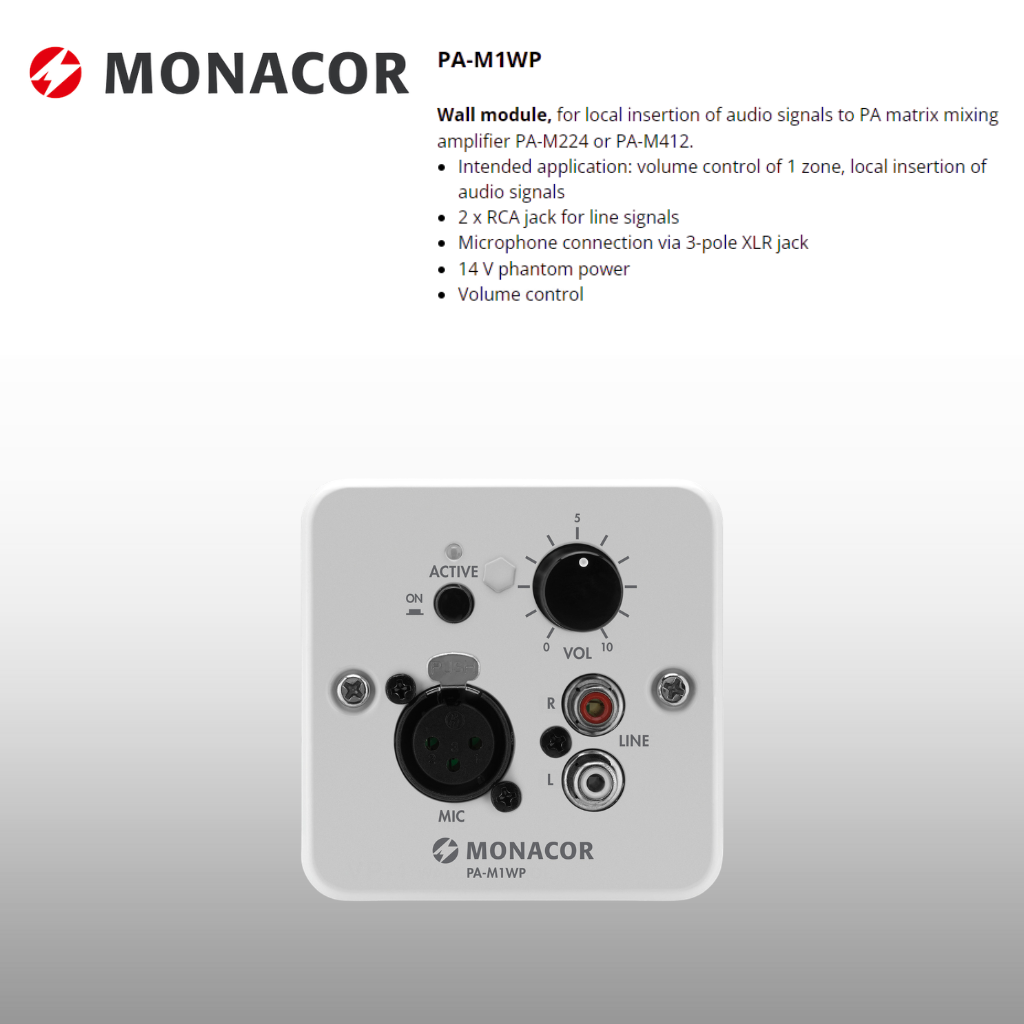

Monacor PA-M1WP wall panel

Description wall module
Type remote control of 1 zone
Colour white
Material plastic
Suitable for PA-M224, PA-M412
Power supply via PA-M224, PA-M412
Dimensions 80 x 80 x 50 mm
Weight 90 g
Connections 1 x XLR (microphone),
1 x RCA L/R (line),

1 x RJ45

Other features 14 V phantom power
Packing unit 1
Packing dimensions (W x H x L) 0.09 x 0.09 x 0.085 m
Gross weight 0.135 kg
Net weight 0.09 kg

Paging Microphone Specification

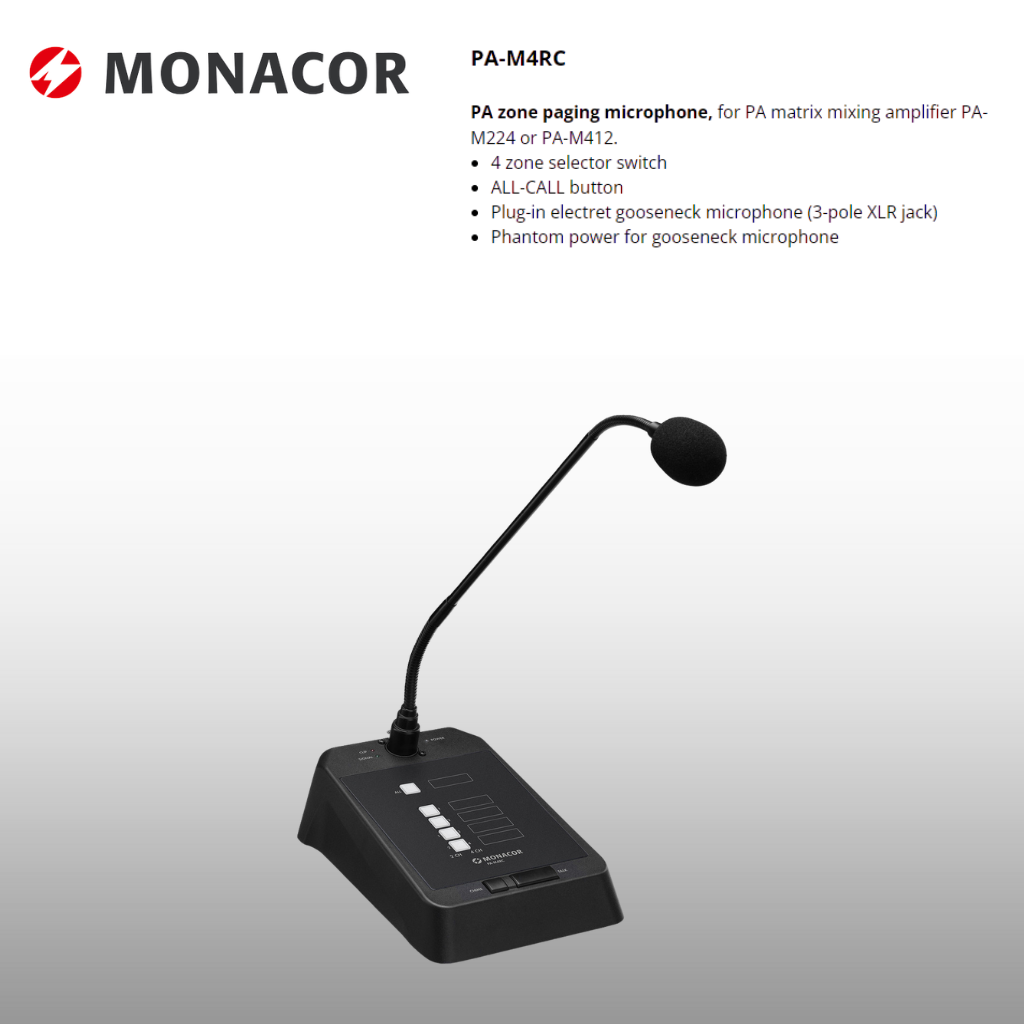

Monacor PA-M4RC paging microphone

Description PA zone paging microphone
Transmission method cable
System electret
Power supply via PA-M224, PA-M412
Audio frequency range 45-15,000 Hz
Sensitivity 1 mV/Pa
Gooseneck length 420 mm
Admiss. ambient temp. 0-40 °C
Dimensions 140 x 65 x 205 mm
Weight 860 g
Connection RJ45
Packing dimensions (W x H x L) 0.1 x 0.21 x 0.35 m
Gross weight 1.09 kg
Net weight 0.86 kg

Internet Media Player Specification

ZZiPP ZZONE-IR internet media player

Wi-Fi internet radio with FM, DAB, DAB+ reception
Wi-Fi 802.11b/g/n at 2.4 GHz and RJ45 Ethernet connector
Bluetooth receiver for audio streaming
2.4" TFT display with adjustable backlight
Supports UPnP and DLNA
Security protocols: WEP/WPA/WPA2
Shutdown timer and dual alarm
External wireless antenna for extended range
Analog RCA output
Optical (Toslink) and coaxial output
Headphone output
Remote control
Dimensions: 430 x 243 x 48mm
Weight: 2.5kg
