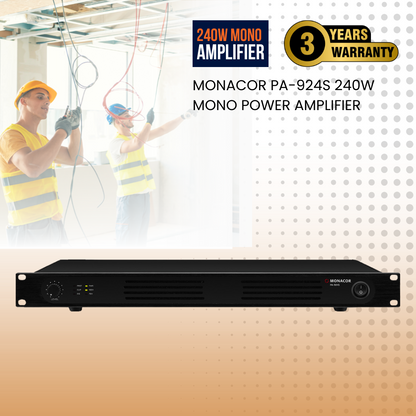

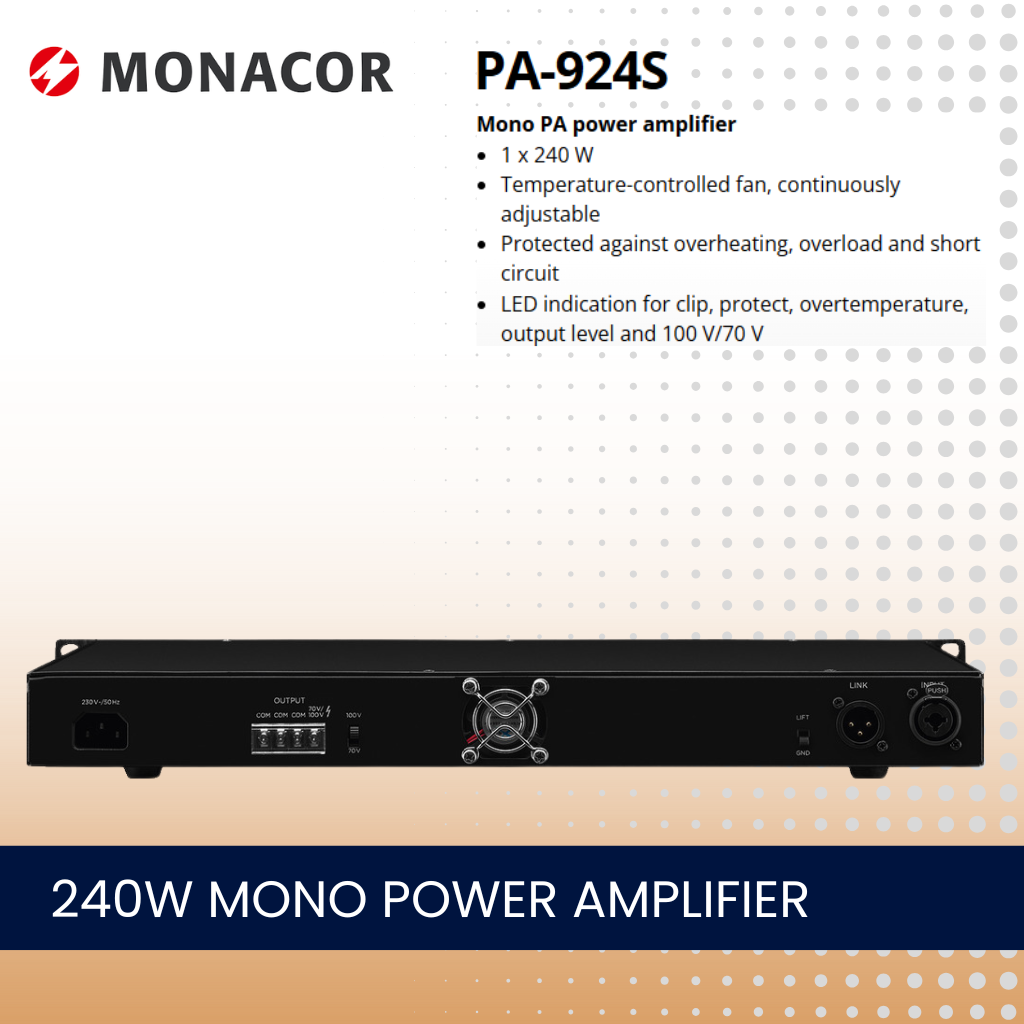

Monacor PA-924S 240W mono power amplifier
Peak output power 240 W
Power rating 240 W
Power rating at 4 Ω 240 W
Power rating at 100 V 240 W
Power rating at 70 V 240 W
Output impedance 70 V/20 Ω, 100 V/40 Ω
Channels 1
Inputs 650 mV/10 kΩ, balanced
Frequency range 80-16,000 Hz
S/N ratio > 98 dB(A)
THD < 1%
Power supply ˜ 230 V/50 Hz/495 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 495 VA
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 44 mm
Depth 255 mm
Rack units, RU 1
Weight 3.8 kg
Connections 1 x combo 6.3 mm/XLR (input),
1 x XLR (link),
screw contacts (speakers)
Packaging dimensions (W x H x L) 0.36 x 0.14 x 0.54 m
Gross weight 4.93 kg
Net weight 3.99 kg
