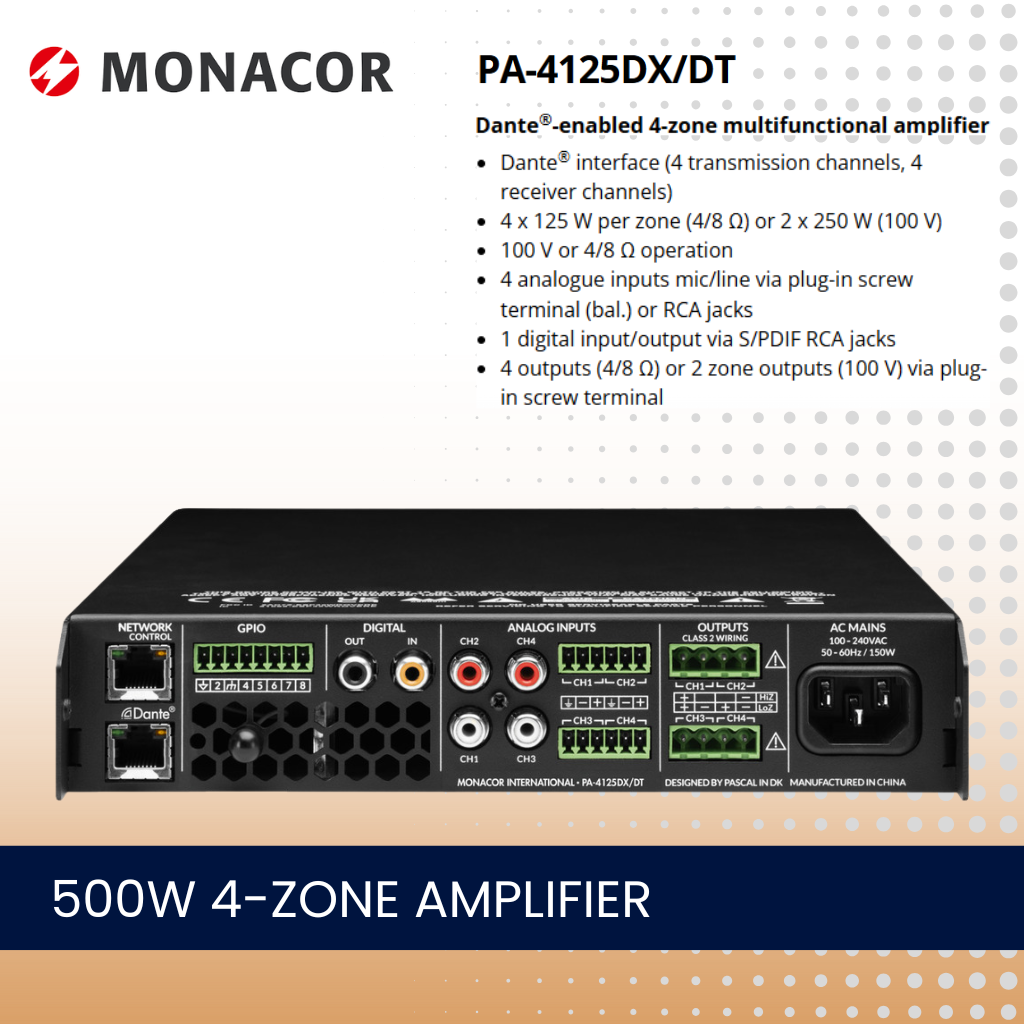

Monacor PA-4125DX/DT 4 x 125W 4-zone DANTE matrix amplifier

Name: Monacor PA-4125DX/DT 4 x 125W 4-zone DANTE matrix amplifier
Brand: Commerical Audio Outlet
Price: 995.0 GBP
Availability: InStock

SKU:

£995.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Dante^® is a network protocol based on layer 3 IP technology which provides a low-latency, high-precision and cost-effective solution for point-to-point audio connections. Dante^® technology can be used for the transmission of high-precision clock signals and audio signals. It allows for complex ethernet routing to ensure a perfect sound effect, to solve problems resulting from complex cabling known from traditional audio transmissions and to reduce costs. There is no special configuration required for an integration into an existing network.

Dante^®-enabled 4-zone multifunctional amplifier

class D technology with DSP and professional features for general multi-room PA applications.
Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).

Dante^® interface (4 transmission channels, 4 receiver channels)
4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
100 V or 4/8 Ω operation
4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
1 digital input/output via S/PDIF RCA jacks
4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
GPIO interface for remote volume control and standby
Network connection via LAN or WLAN
Convenient operation and configuration via user interface HTML5
High-pass/low-pass filter with various filters
Parametric equalizer
Output with separate FIR filters
Speaker matching: 10 ms
Switchable output phase
Adjustable compressor/limiter
Adjustable delay
Mix inputs
Talkover with priority routing
Built-in sine wave noise generator
Parametric 5-band equalizer for input
Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload

Amplifier Specification

Monacor PA-4125DX/DT 4 x 125W 4-zone DANTE matrix amplifier

Peak output power 500 W
Power rating 500 W
Power rating at 4 Ω 4 x 125 W
Power rating at 8 Ω 4 x 125 W
Power rating at 100 V 2 x 250 W
Channels 5
Zones 4
Inputs 1.2 V, bal. (line), 1.9 mV, bal. (mic)
Integrated limiter yes
Equalizer bass via DSP
Equalizer midrange via DSP
Equalizer treble via DSP
S/N ratio > 106 dB
THD < 0.05%
Power supply ˜ 100-240 V/50-60 Hz/150 W
Mains voltage ~ 100-240 V
Mains frequency 50-60 Hz
Power consumption, operation 150 W, 1/8 output power
Power consumption, standby < 0.5 W
Admiss. ambient temp. 0-40 °C
Width 220 mm
Height 44 mm
Depth 320 mm
Rack units, RU 1
Weight 1.95 kg
Connections 4 x RCA line
plug-in screw terminals (mic/line)

2 x RCA (digital in/out)

plug-in screw terminals GPIO

plug-in screw terminals speakers

1 x RJ45 network connection

1 x RJ45 Dante®

Packaging dimensions (W x H x L) 0.3 x 0.09 x 0.5 m
Gross weight 2.8 kg
Net weight 2.16 kg
