Gym, Fitness Studio & Dance Class Background Music Bluetooth System Up To 64 Speakers

Gym, Fitness Studio & Dance Class Background Music Bluetooth System Up To 64 Speakers

£749.00
£749.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Speaker Colour
Speakers
Optional Extras

Transform your space with our premium ceiling speaker background music system, designed to deliver exceptional sound quality without breaking the bank.

Featuring a professional rack-mountable 4-zone matrix amplifier, this system is user-friendly and compatible with both LINE and MIC inputs.

Select from 4 to 64 high-quality flush-mount ceiling speakers, available in sleek white or black finishes. These speakers offer clear, crisp audio while seamlessly integrating into any environment.

We've included 20, 50, or 100 meters (depending on your package choice) of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable for straightforward installation.

For added convenience, you can integrate an optional Bluetooth receiver to easily stream music directly to your system.

Additionally, consider our optional desktop microphone for making clear announcements whenever needed.

Features

  • High quality professional background music system
  • Affordable price
  • Rack mountable 4-zone matrix amplifier
  • LINE and MIC inputs
  • High quality flush mount ceiling speakers

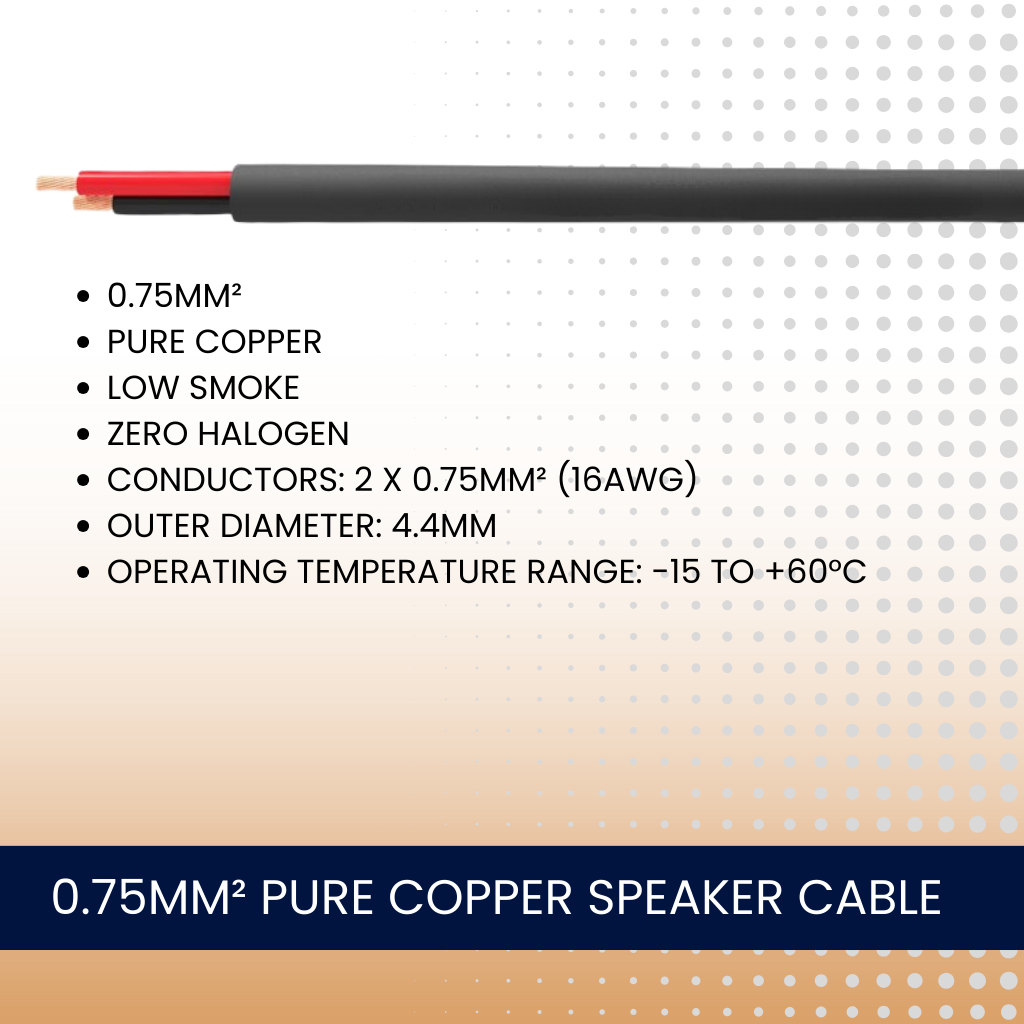

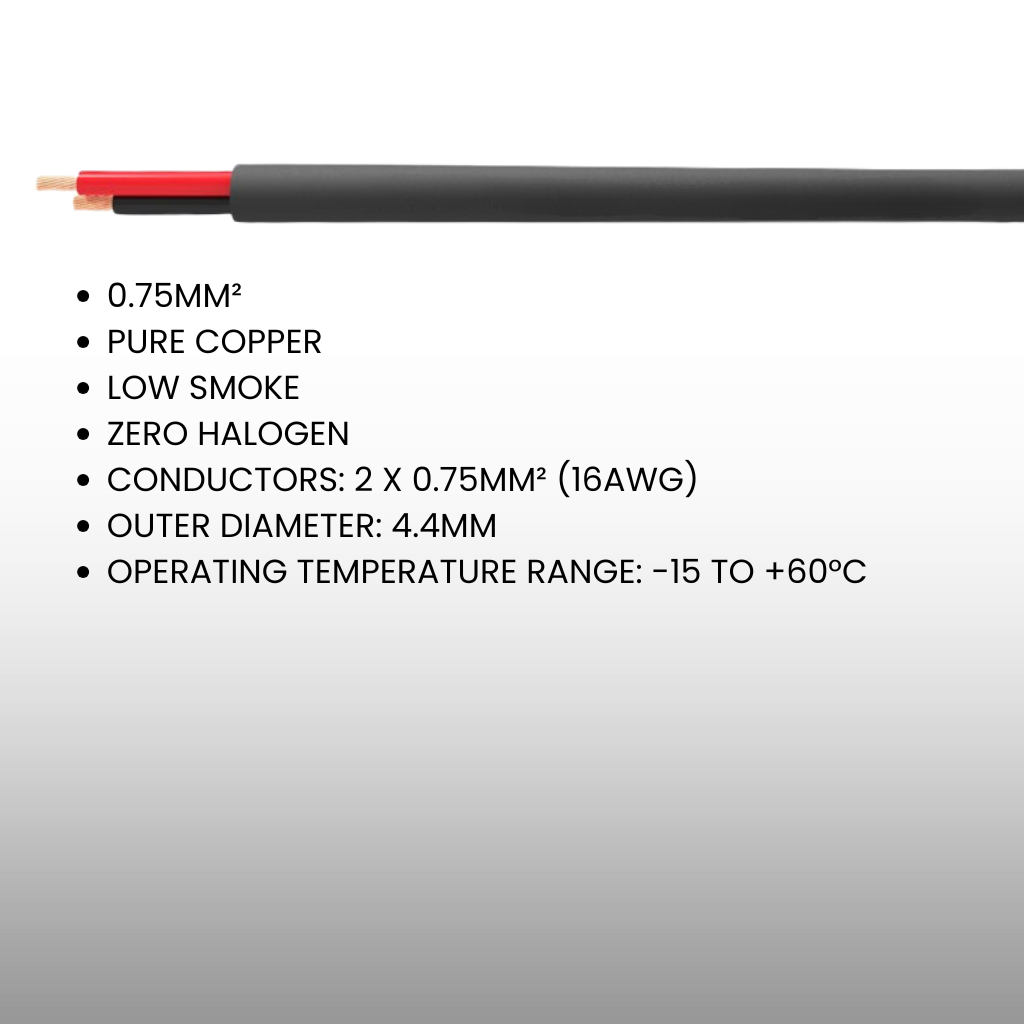

  • 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Included

  • Monacor PA-12040 4-zone matrix amplifier
  • 4 to 64 Fonestar GAT-601 (white) or Omnitronic CS-6 (black) flush-mount speakers
  • 20 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (4 speaker packages)
  • 50 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (8 speaker packages)
  • 100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (16 - 64 speaker packages)

Optional Extras

  • Monacor WSA-20BT Bluetooth receiver
  • Monacor PDM-300 desktop microphone

Amplifier Specification

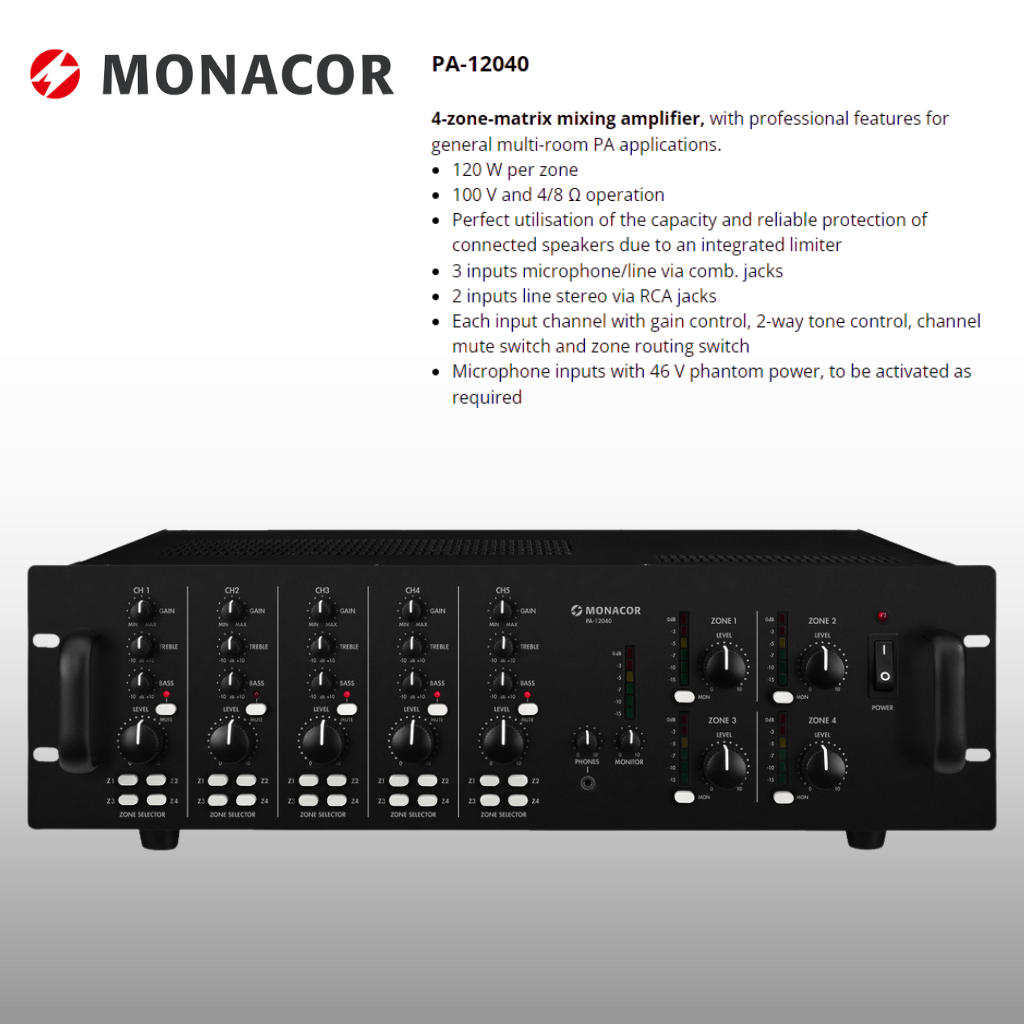

Monacor PA-12040 4-zone matrix amplifier

Peak output power 4 x 170 W
Power rating 4 x 120 W
Channels 5
Zones 4
Inputs 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line)
100 mV/30 kΩ (line)

40 mV/5 kΩ (tel. paging)

Frequency range 50-17,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB, mic
> 75 dB, line

THD < 1%
Phantom power 46 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,200 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 410 mm
Weight 20.5 kg

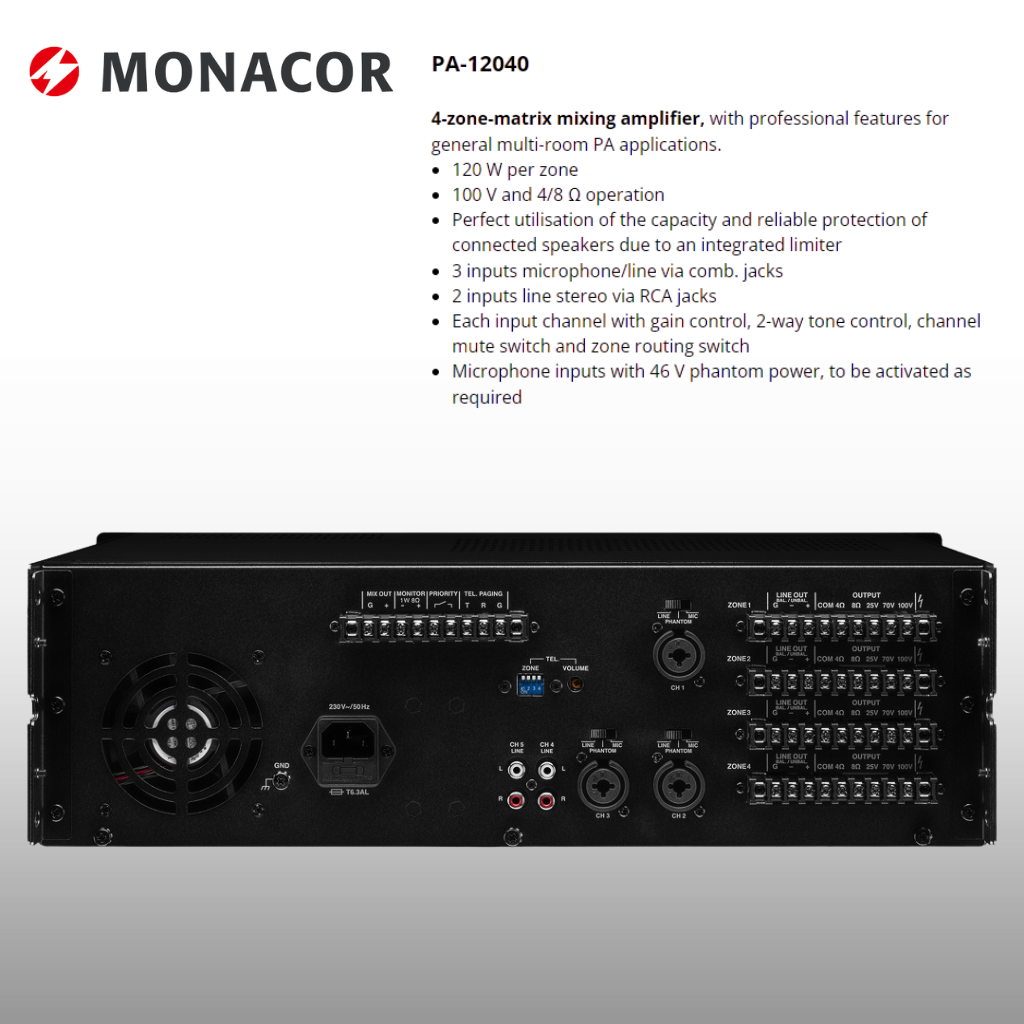

Connections 3 x combo jack/XLR, bal. (mic/line inputs)

2 x RCA L/R (line inputs)

3.5 mm jack (headphones)

screw contacts (paging),
screw contacts (priority),

screw contacts (zone outputs),

screw contacts (line outputs),

screw contacts (speakers)

Packing dimensions (W x H x L) 0.57 x 0.24 x 0.52 m
Gross weight 23.7 kg
Net weight 20.66 kg

Speaker Specifiation

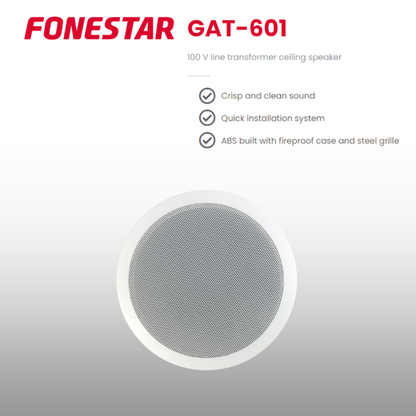

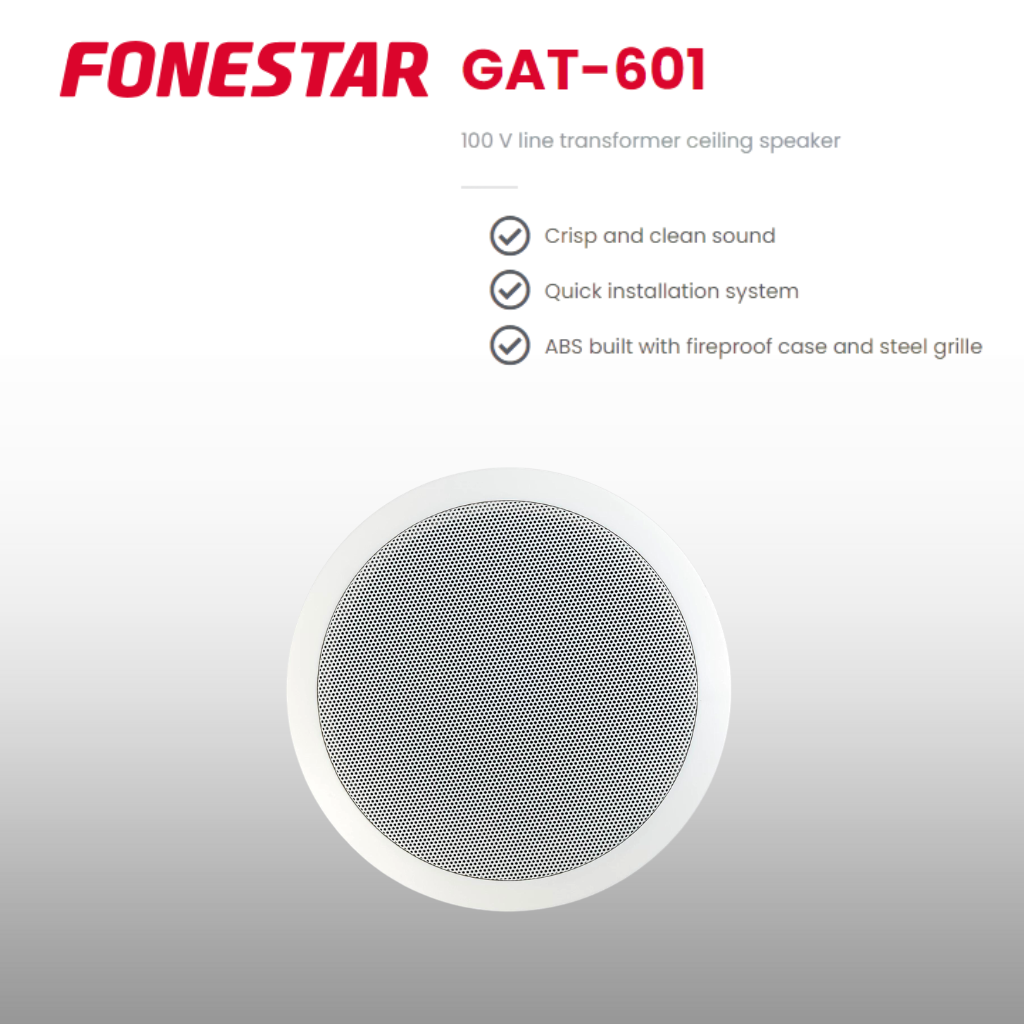

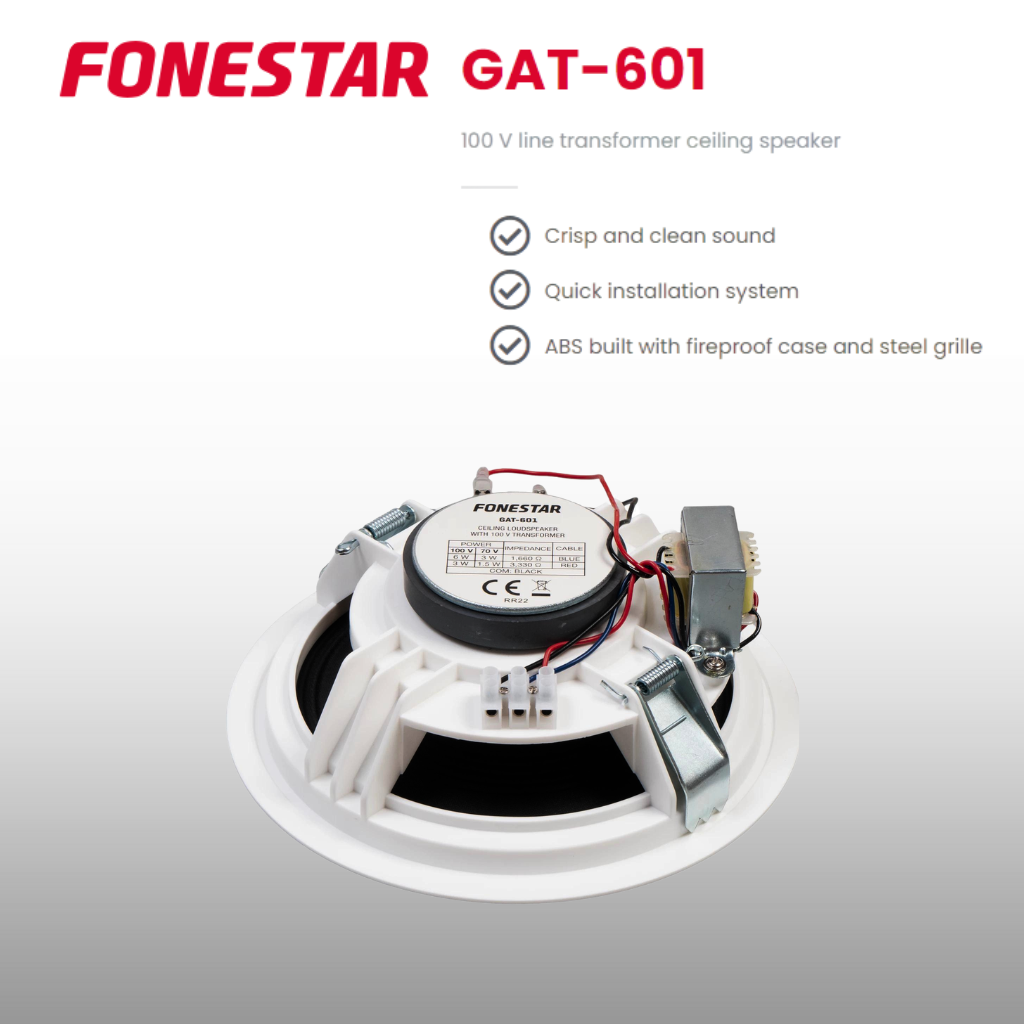

Fonestar GAT-601 flush-mount speakers (white)

FEATURES: Ceiling loudspeaker with 100 V line transformer and round grille.
POWER: 10 W maximum, 6 W RMS
LOUDSPEAKERS: 6 ½" double cone
RESPONSE: 140-20,000 Hz
IMPEDANCE: 6 W RMS@100V (1,660 Ω)
3 W RMS@100V (3,330 Ω)
SENSITIVITY: 92 dB ±3 dB at 1 W/1 m
MATERIAL: ABS and steel grille
COLOUR: White (RAL 9003)
DIMENSIONS: 188 mm Ø x 80 mm depth
HOLE: 168 mm Ø
WEIGHT: 0.6 kg
: Rapid installation system

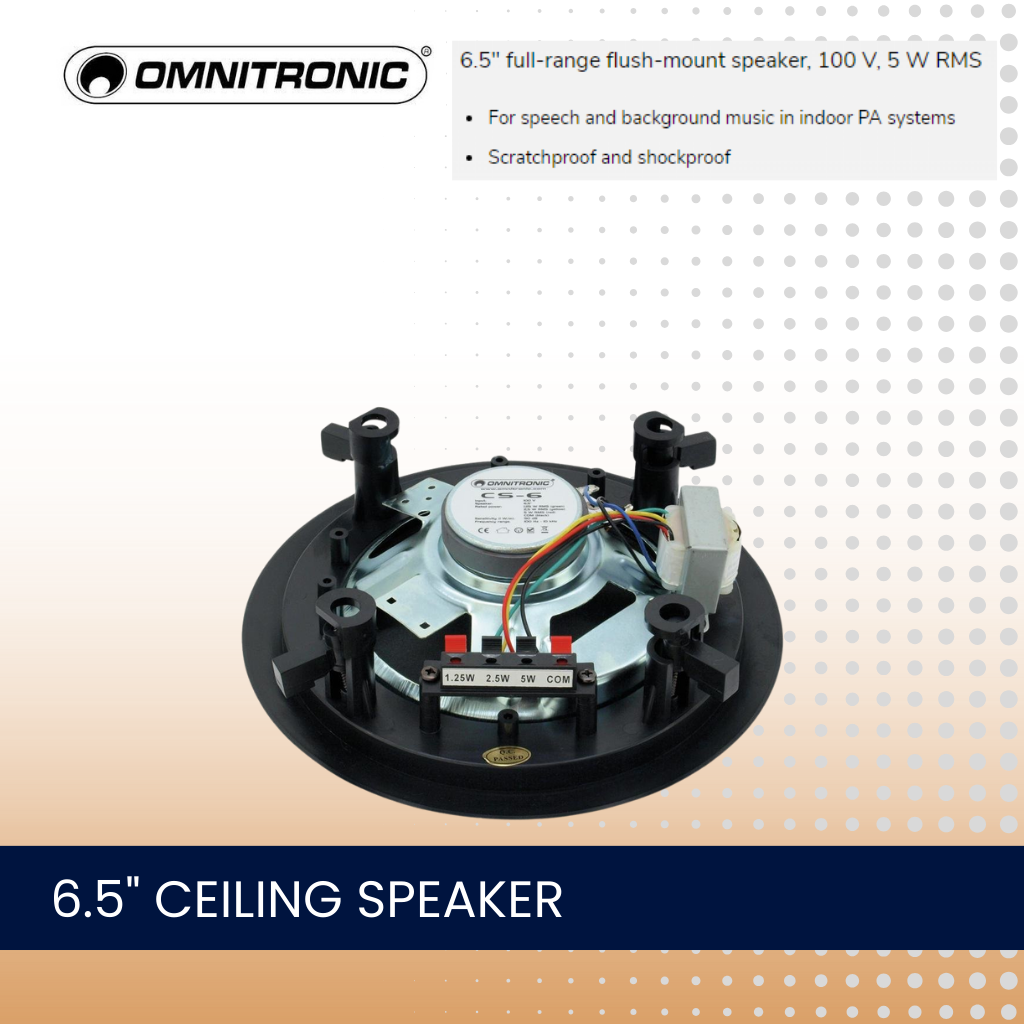

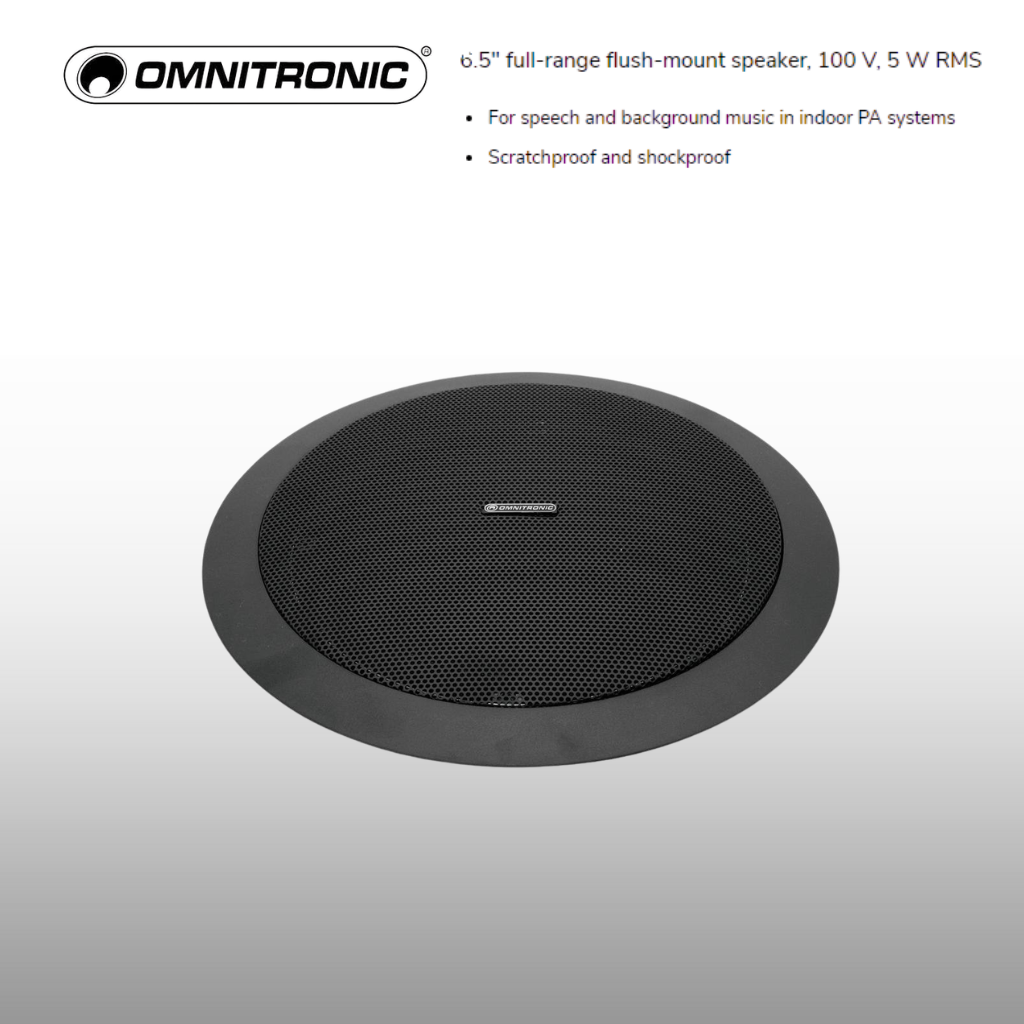

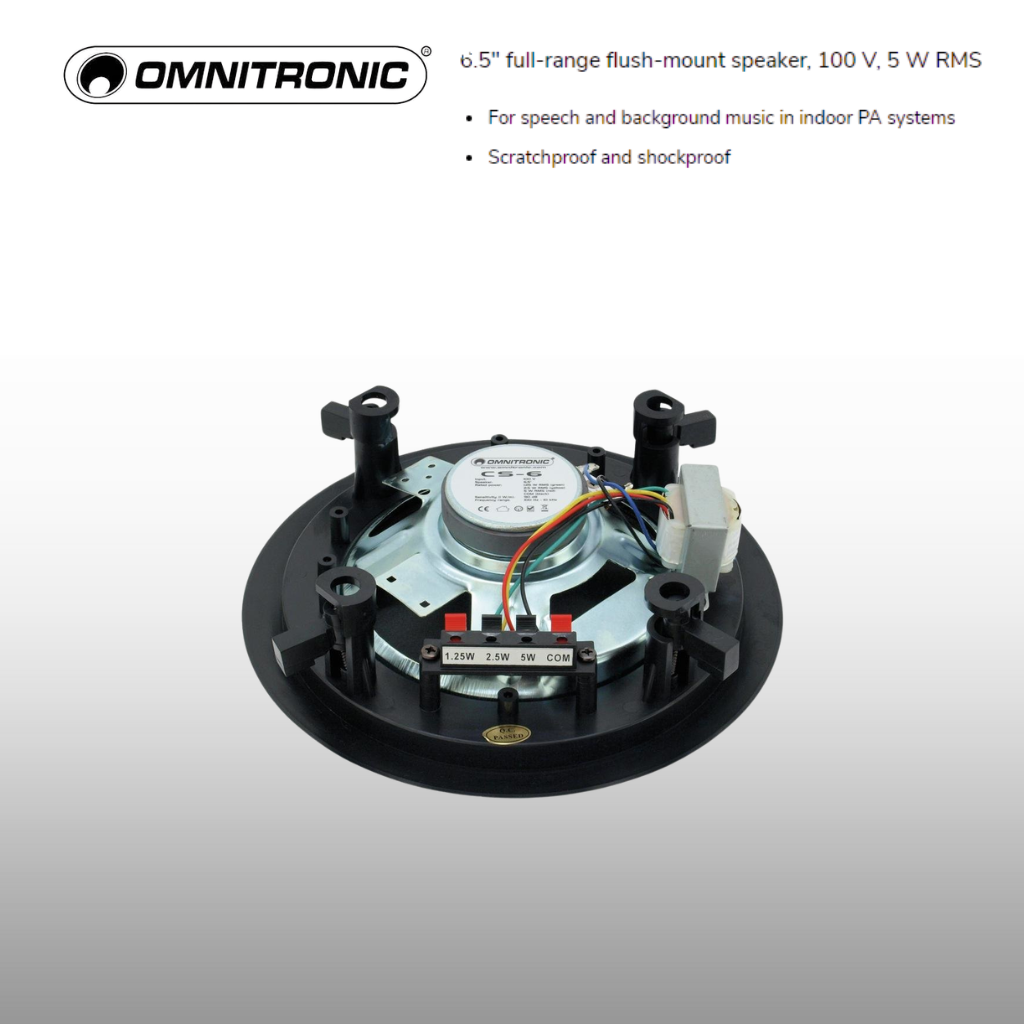

Omnitronic CS-6 ceiling speakers (black)

Power: Program: 10W
Rated: 5W RMS
Frequency range: 100 - 10000 Hz
Sensitivity: 90 dB (1W/1m)
Impedance: Public address systems 100V
Power tapping: 1,25W; 2,5W; 5W RMS via Spring terminal switchable
Speaker: 1 x woofer (6.5") approx. 17 cm
Type of speaker: Flush-mount speaker
Material: ABS Acrylonitrile butadiene styrene
Color: White, scratchproof and shockproof
Mounting dimensions: Ø 19,5 cm
Dimensions: Depth: 7 cm
Diameter: Ø 23 cm
Weight: 890 g

Bluetooth Receiver Specification

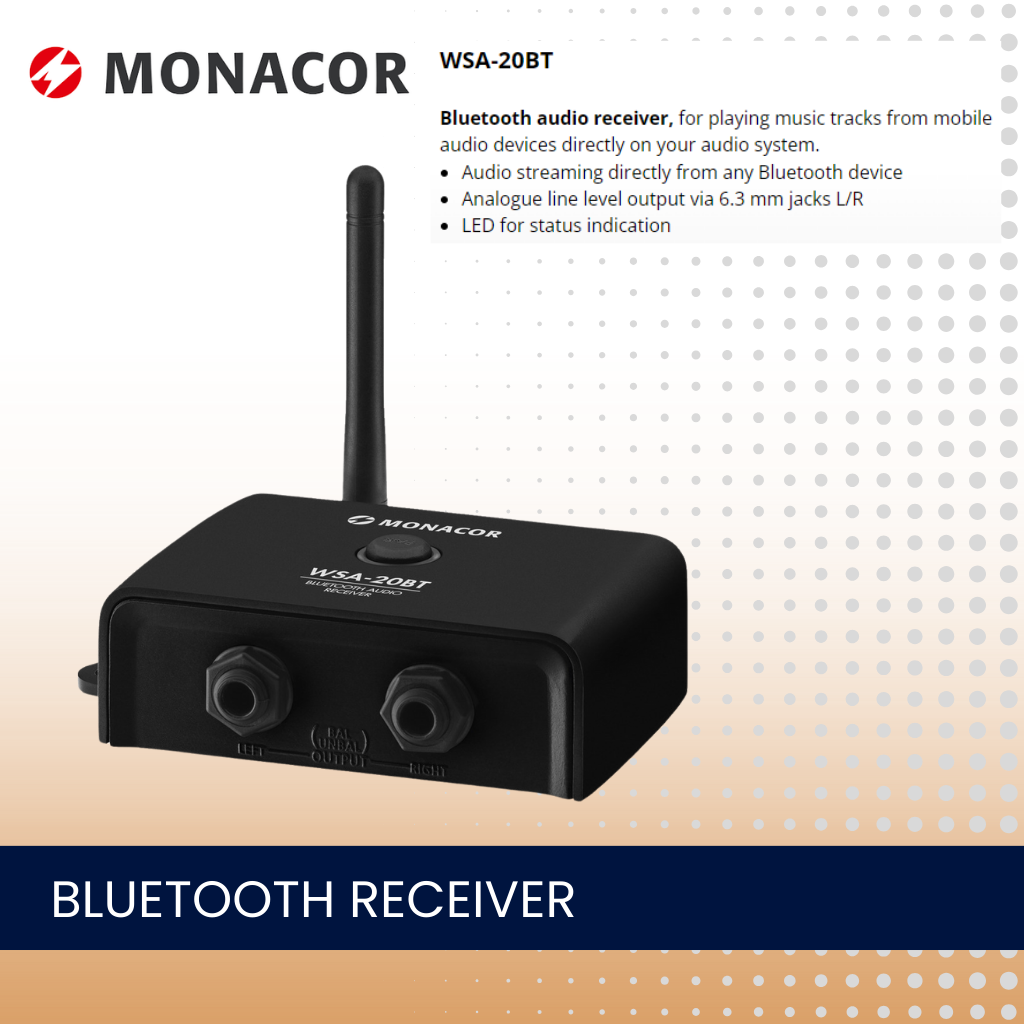

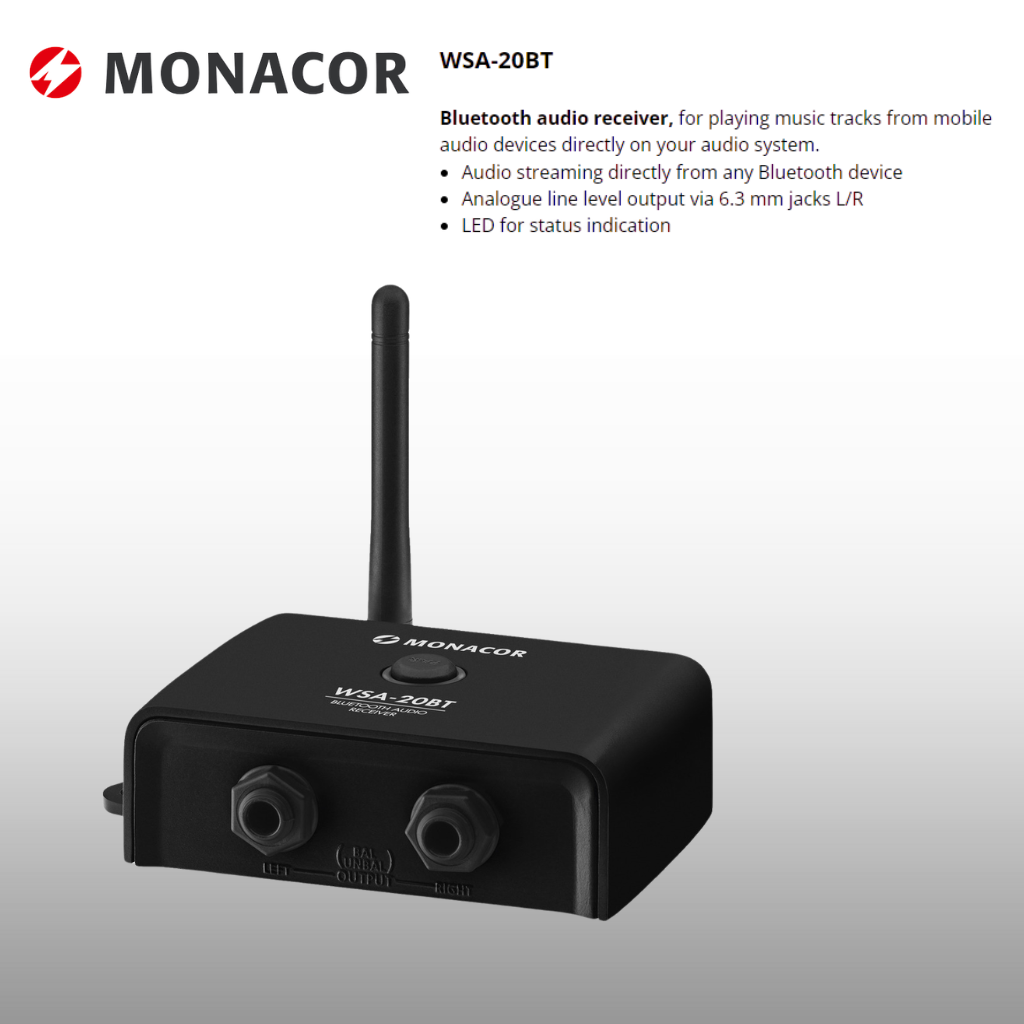

Monacor WSA-20BT Bluetooth receiver

Frequency range 20-20,000 Hz
THD ≤ 0.01%
Channel separation ≥ 75 dB
Bluetooth Bluetooth V4.0,
class 2

Operating range ≤ 10 m
Profiles HFP, HSP, A2DP, AVRCP, DI
Power supply via encl. power supply
Width 116 mm
Height 35 m
Depth 86 mm
Weight 117 g
Connections Outputs:
1 x 6.3 mm stereo jack L/R, analogue

Desktop Microphone Specification

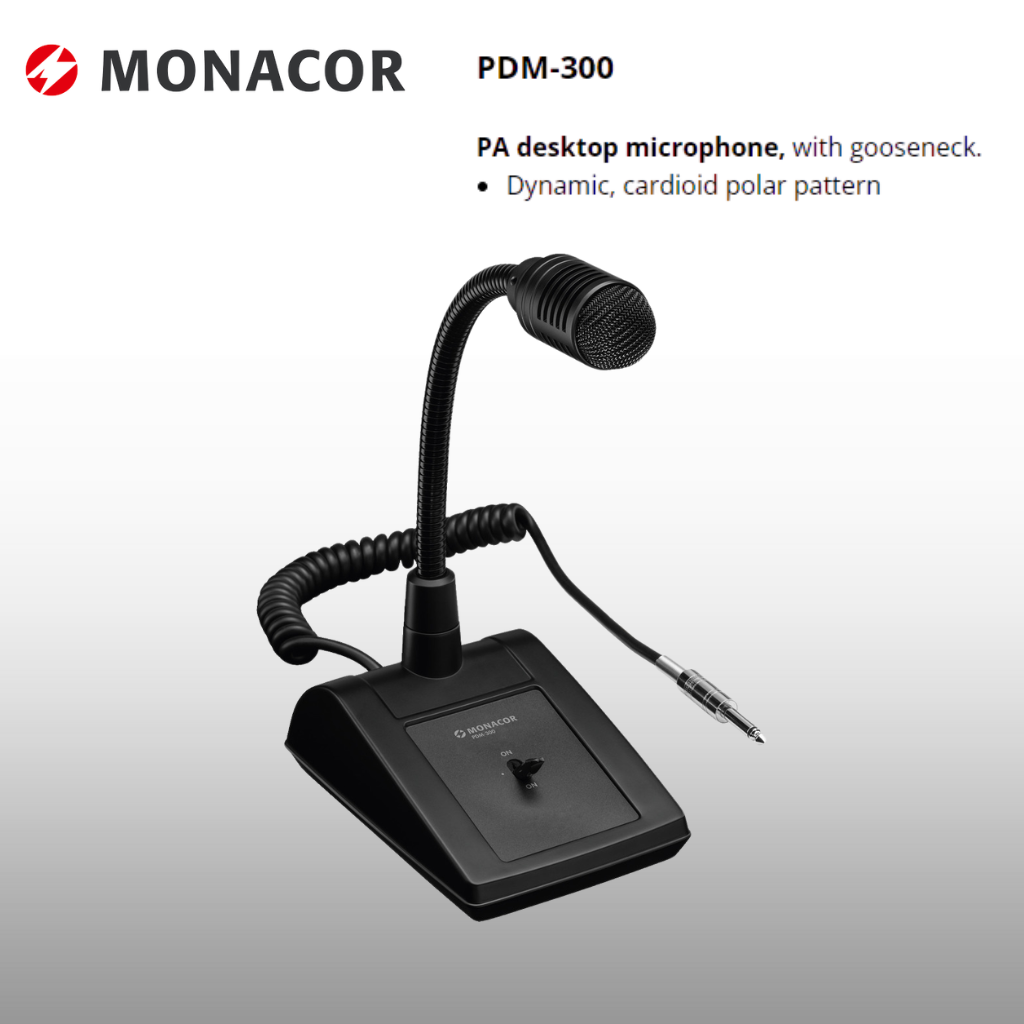

Monacor PDM-300 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
310 mm (length of gooseneck)

Weight 810 g
Cable 1 m
Connection 6.3 mm plug
Packing dimensions (W x H x L) 0.18 x 0.27 x 0.13 m
Gross weight 1.015 kg
Net weight 0.818 kg

Delivery

We offer the following shipping options at checkout;

  • Free Shipping - Please allow up to 7 working days to receive the goods.

If you require a package faster than the free shipping option, we offer;

  • Standard Shipping (£6.50 inc VAT) - Allow 2-4 working days for delivery.

  • Express Shipping (£11.99 inc VAT) - If ordered before 15:00 (Mon-Fri) We will dispatch that evening for a Next Day Service (Mon-Fri).

Any orders placed over the weekend, will be processed from the Monday.
