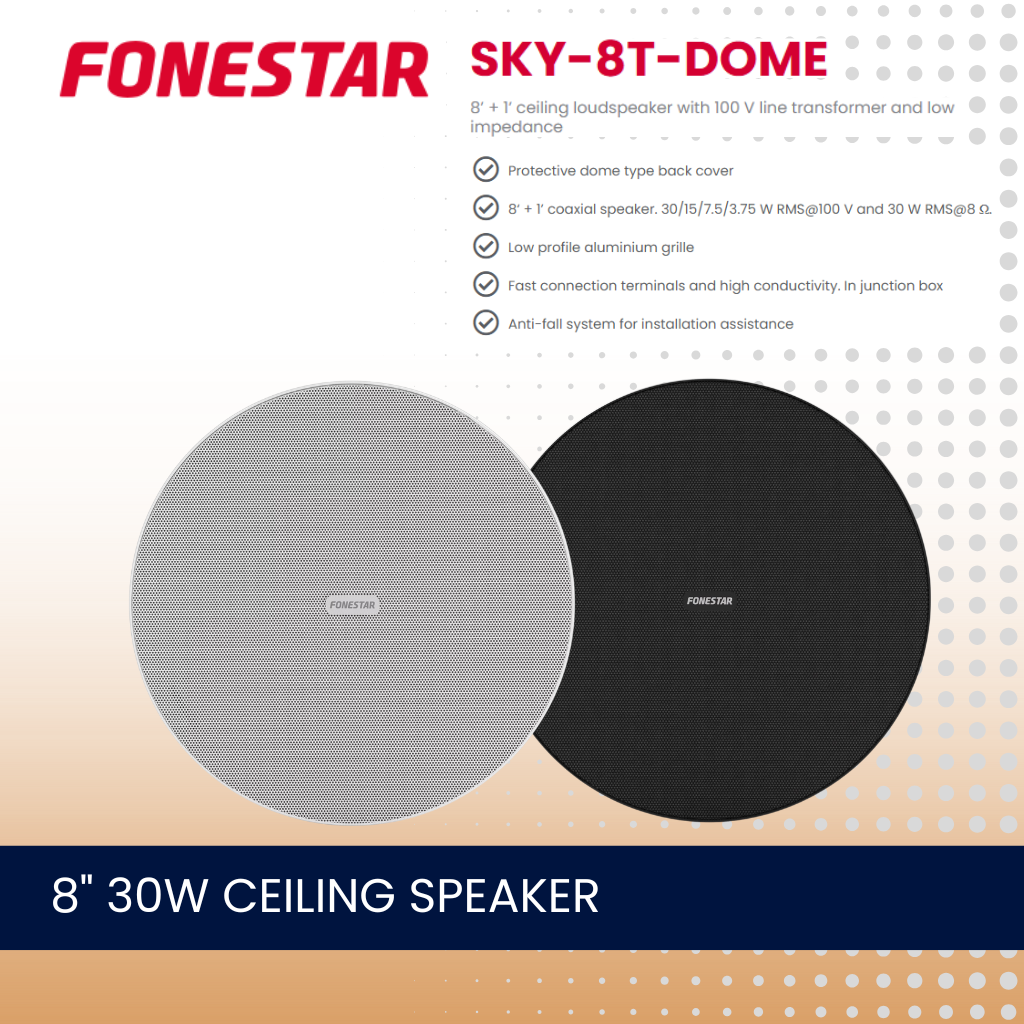

Fonestar SKY-8T-DOME ceiling speaker
FEATURES: Ceiling loudspeaker with 100 V line transformer and low impedance.
Protective dome type back cover.
Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted.
Fast connection terminals and high conductivity.
Junction box in the rear cover with inlet and outlet port.
Anti-fall system for installation assistance.
Hook for safety cable.

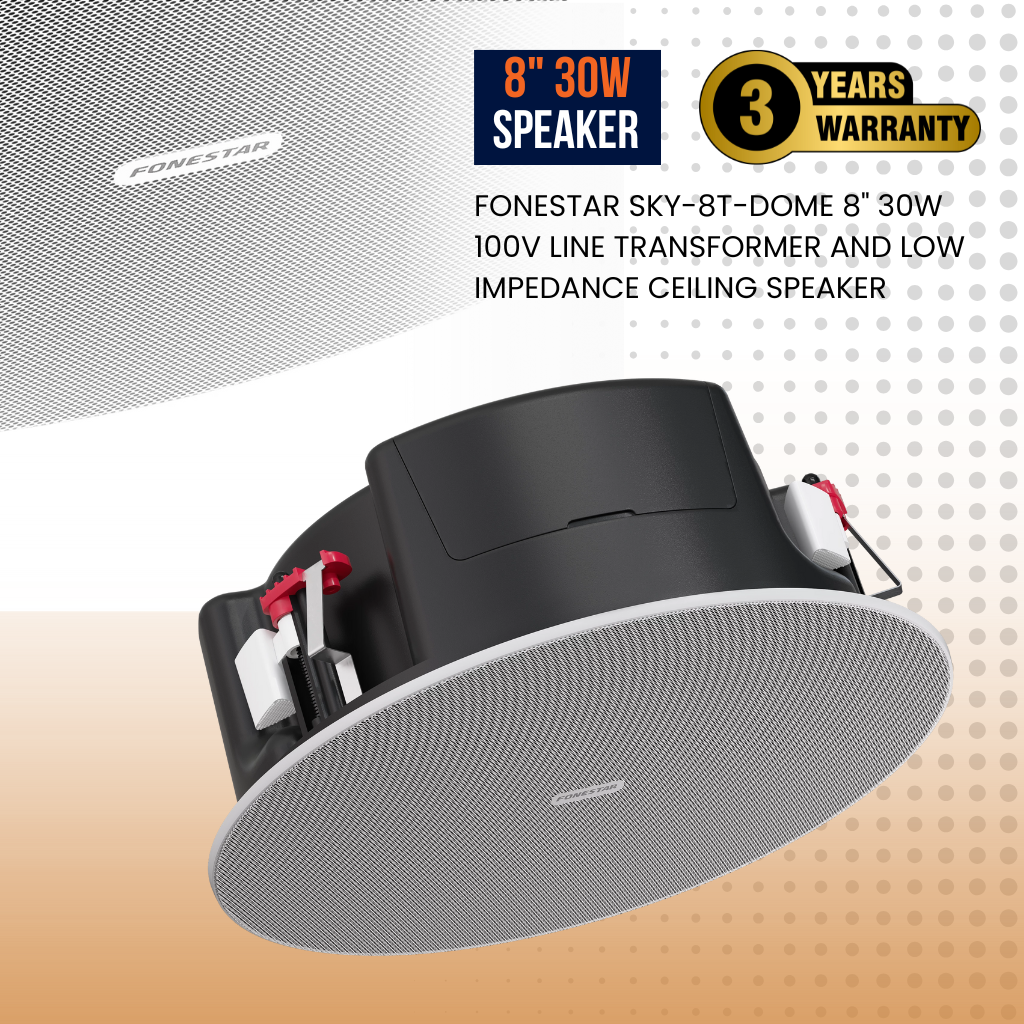

Stable, worm-gear ceiling brackets.
Installation in ceilings with limited space.
Protection against dust and water.
POWER: 30 W RMS
40 W MAX.
SPEAKER: Coaxial speaker.
8'' polypropylene woofer
1'' adjustable tweeter
RESPONSE: 90-20,000 Hz @ -10 dB
100-20,000 Hz @ -3 dB
IMPEDANCE: 30 W RMS@100 V (333 Ω)
15 W RMS@100 V/70 V (666 Ω/326 Ω)
7'5 W RMS@100 V / 70 V(1.333 Ω/ 653 Ω)
3'75 W RMS@100 V / 70 V(2.666 Ω/ 1.306 Ω)
1'87 W RMS@70 V (2.620 Ω)
Low Z: 8 Ω
SENSITIVITY: 90 dB @ 1 W/1 m
SOUND PRESSURE: 108 dB @ max. W/1m Continuous
109 dB @ max. W/1m Peak
COVERAGE ANGLE:: 90º@1kHz (-6 dB)
PROTECTIONS: IP-65 in compliance with IEC 60529
EN ISO 9227:2006 Neutral Salt Spray Test
MATERIAL: ABS (UV resistant)
Liquid painted aluminium grille

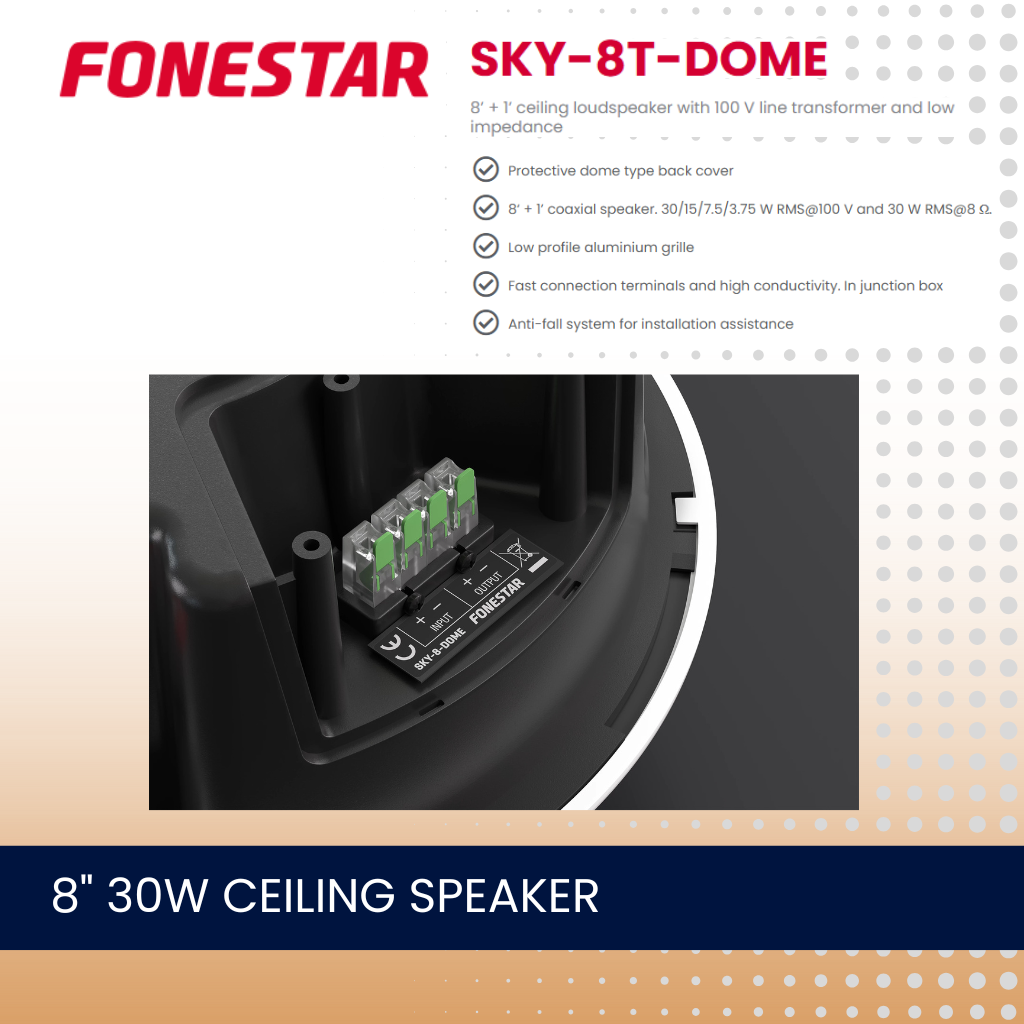

CONNECTORS: Highly conductive quick-connect terminals
For cable cross-section 0.4 ~ 4 mm².
Junction box in back cover with inlet and outlet holes
SWITCH: W selector in high Z and 8 Ω.
Accessible from the front.
OPERATION TEMPERATURE: -20ºC ~ 70°C (48 h)
STORAGE TEMPERATURE: 10ºC ~ 40°C
MAXIMUM HUMIDITY: 95%
COLOUR: White (RAL 9003)
DIMENSIONS: Total loudspeaker: 306 mm Ø x 128 mm height
Grille section: 7 mm
Recessed height: 121 mm
Installation hole: 273 mm Ø
Maximum ceiling thickness: 30 mm
WEIGHT: 2.4 kg
ACCESSORIES: Installation template
