Fonestar SKY-6-DOME ceiling speaker
FEATURES: Low impedance ceiling loudspeaker.
Protective dome type back cover.

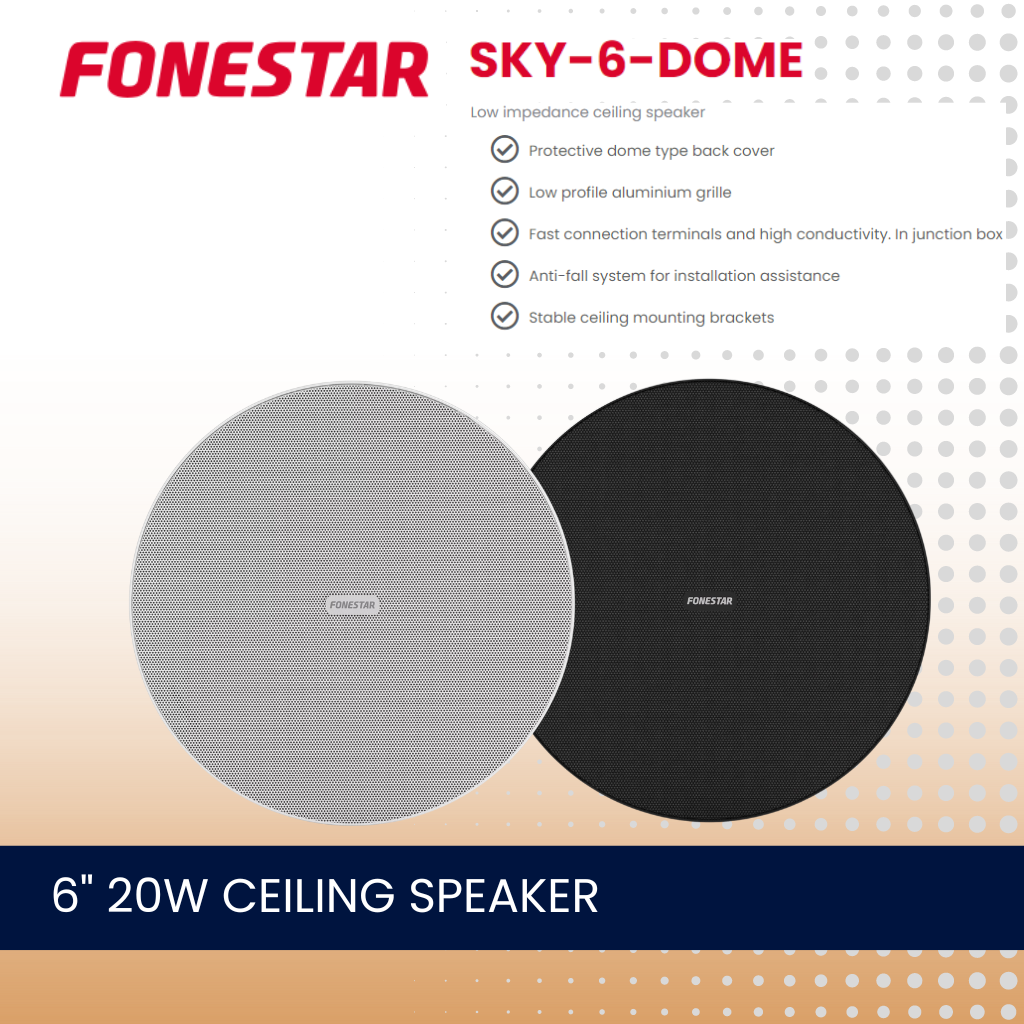

Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable. The logo can be removed and the speaker can be painted.
Fast connection terminals and high conductivity.
Junction box in the rear cover with inlet and outlet port.
Anti-fall system for installation assistance.
Hook for safety cable.
Stable, worm-gear ceiling brackets.
Installation in ceilings with limited space.
Protection against dust and water.
POWER: 20 W RMS
25 W MAX.
SPEAKER: Coaxial loudspeaker.
6'' polypropylene woofer
1'' swivelling tweeter
RESPONSE: 45-20,000 Hz @ -10 dB
60-20,000 Hz @ -3 dB
IMPEDANCE: 8 Ω
SENSITIVITY: 90 dB @ 1 W/1 m
SOUND PRESSURE: 103 dB @ max. W/1m Continuous
106 dB @ max. W/1m Peak
COVERAGE ANGLE: H/V (-6 dB): 125º@500Hz, 150º@1kHz, 60º@2kHz, 60º@4kHz
PROTECTIONS: IP-65 in compliance with EN 60529
EN ISO 9227:2006 Neutral Salt Spray Test
MATERIAL: ABS (UV resistant)
Liquid paint aluminium grille
CONNECTORS: Highly conductive quick-connect terminals
For 0.4 ~ 4 mm² ross section cable
Junction box in the rear cover with inlet and outlet port
OPERATION TEMPERATURE: 5ºC ~ 40°C
STORAGE TEMPERATURE: 2ºC ~ 50°C
MAXIMUM HUMIDITY: 0.9
COLOUR: White (RAL 9003)
DIMENSIONS: Total loudspeaker: 249 mm Ø x 95 mm height
Grille section: 5 mm
Recessed height: 90 mm
Installation hole: 219 mm Ø
Maximum ceiling thickness: 30 mm
WEIGHT: 1.45 kg
ACCESSORIES: Installation template
