Fonestar SKY-5T 5" 12W 100V line transformer ceiling speaker

Fonestar SKY-5T 5" 12W 100V line transformer ceiling speaker

SKU:

Regular price £35.00
Regular price Sale price £35.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour

Design by Fonestar products are the result of in-depth research and active listening to our customers, turning their needs into competitive solutions.

Stylish design and acoustic versatility in a 5‘’ ceiling speaker

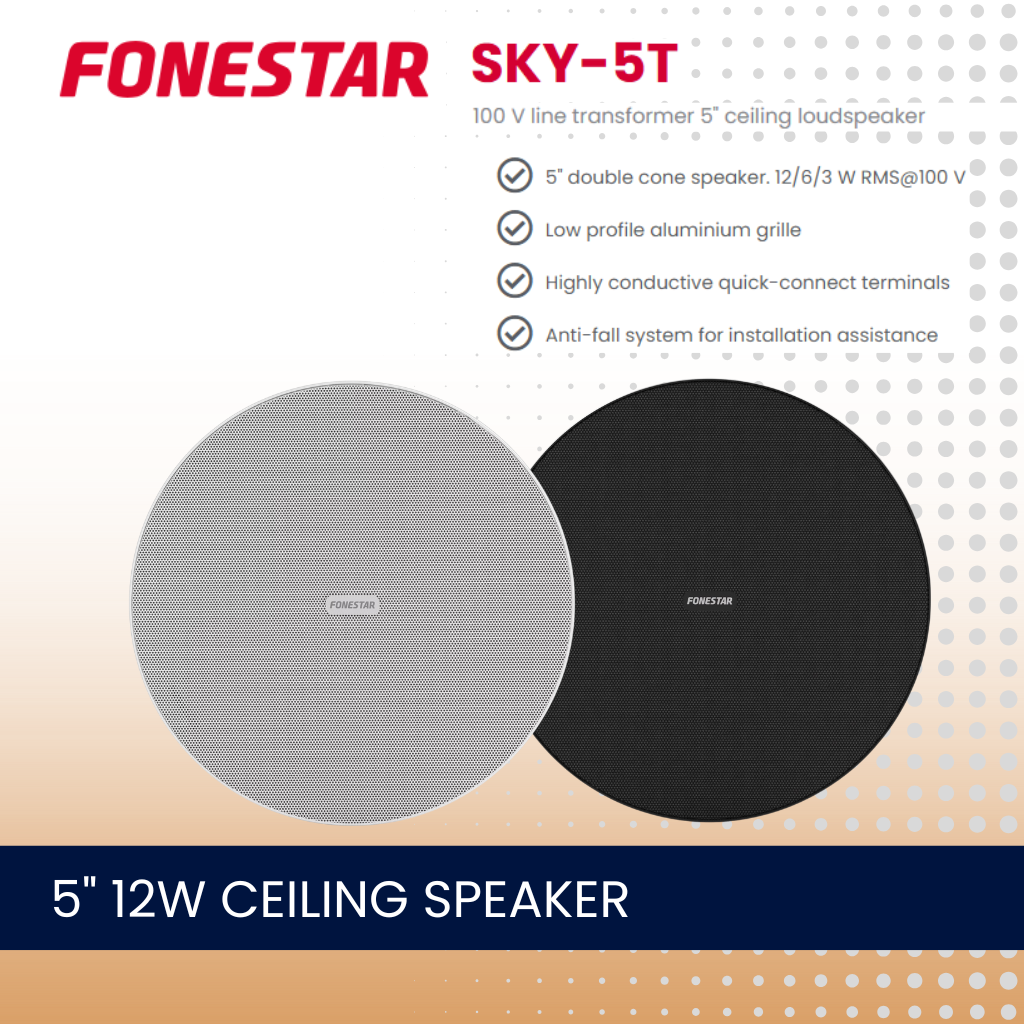

The SKY-5T is a 100 V line transformer ceiling loudspeaker designed to combine aesthetics and functionality in professional sound system engineering and installation projects. Its frameless, low-profile grille in rust-resistant aluminium provides a discreet, modern finish. In addition, it is detachable, twist-lockable and customisable, allowing the logo to be removed and painted to suit the environment.

Key benefits of the SKY-5T

This loudspeaker is designed to meet the needs of demanding installers and technical projects thanks to advanced features:

  • Efficient installation: quick-connect terminals for 0.4 to 4 mm² cables, anti-fall system and safety hook for easy mounting in ceilings up to 30 mm thick.
  • Guaranteed durability: high-strength materials, such as UV-protected ABS and painted aluminium grille, meet dust, water and neutral salt spray resistance standards (IP-44).
  • Excellent acoustic performance: wide response range (55-20,000 Hz), optimised coverage angles and sound pressure of up to 98 dB, ideal for indoor and outdoor PA projects.

Why choose SKY-5T?

The SKY-5T stands out for its combination of performance, reliability and design:

  • High-quality sound thanks to its 5‘’ dual-cone polypropylene diaphragm and adjustable impedance settings (833 Ω to 3.333 Ω).
  • Application flexibility with support for challenging environments (-20 °C to 70 °C, 95 % max. humidity).
  • Easy maintenance and customisation, suitable for multiple environments, from offices to commercial spaces.

The SKY-5T is the perfect choice for those seeking quality, style, and functionality in in-ceiling loudspeaker solutions.

    Speaker Specification

    Fonestar SKY-5T ceiling speaker

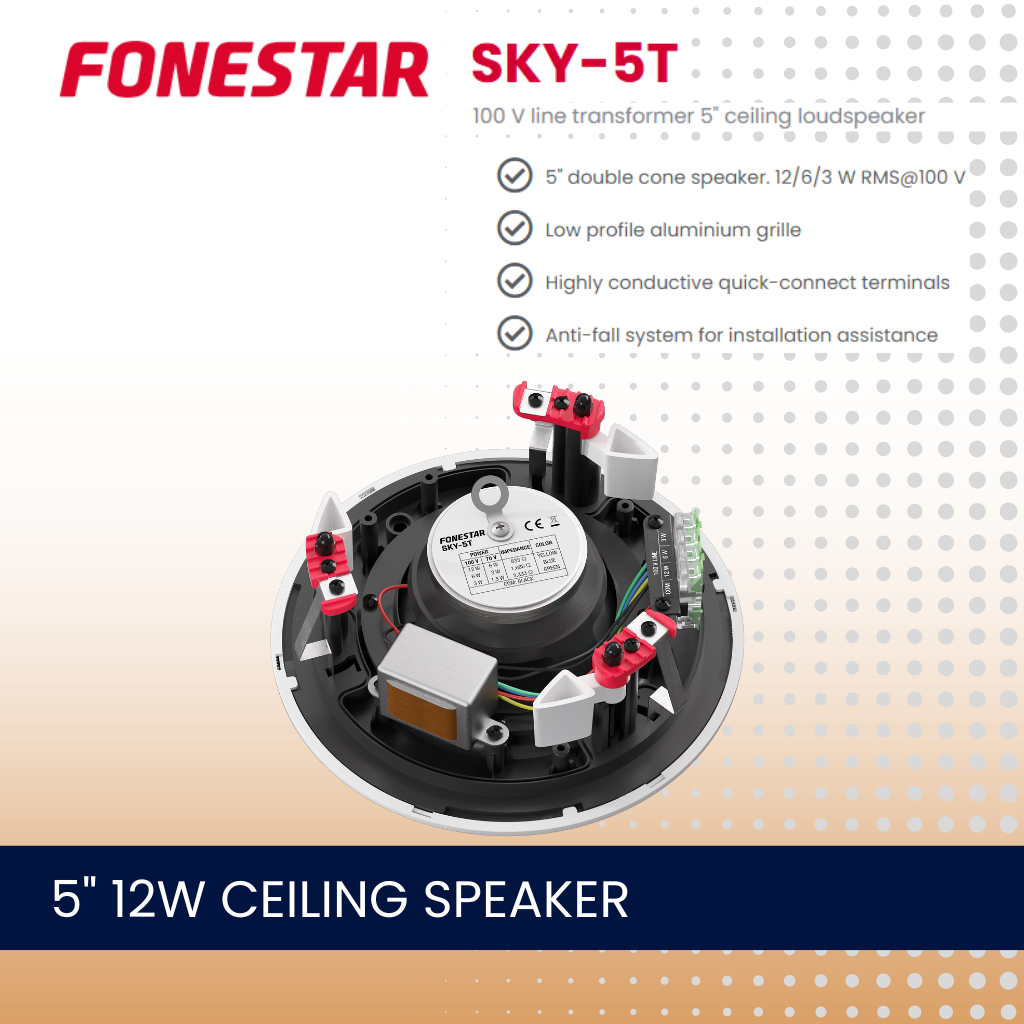

    FEATURES: Ceiling loudspeaker with 100 V line transformer.
    Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted.
    Fast connection terminals and high conductivity.
    Anti-fall system for installation assistance.
    Hook for safety cable.
    Stable, worm-gear ceiling brackets.
    Protection against dust and water.
    POWER: 12 W RMS
    16 W MAX.
    SPEAKER: 5'' polypropylene double cone diaphragm
    RESPONSE: 55-20,000 Hz @ -10 dB
    70-20,000 Hz @ -3 dB
    IMPEDANCE: 12 W RMS@100 V (833 Ω)
    6 W RMS@100 V/70 V (1.666 Ω/816 Ω)
    3 W RMS@100 V/70 V (3.333 Ω/1,633 Ω)
    1'5 W RMS@70 V (3.266 Ω)
    SENSITIVITY: 85 dB @ 1 W/1 m
    SOUND PRESSURE: 97 dB @ max. W/1m Continuous
    98 dB @ max. W/1m Peak
    COVERAGE ANGLE: 90º@1kHz (- 6 dB)
    PROTECTIONS: IP-44 in compliance with IEC 60529
    EN ISO 9227:2006 Neutral Salt Spray Test
    MATERIAL: ABS (UV resistant)
    Liquid paint aluminium grille
    CONNECTORS: Highly conductive quick-connect terminals
    For 0.4 ~ 4 mm² cross section cable
    OPERATION TEMPERATURE: -20ºC ~ 70°C (48 h)
    STORAGE TEMPERATURE: 10ºC ~ 40°C
    MAXIMUM HUMIDITY: 95%
    COLOUR: White (RAL 9003)
    DIMENSIONS: Total loudspeaker: 214 mm Ø x 85 mm height
    Grille section: 5 mm
    Recessed height: 80 mm
    Installation hole: 180 mm Ø
    Maximum ceiling thickness: 30 mm
    WEIGHT: 0.8 kg
    ACCESSORIES: Installation template
