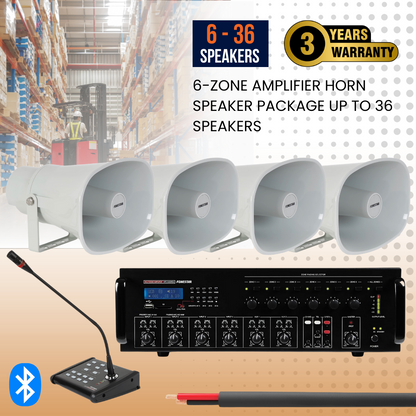

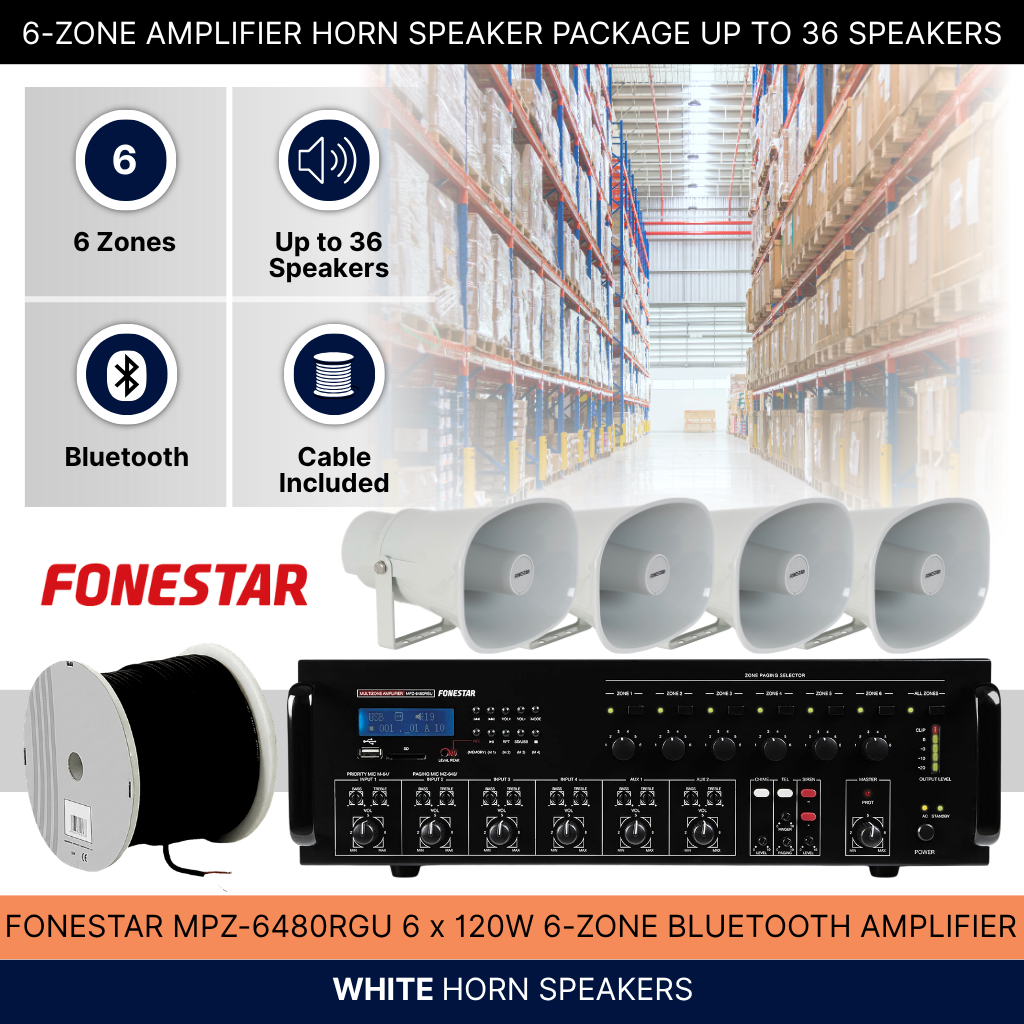

6-Zone Amplifier Horn Speaker Package Up To 36 Speakers

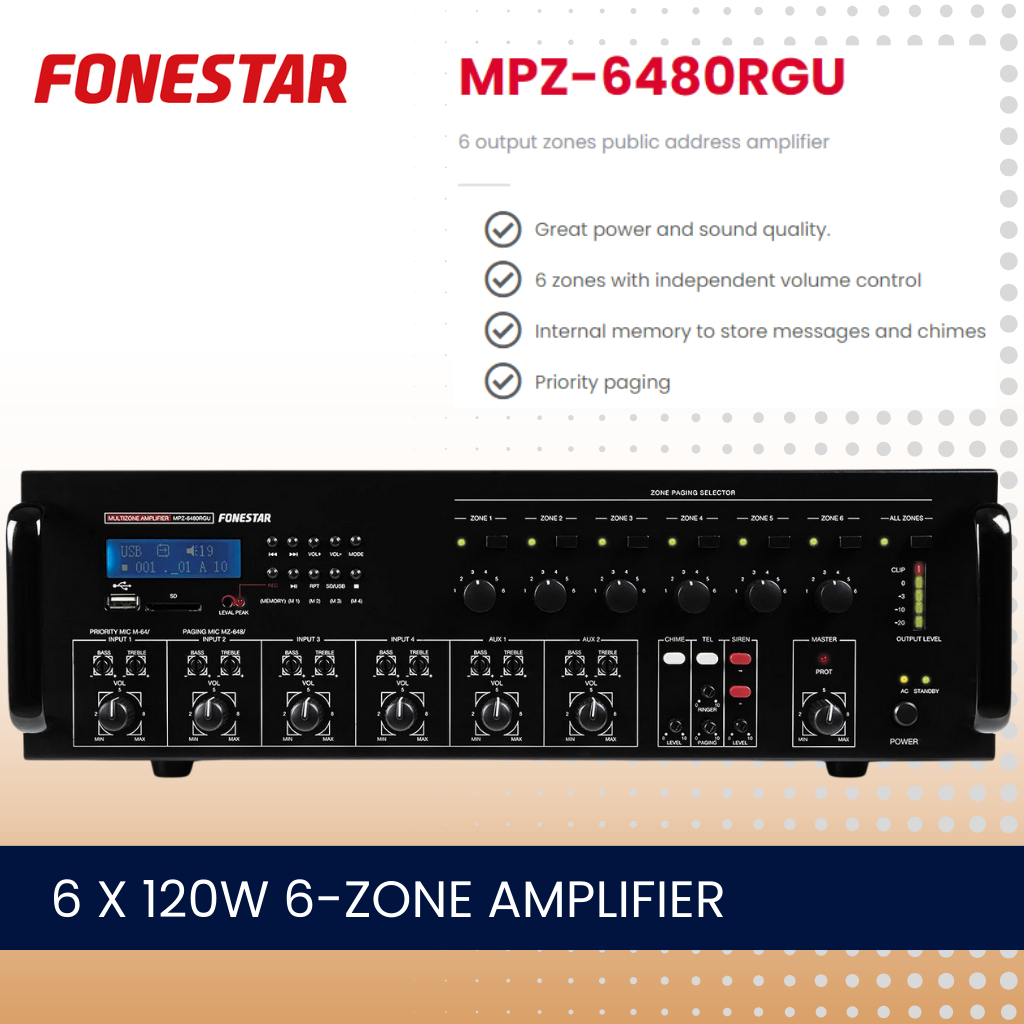

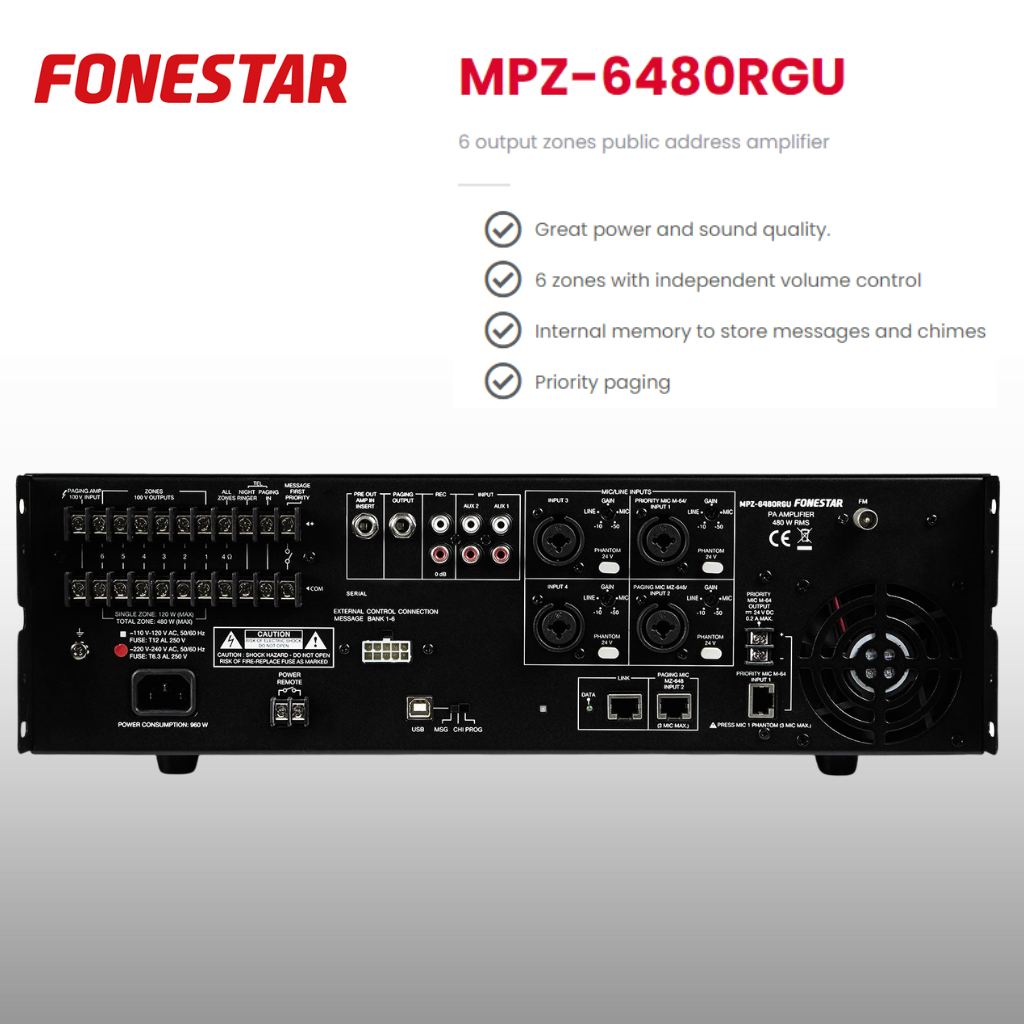

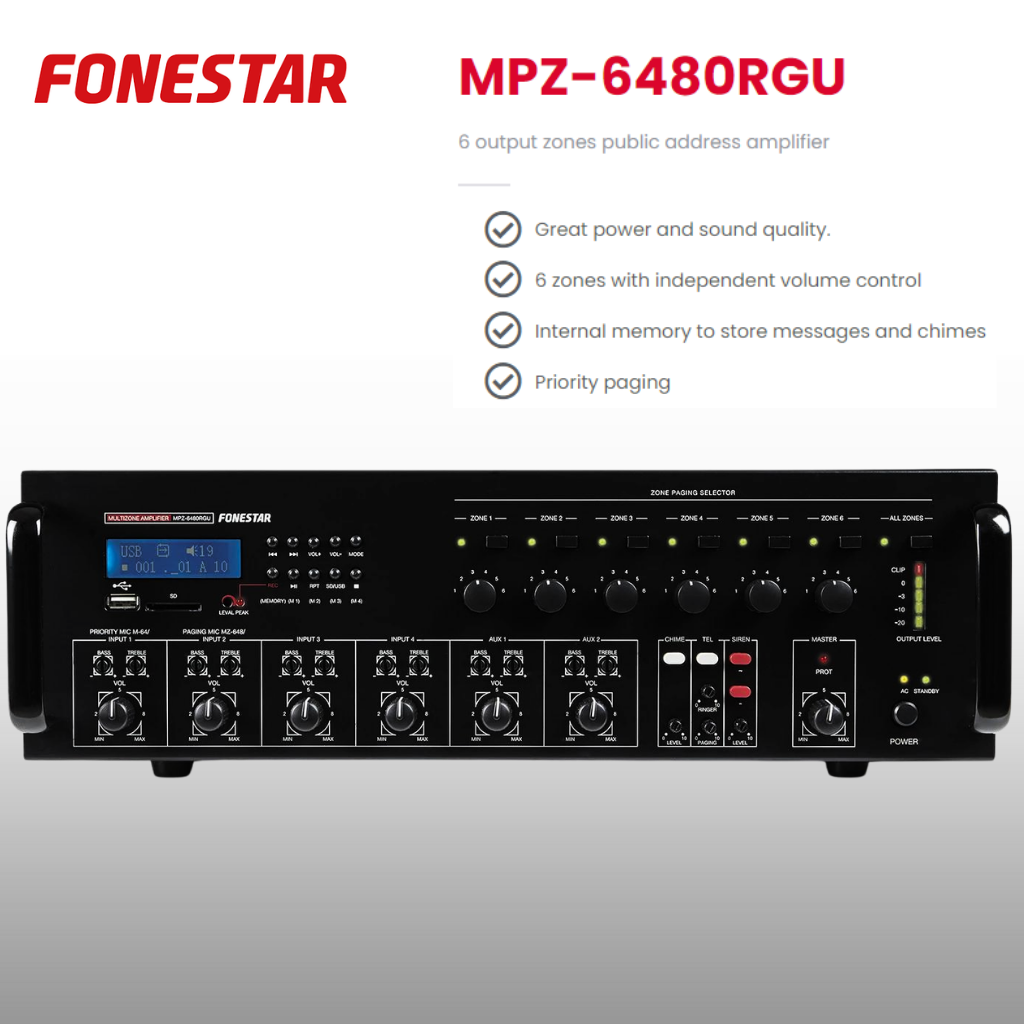

Fonestar MPZ-6480RGU 6-zone amplifier

FEATURES: Zone amplifier.
6 zones with independent volume control, maximum 120 W per zone.
Playback of up to 6 prerecorded messages.
USB/SD recorder/player.
Digital FM radio tuner.
Internal memory to store messages and chimes.
Phantom power supply.
Priority paging.
Connection of up to 3 paging microphones MZ-648 and 3 microphones with priority M-64.
POWER: 480 W RMS
FEEDBACK: 80-16,000 Hz ±3 dB
DISTORTION: Harmonic: < 1%
INPUTS: 4 balanced mic./line, combo (XLR and 6.3 mm jack) 600 Ω 2.5 mV and 10,000 Ω 300 mV RMS, switchable
2 aux, 2 x RCA 10,000 Ω 1.1 mV RMS
1 insert, 6.3 mm jack 2.5 V RMS
1 tel. paging, screw terminals 10,000 Ω 250 mV RMS
1 paging mic. RJ-45
1 mic. with priority, RJ-45
OUTPUTS: 1 paging out, 6.3 mm jack 1 V RMS
1 rec out, 2 x RCA 1 V RMS
S/N RATIO: Mic > 60 dB
Line > 70 dB
PROTECTION: Temperature and overload
PHANTOM: 24 V in mics 1 to 4, selectable
PRIORITY: Mic.1 and paging from M-64.
Mic 2, paging from MZ-648, mic 3, mic 4, aux 1, aux 2, tel ring, tel voice, chime (front), siren (front), USB/SD/FM player, pre-recorded messages from MZ-648, priority level 1 to 4 menu selectable.
IMPEDANCE: 4 Ω 100 V line, screw terminals
POWER SUPPLY: 230 V AC, 960 W maximum
DIMENSIONS: 483 x 133 x 497 mm depth. 3 U 19" rack
WEIGHT: 15.9 kg
OPTIONAL: MZ-648: paging microphone
M-64: microphone with priority
ACCESSORIES: Mount for assembly in 19" rack
FM antenna

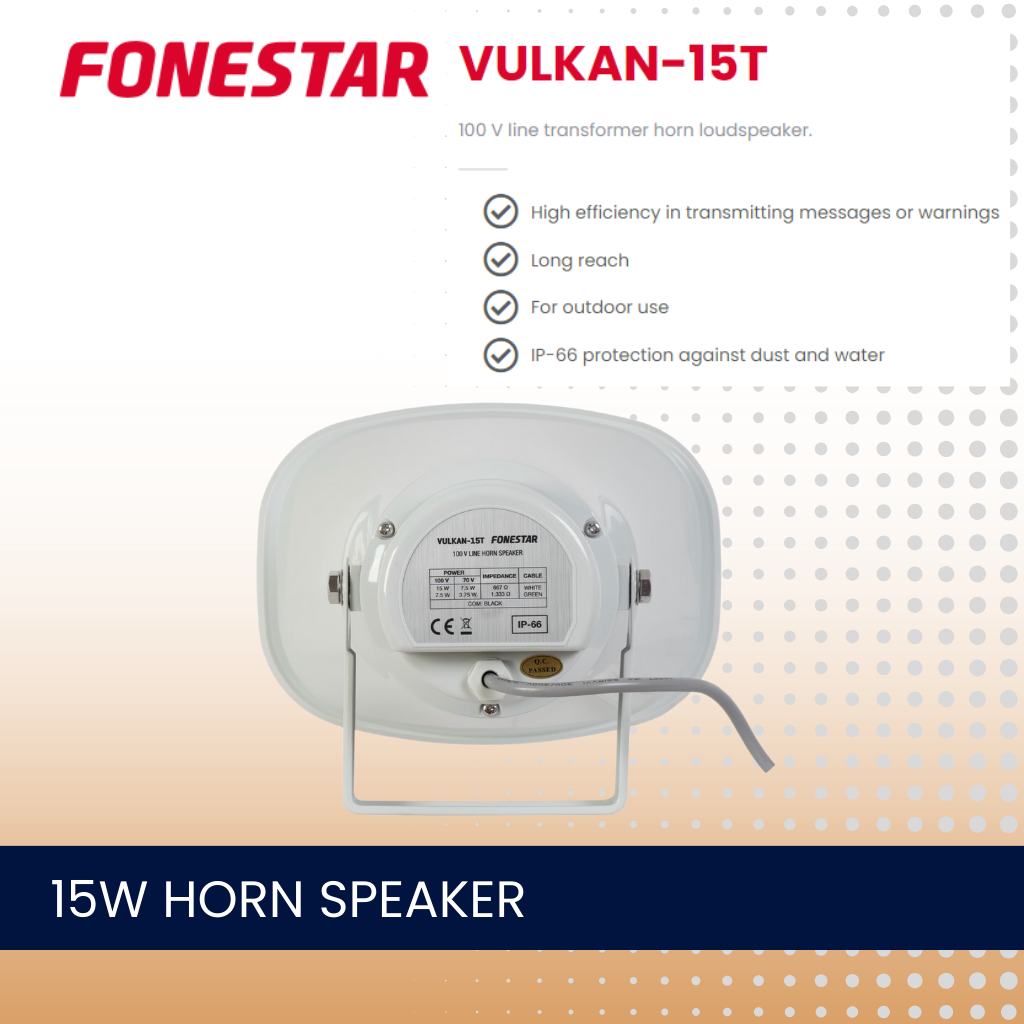

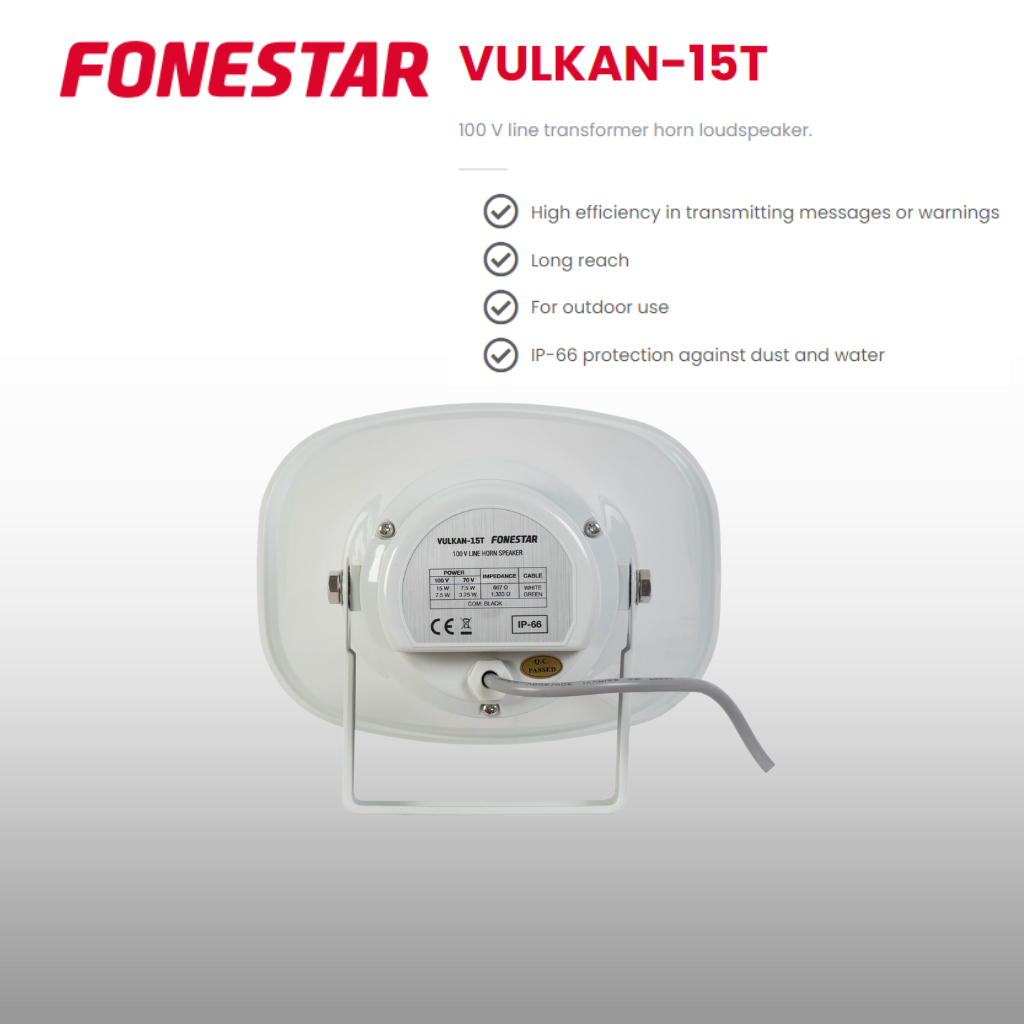

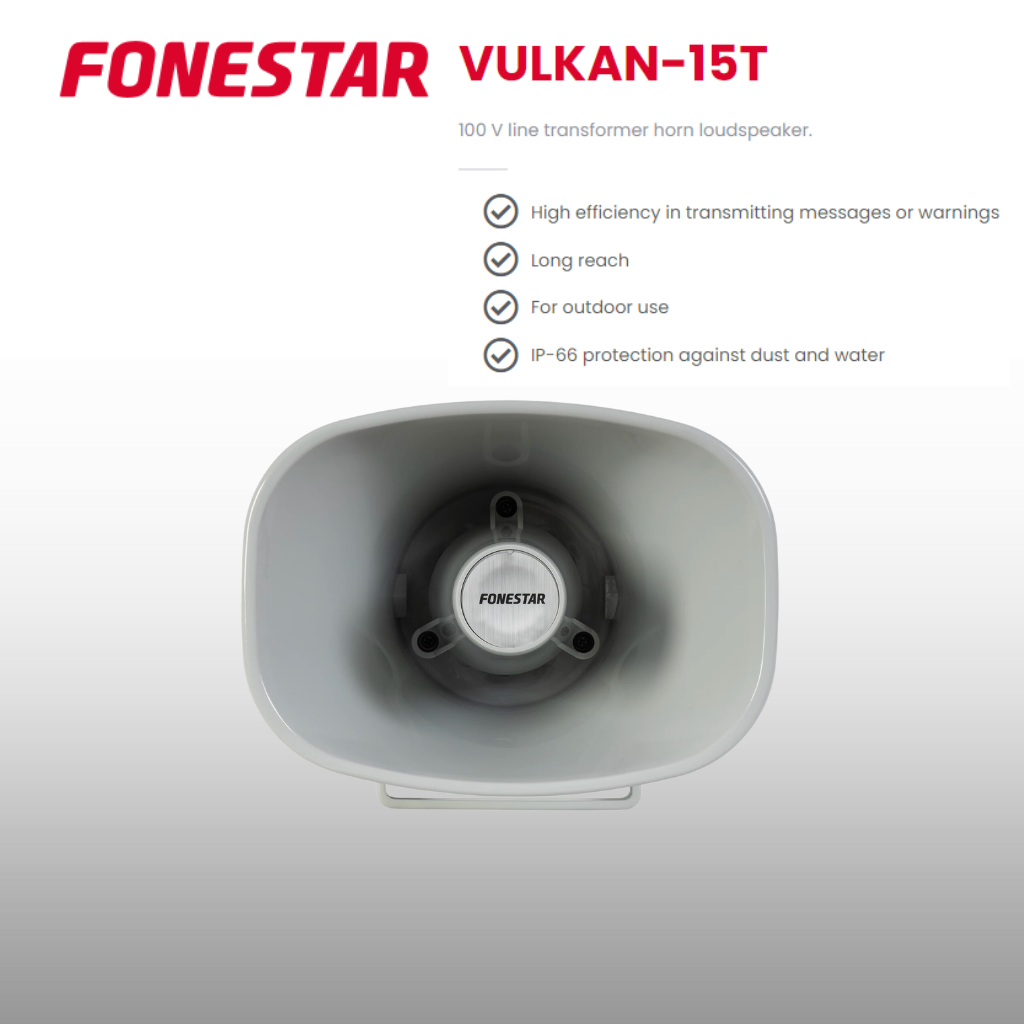

Fonestar VULKAN-15T horn speakers (white)

FEATURES: 100 V line transformer horn loudspeaker.
Prepared for outdoor use with anti-corrosion materials.
Protection against water.
For long-range message playback.
POWER: 15 W RMS
LOUDSPEAKERS: 1 x compression driver
RESPONSE: 320-6,000 Hz (-10 dB)
IMPEDANCE: 15 W RMS@100 V (666 Ω)
7.5 W RMS@100 V (1.333 Ω)
SENSITIVITY: 105 dB @ 1 W/1 m
MAXIMUN SOUND PRESSURE: 116 dB @ at maximum power/1 m
DISPERSION: H/V: 180º/160º@500Hz, 90º/80º@1kHz, 50º/40º@2kHz, 40º/30º@4kHz (-6 dB)
PROTECTIONS: IP-66 in compliance with EN 60529
MATERIAL: ABS diffuser and rear cover
Aluminium mount
A2 stainless steel screws
CONNECTION: 30 cm cable with stripped ends
TEMPERATURE RANGE: Operation: -25ºC ~ +55ºC
Storage: -40ºC ~ +70ºC
HUMIDITY: <95%
COLOUR: White (RAL 7035)
DIMENSIONS: 222 x 162 x 232 mm depth
WEIGHT: 1.36 kg

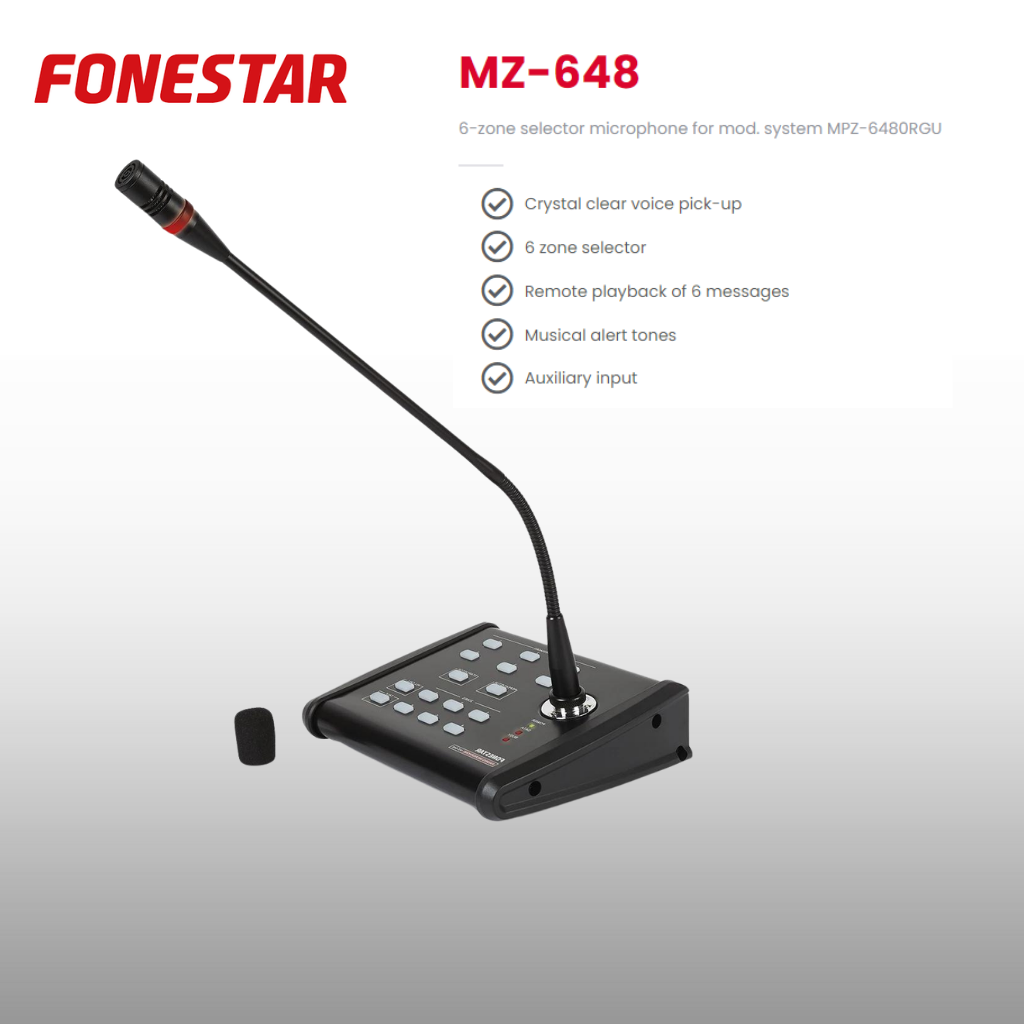

Fonestar MZ-648 paging microphone

FEATURES: Microphone with 6 zone selector.
Remote playback of 6 messages.
Chimes.
Internal memory to store messages and chimes.
Aux input.
For the multizone amplifier mod. MPZ-6480RGU.
MICROPHONE: Electret condenser with gooseneck
INPUTS: 1 balanced mic.
1 paging microphone, RJ-45
1 aux, 2 x RCA
OUTPUTS: 1 paging mic., RJ-45
1 PC connection, USB B
CONNECTION: RJ-45 cable, distance over 100 m
POWER SUPPLY: 15 V DC, 0.8 A with adapter included, power supply through the amplifier or local power supply
DIMENSIONS: Microphone with gooseneck: 485 mm height
Base: 220 x 55 x 160 mm depth
WEIGHT: 1 kg
