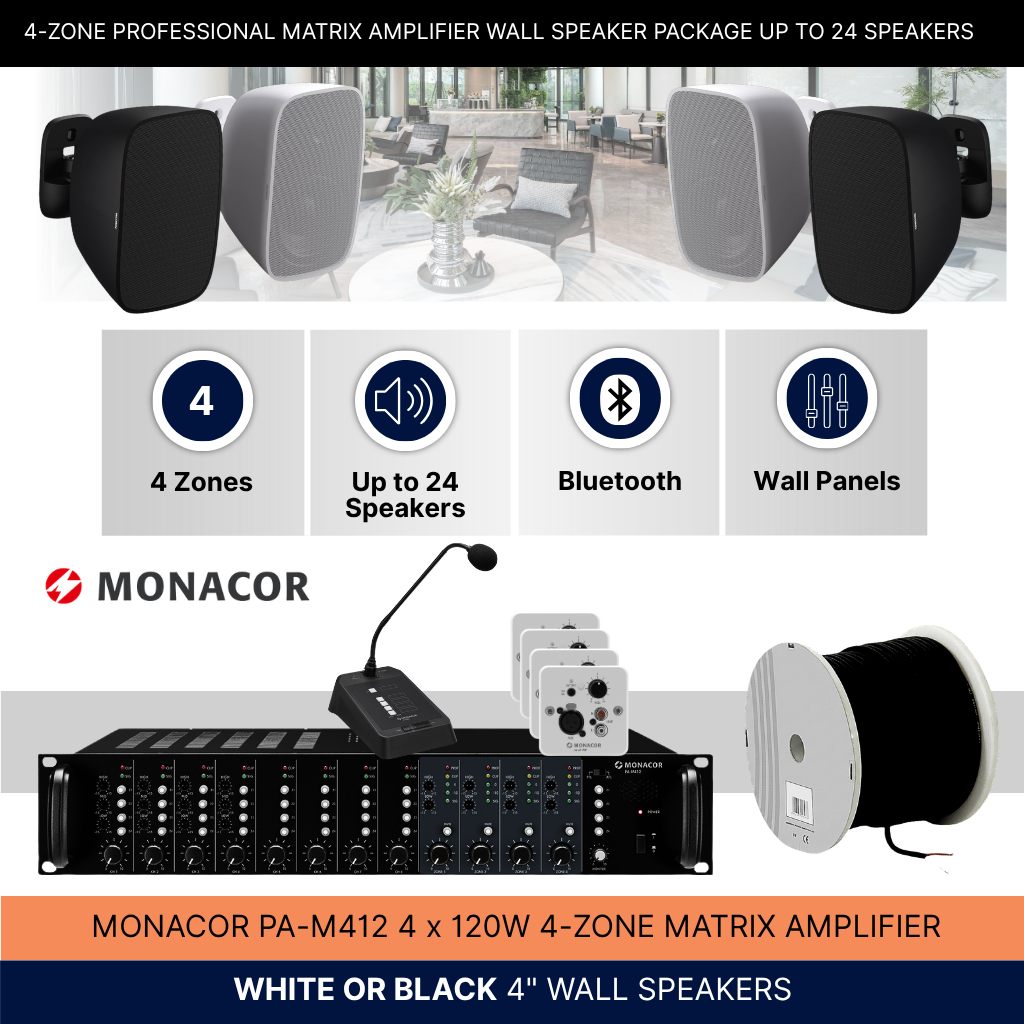

4-Zone Professional Matrix Amplifier Wall Speaker Package Up To 24 Speakers Background Music System

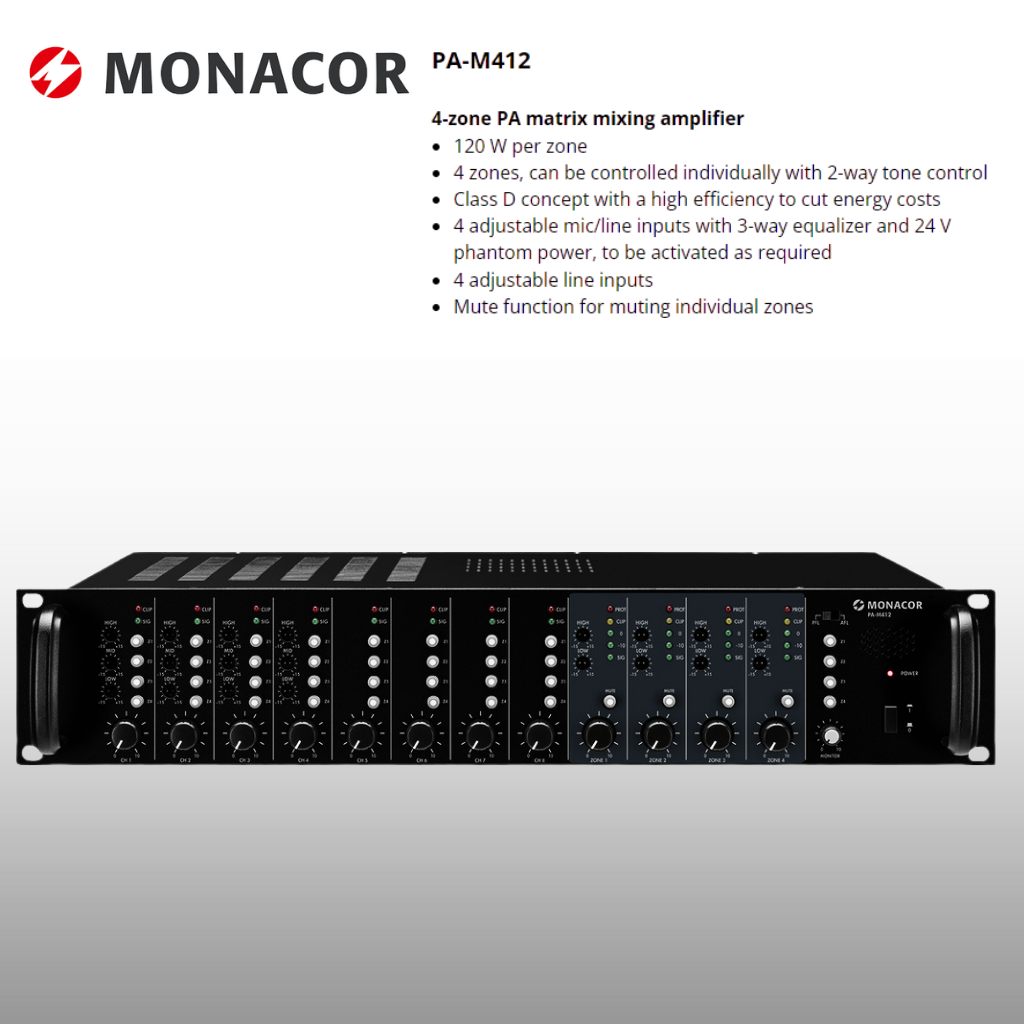

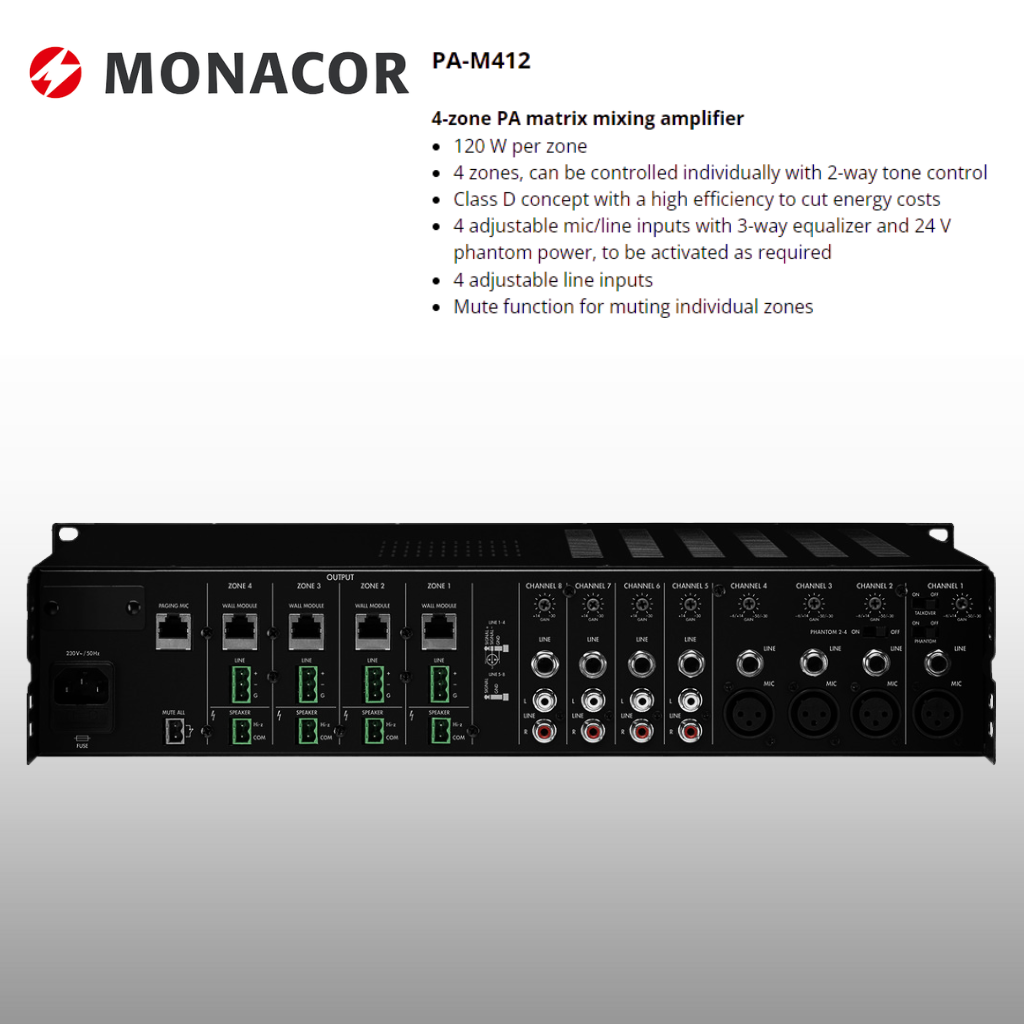

Monacor PA-M412 4-zone matrix amplifier

Peak output power 4 x 170 W
Power rating 4 x 120 W
Channels 8
Zones 4
Inputs 2.5 mV/20 kΩ (mic),
2 V/20 kΩ (line)

Frequency range 20-20,000 Hz
Equalizer bass ±12 dB/80 Hz (channels 1-4)
±15 dB/80 Hz (zones 1-4)

Equalizer midrange ±12 dB/2.5 kHz (channels 1-4)
Equalizer treble ±12 dB/12.5 kHz (channels 1-4)
±15 dB/12 kHz (zones 1-4)

S/N ratio > 70 dB
THD < 0.1%
Phantom power 24 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 860 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 88 mm
Depth 320 mm
Rack units, RU 2
Weight 6.2 kg
Connections 4 x XLR, bal. (mic 1-4),
4 x 6.3 mm jack (line 1-4),

4 x 6.3 mm jack (line 5-8),

4 x RCA L/R (line 5-8),

1 x RJ45 (push-to-talk microphone),

4 x RJ45 (remote in),

screw terminal (speakers)

Packing dimensions (W x H x L) 0.4 x 0.53 x 0.17 m
Gross weight 7.37 kg
Net weight 6.21 kg

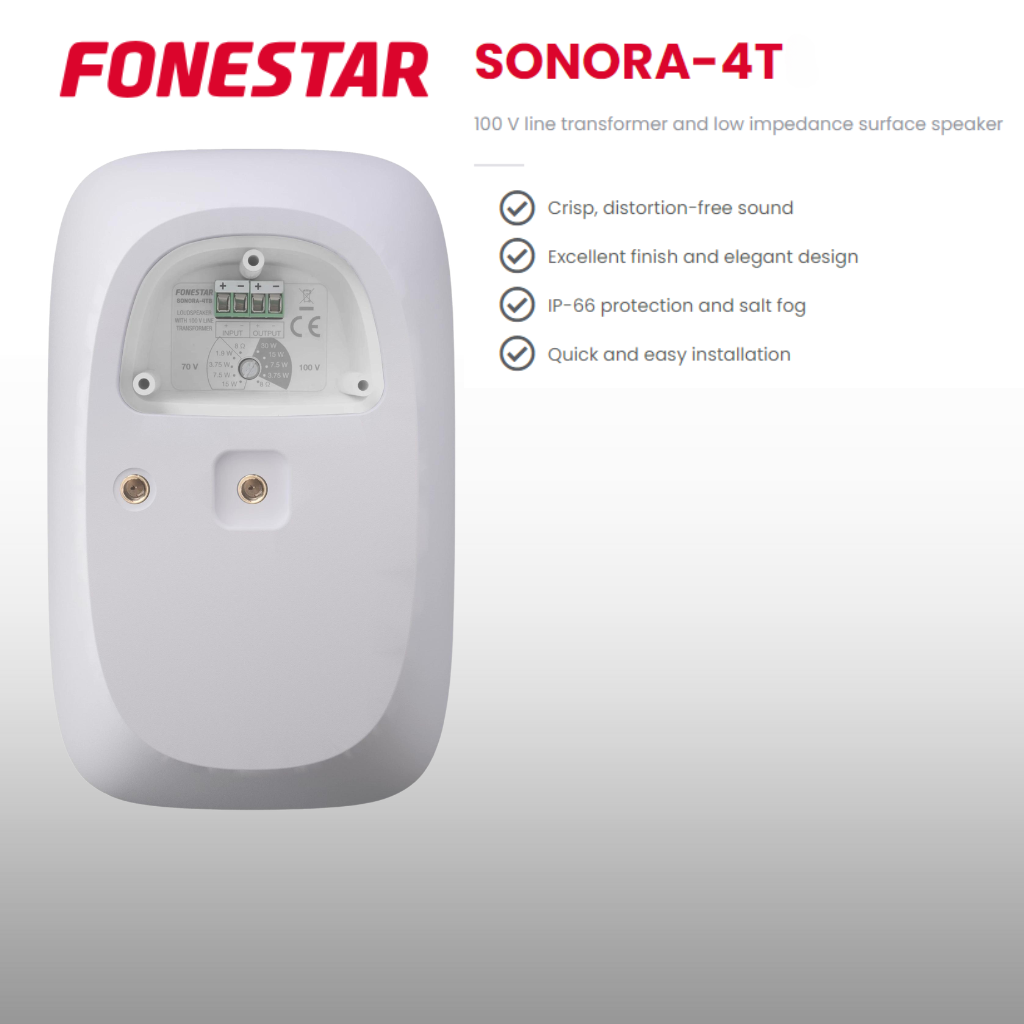

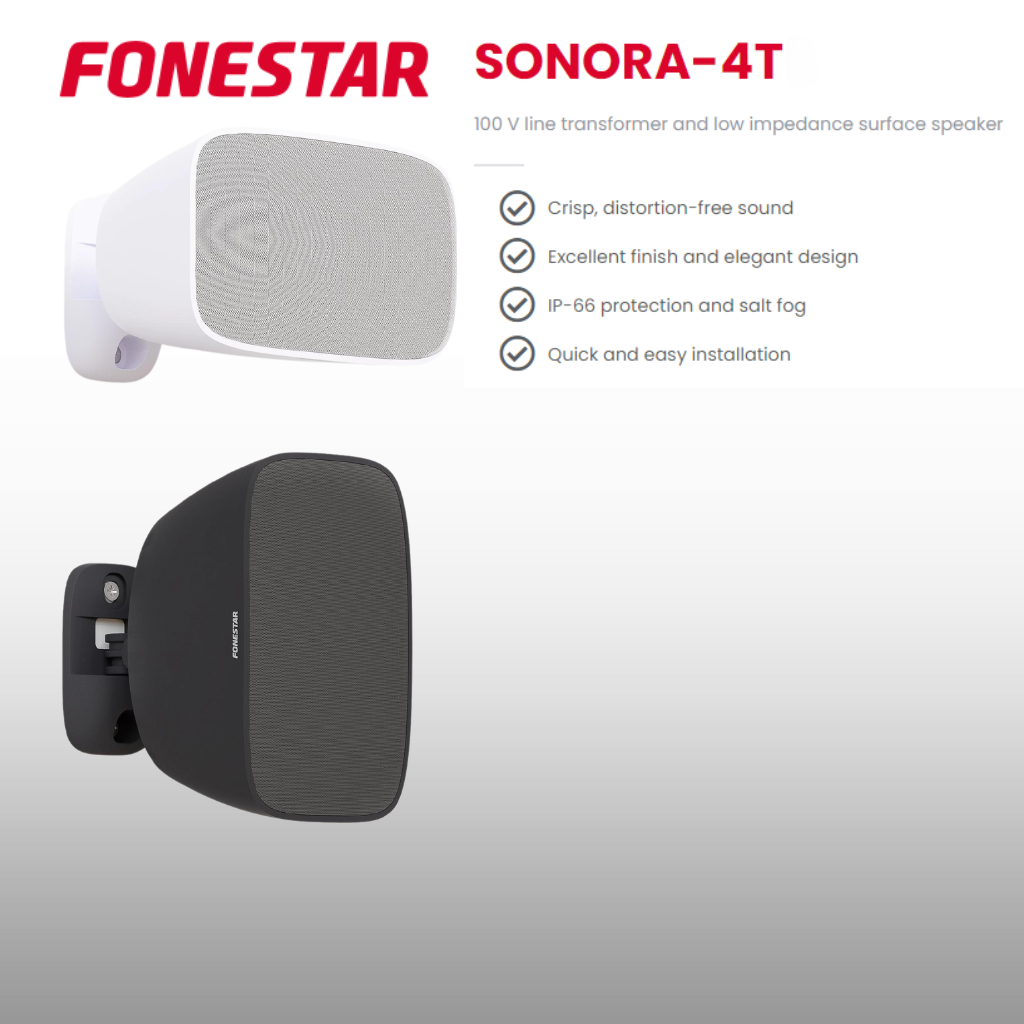

Fonestar SONORA-4T wall speakers (white or black)

FEATURES: Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.
POWER: 60 W max., 30 W RMS
LOUDSPEAKERS: 1 x 4" polypropylene woofer
1 x 1” tweeter
RESPONSE: 120-20,000 Hz
IMPEDANCE: 30 W RMS@100 V (333 Ω)
15 W RMS@100 V (667 Ω)
7.5 W RMS@100 V (1,333 Ω)
3.75 W RMS@100 V (2,667 Ω)
Low Z: 8 Ω
SENSITIVITY: 83 dB @ 1 W/1 m

MAXIMUM SOUND PRESSURE: 96 dB @ max. W/1 m
COVERAGE ANGLE: H/V: 215º/225º @500Hz, 145º/130º@1kHz, 115º/120º@2kHz, 80º/110º@4kHz (-6 dB)
PROTECTION: IP-66 in compliance with EN 60529
IEC 60068-2-11 Environmental tests (Saline mist)
MATERIAL: ABS
Aluminium mesh grille
Mount with weatherproof treatment
Stainless steel screws
SWITCH: W selector in high Z and low Z
CONNECTORS: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
TEMPERATURE RANGE: -10ºC ~ 60ºC
COLOUR: Black (RAL 9005)
DIMENSIONS: Loudspeaker: 125 x 202 x 125 mm depth
Mount wall plate: 68 x 110 mm
Loudspeaker with mount: 193 mm depth
WEIGHT: 1.5 kg
ACCESSORIES: Adjustable mounting bracket ± 60º in all directions.
Steel safety cable

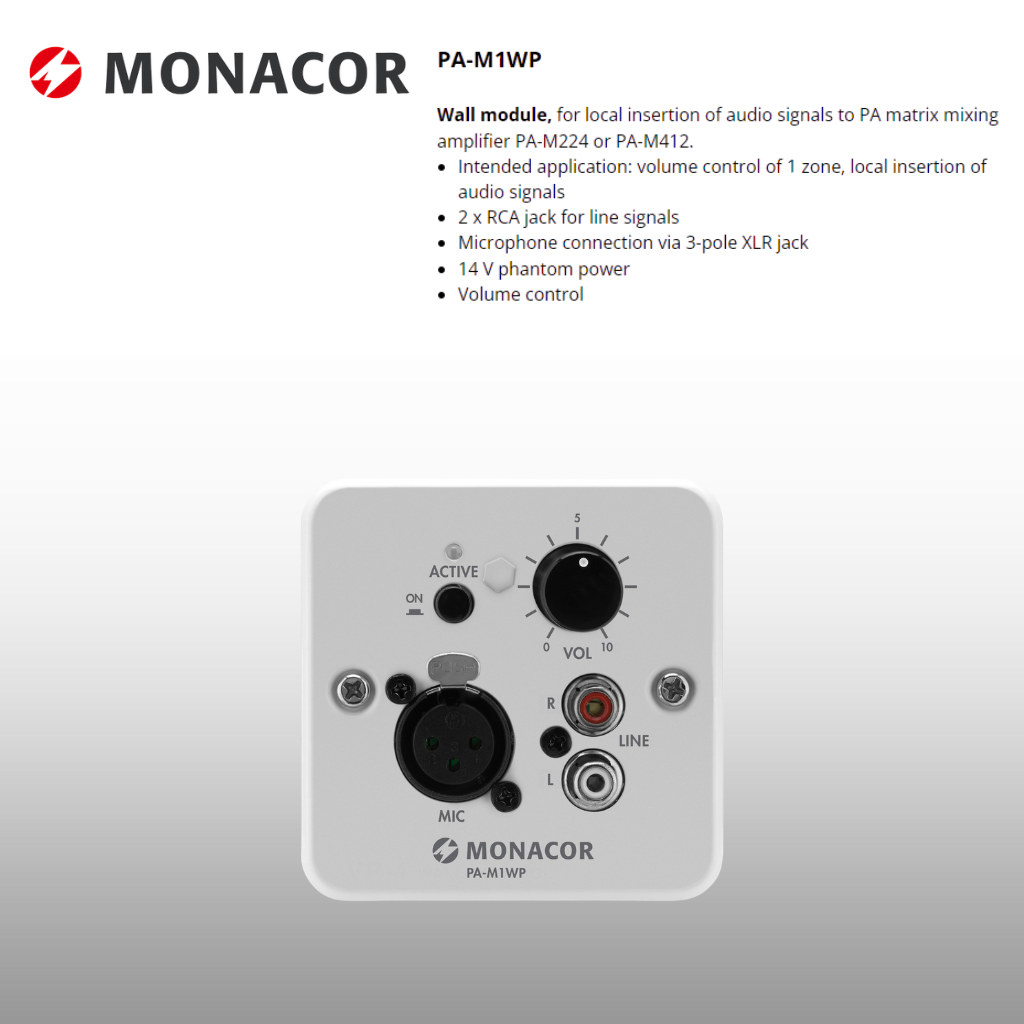

Monacor PA-M1WP wall panel

Description wall module
Type remote control of 1 zone
Colour white
Material plastic
Suitable for PA-M224, PA-M412
Power supply via PA-M224, PA-M412
Dimensions 80 x 80 x 50 mm
Weight 90 g
Connections 1 x XLR (microphone),
1 x RCA L/R (line),

1 x RJ45

Other features 14 V phantom power
Packing unit 1
Packing dimensions (W x H x L) 0.09 x 0.09 x 0.085 m
Gross weight 0.135 kg
Net weight 0.09 kg

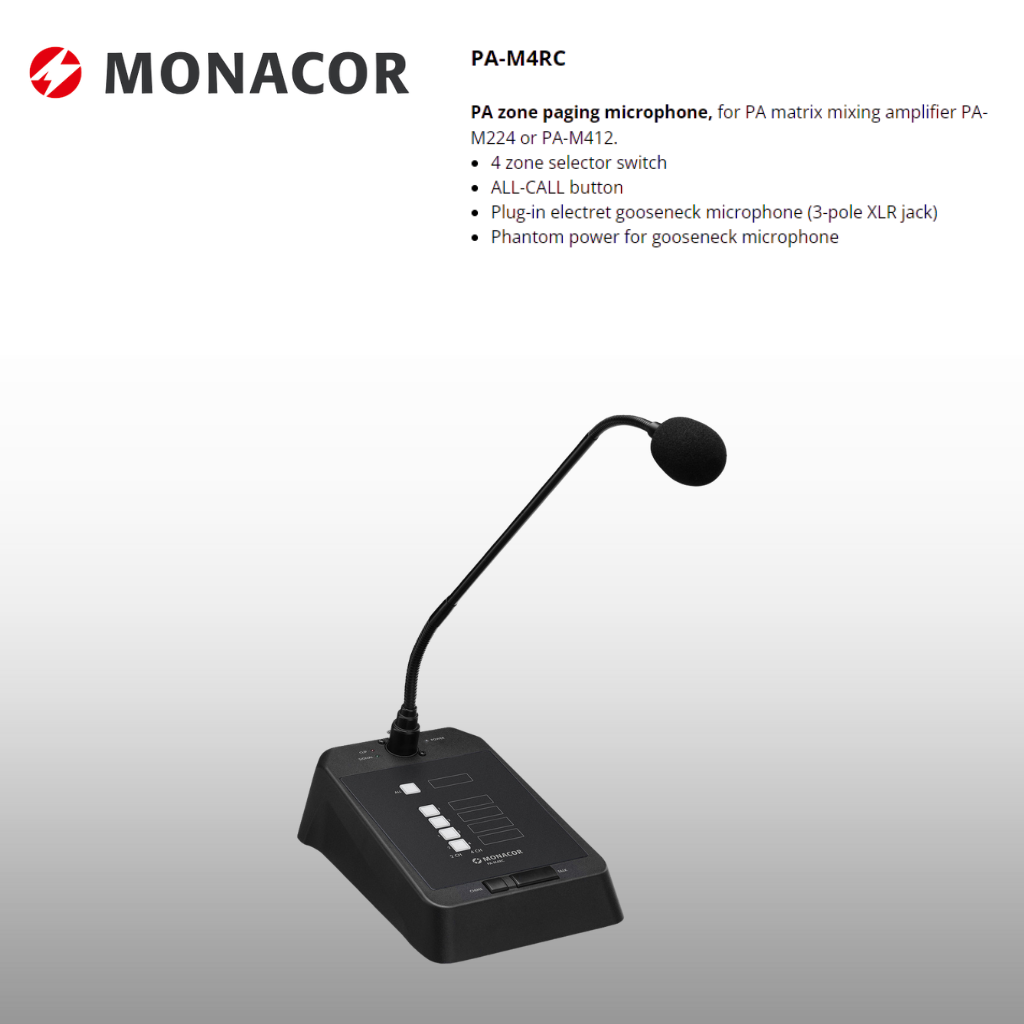

Monacor PA-M4RC paging microphone

Description PA zone paging microphone
Transmission method cable
System electret
Power supply via PA-M224, PA-M412
Audio frequency range 45-15,000 Hz
Sensitivity 1 mV/Pa
Gooseneck length 420 mm
Admiss. ambient temp. 0-40 °C
Dimensions 140 x 65 x 205 mm
Weight 860 g
Connection RJ45
Packing dimensions (W x H x L) 0.1 x 0.21 x 0.35 m
Gross weight 1.09 kg
Net weight 0.86 kg

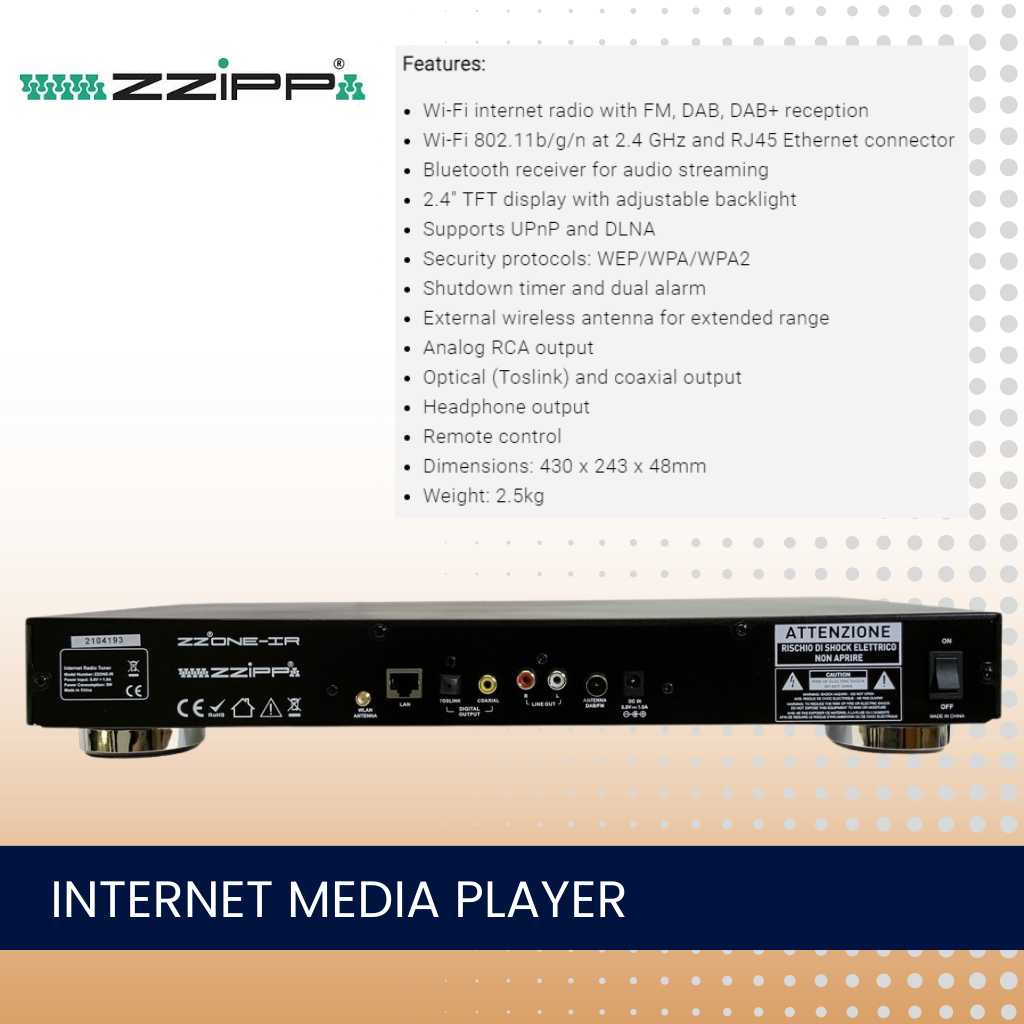

ZZiPP ZZONE-IR internet media player

Wi-Fi internet radio with FM, DAB, DAB+ reception
Wi-Fi 802.11b/g/n at 2.4 GHz and RJ45 Ethernet connector
Bluetooth receiver for audio streaming
2.4" TFT display with adjustable backlight
Supports UPnP and DLNA
Security protocols: WEP/WPA/WPA2
Shutdown timer and dual alarm
External wireless antenna for extended range
Analog RCA output
Optical (Toslink) and coaxial output
Headphone output
Remote control
Dimensions: 430 x 243 x 48mm
Weight: 2.5kg
