4-Zone Professional Matrix Amplifier Ceiling Speaker Package Up To 64 Speakers Background Music System

Name: 4-Zone Professional Matrix Amplifier Ceiling Speaker Package Up To 64 Speakers Background Music System
Brand: Commerical Audio Outlet
SKU: 4Z8SP-MATRIXPRO
Price: 1449.0 GBP
Availability: InStock

4-Zone Professional Matrix Amplifier Ceiling Speaker Package Up To 64 Speakers Background Music System

SKU:4Z8SP-MATRIXPRO

£1,449.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Speaker Colour White Black

Speakers 8 16 32 64

Optional Extras None Internet Media Player

Product variants

Quantity

This premium ceiling speaker background music system is the perfect solution for high quality background music at an affordable price.

The rack mountable professional 4-zone matrix amplifier is easy to use and has inputs for LINE and MIC sources.

Choose from 8 to 64 high quality flush-mount ceiling speakers, in white or black, which produce clear and crisp sound whilst blending in with their surroundings.

The package includes 4 wall modules to allow local connection of a LINE or MIC source to the system and zonal volume control.

It also includes a paging mic to make zonal announcements

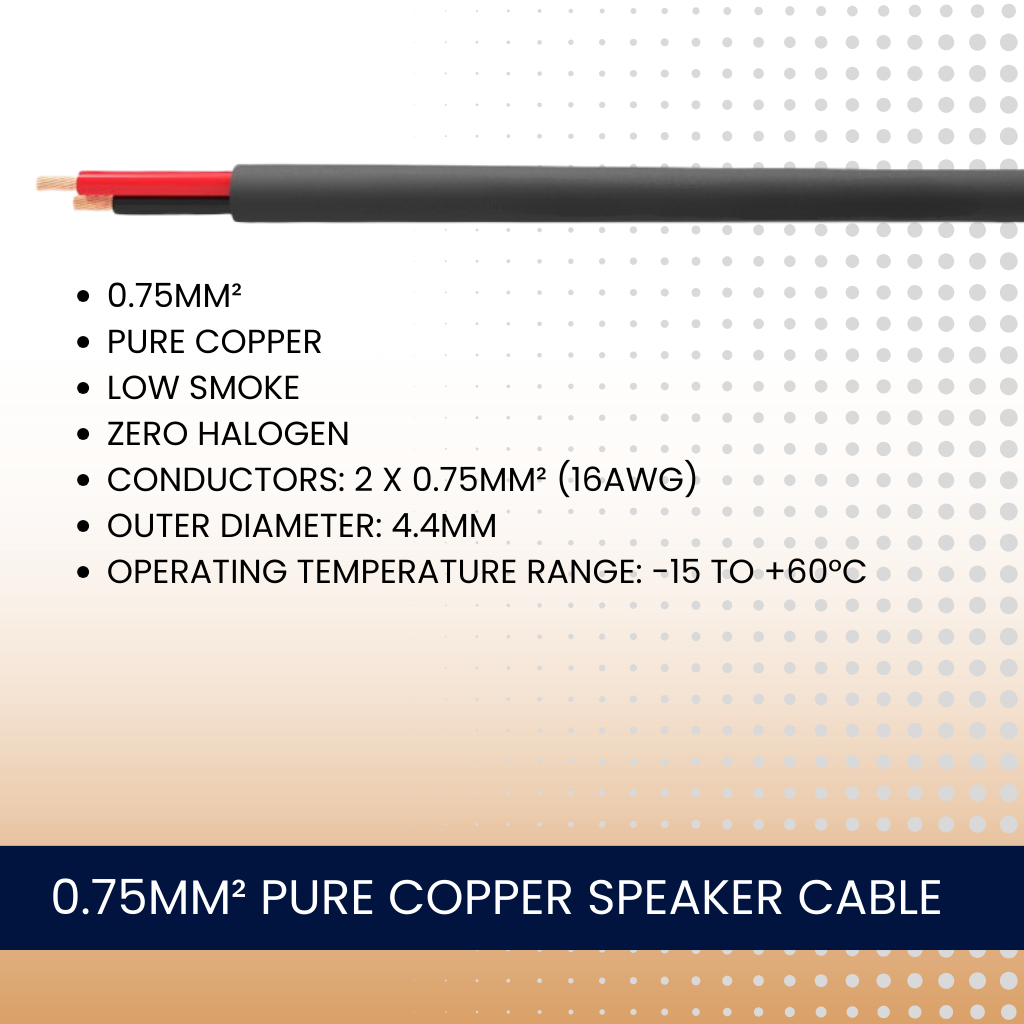

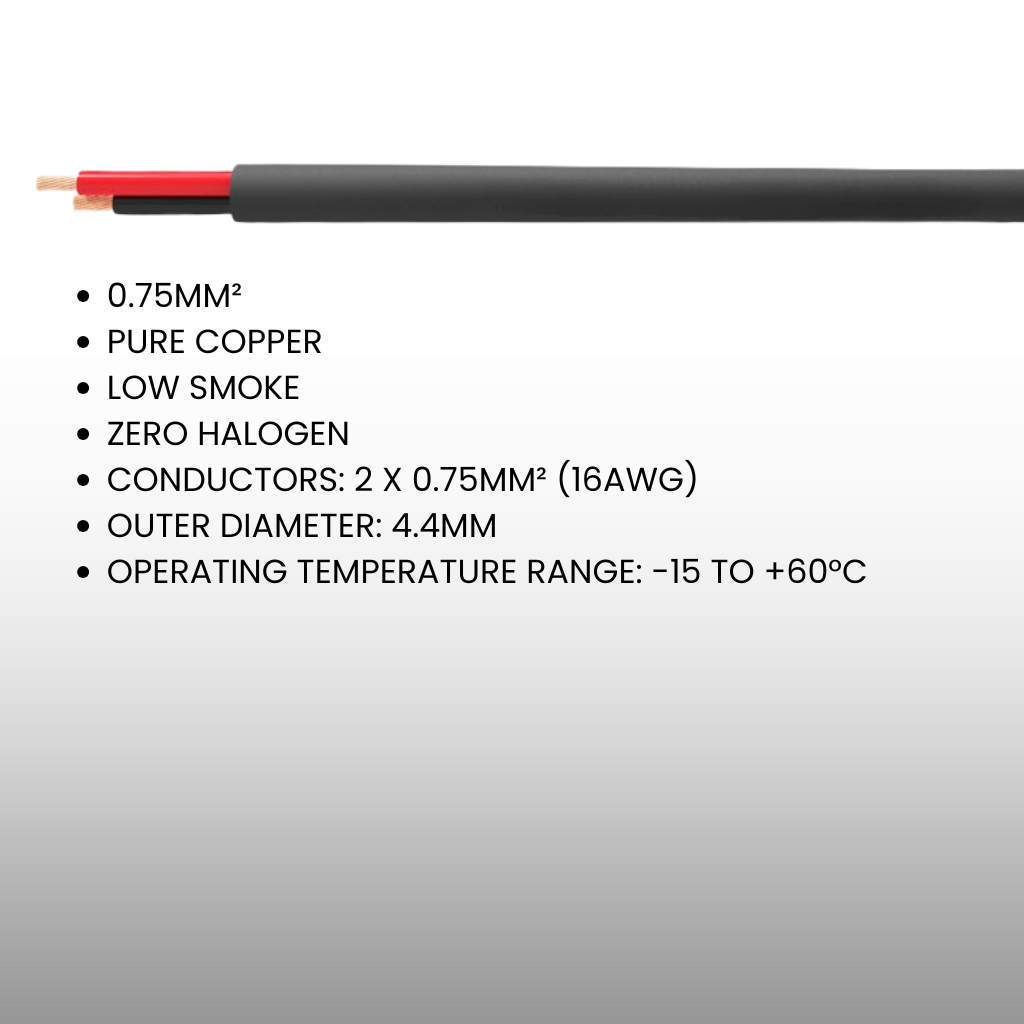

100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable is included for easy installation.

Add an optional internet media player to stream and Bluetooth music to your system.

Features

High quality professional background music system
Affordable price
Rack mountable 4-zone matrix amplifier
LINE and MIC inputs
Local source connection
Zonal volume control
Zonal announcements
High quality flush mount ceiling speakers
0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

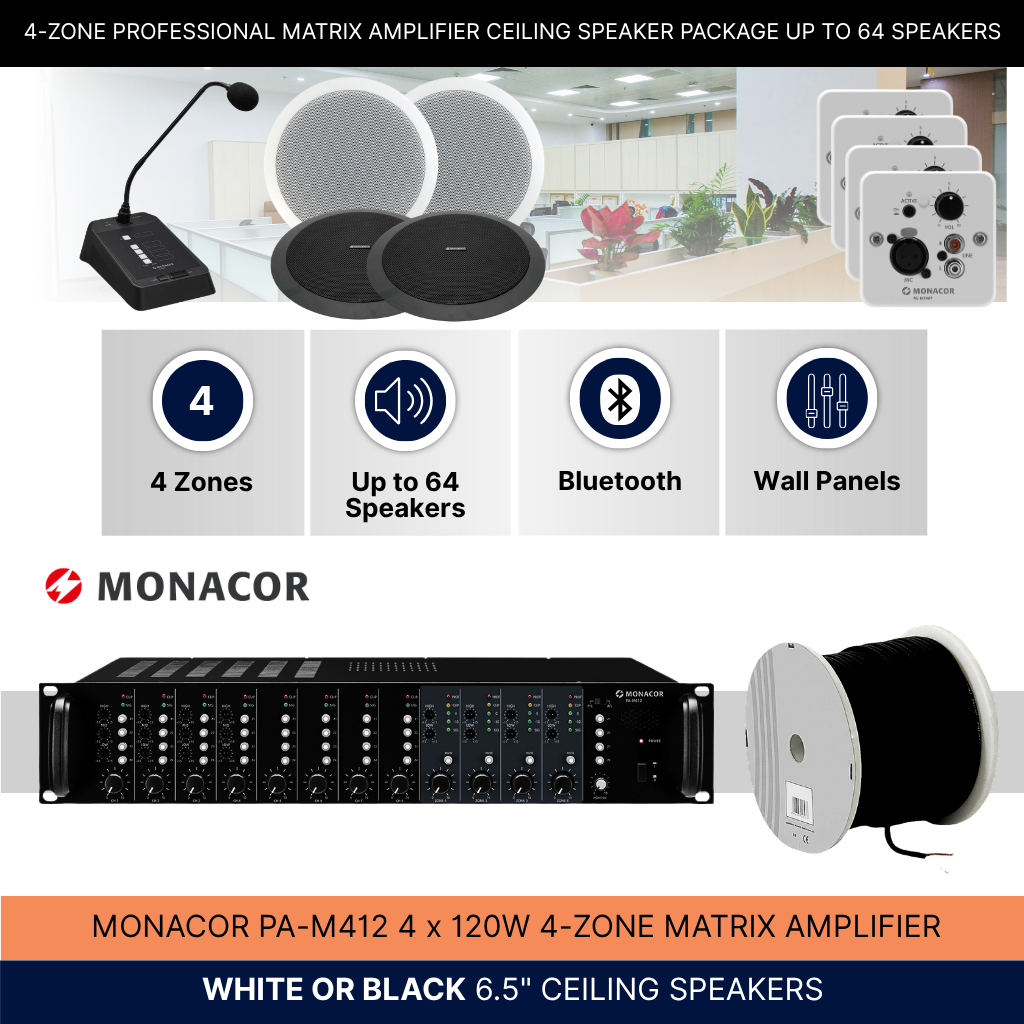

Included

Monacor PA-M412 4-zone matrix amplifier
8 to 64 Fonestar GAT-601 (white) or Omnitronic CS-6 (black) flush-mount speakers
4 Monacor PA-M1WP wall panels
Monacor PA-M4RC paging microphone
100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Optional Extras

ZZiPP ZZONE-IR internet media player

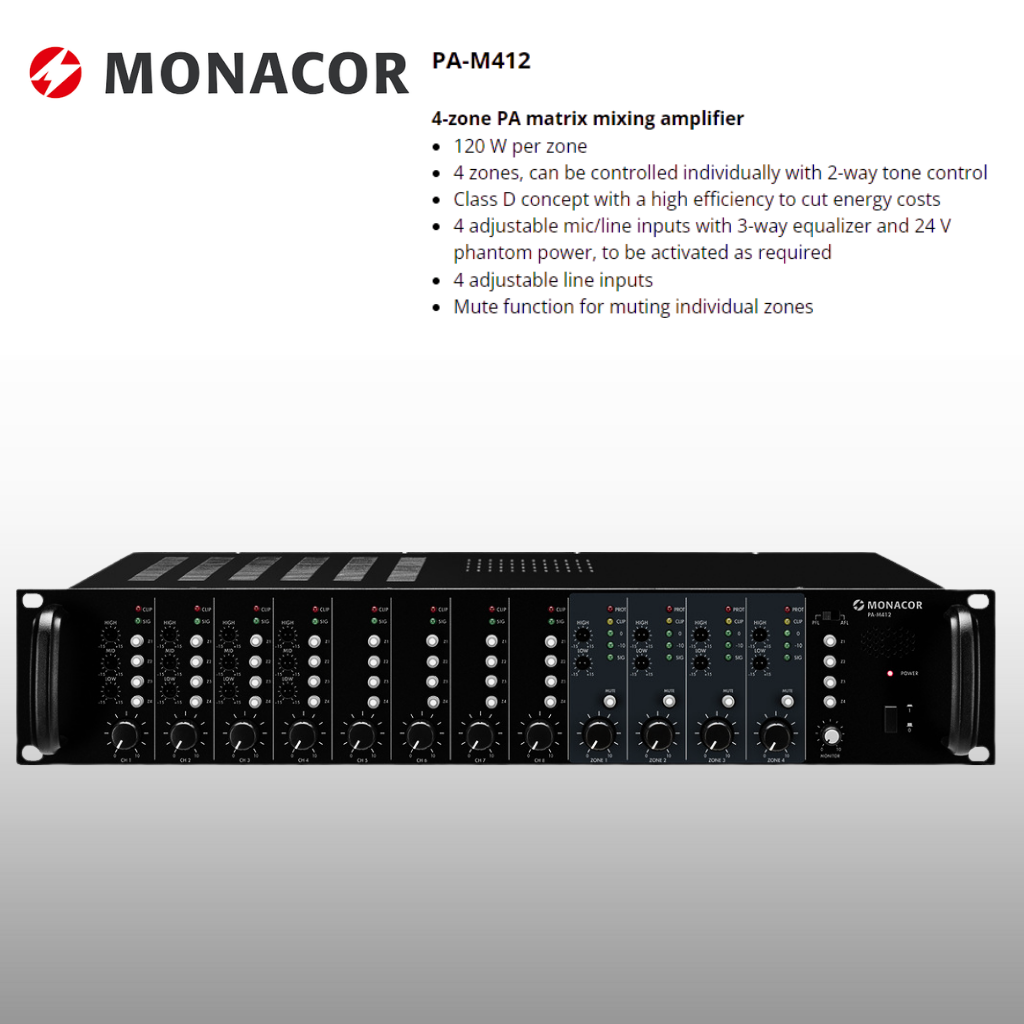

Amplifier Specification

Monacor PA-M412 4-zone matrix amplifier

Peak output power 4 x 170 W
Power rating 4 x 120 W
Channels 8
Zones 4
Inputs 2.5 mV/20 kΩ (mic),
2 V/20 kΩ (line)

Frequency range 20-20,000 Hz
Equalizer bass ±12 dB/80 Hz (channels 1-4)
±15 dB/80 Hz (zones 1-4)

Equalizer midrange ±12 dB/2.5 kHz (channels 1-4)
Equalizer treble ±12 dB/12.5 kHz (channels 1-4)
±15 dB/12 kHz (zones 1-4)

S/N ratio > 70 dB
THD < 0.1%
Phantom power 24 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 860 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 88 mm
Depth 320 mm
Rack units, RU 2
Weight 6.2 kg

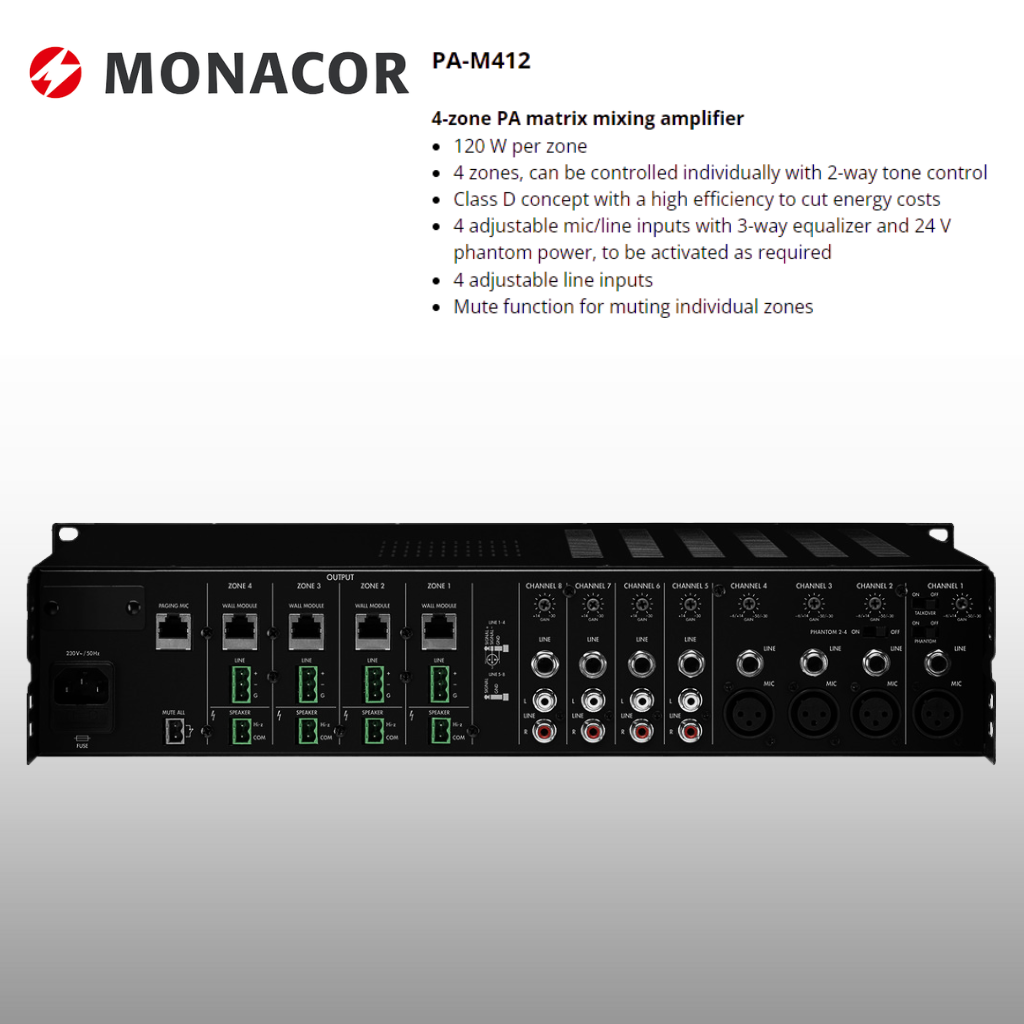

Connections 4 x XLR, bal. (mic 1-4),
4 x 6.3 mm jack (line 1-4),

4 x 6.3 mm jack (line 5-8),

4 x RCA L/R (line 5-8),

1 x RJ45 (push-to-talk microphone),

4 x RJ45 (remote in),

screw terminal (speakers)

Packing dimensions (W x H x L) 0.4 x 0.53 x 0.17 m
Gross weight 7.37 kg
Net weight 6.21 kg

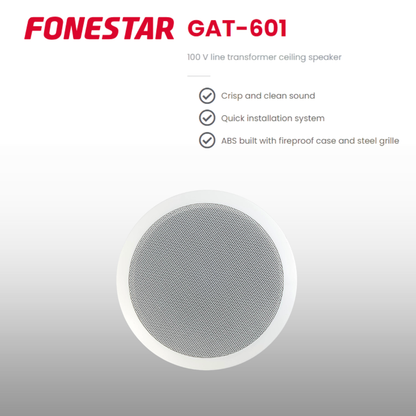

Speaker Specification

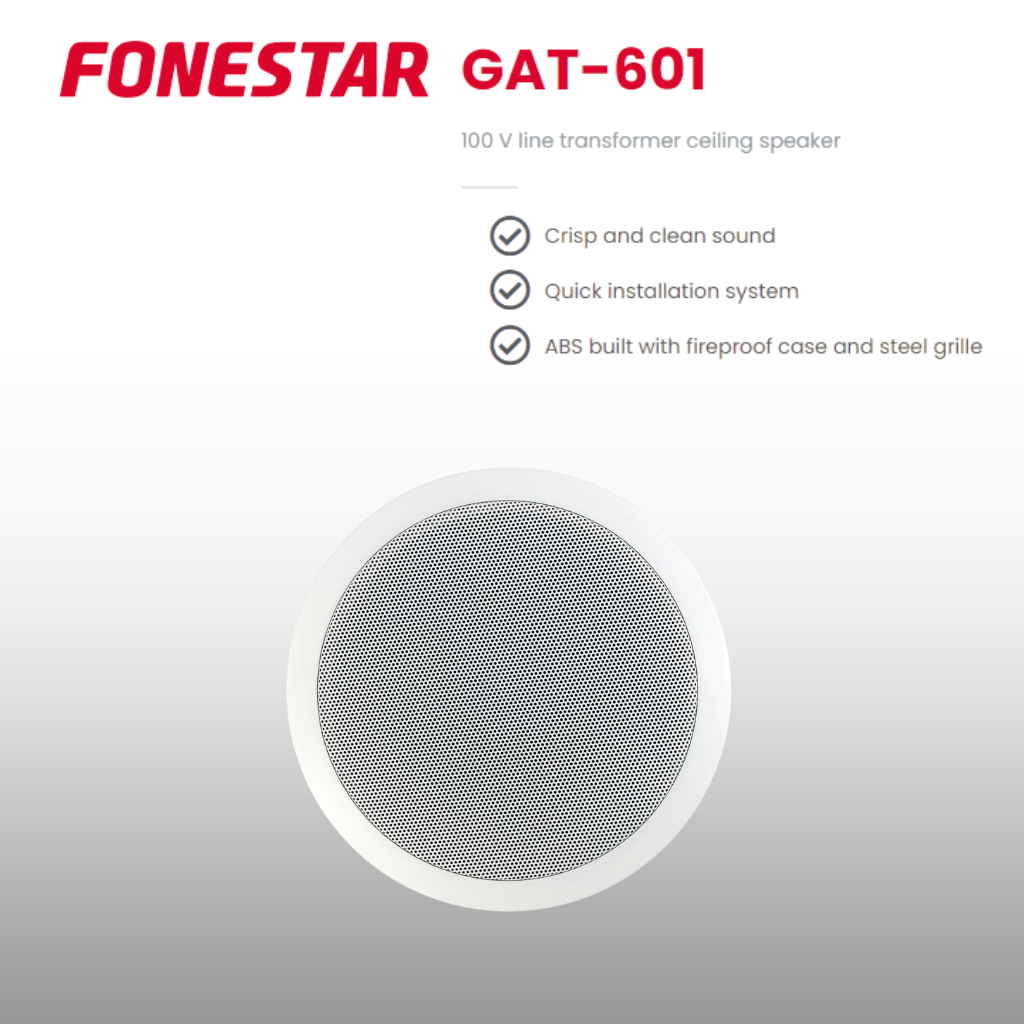

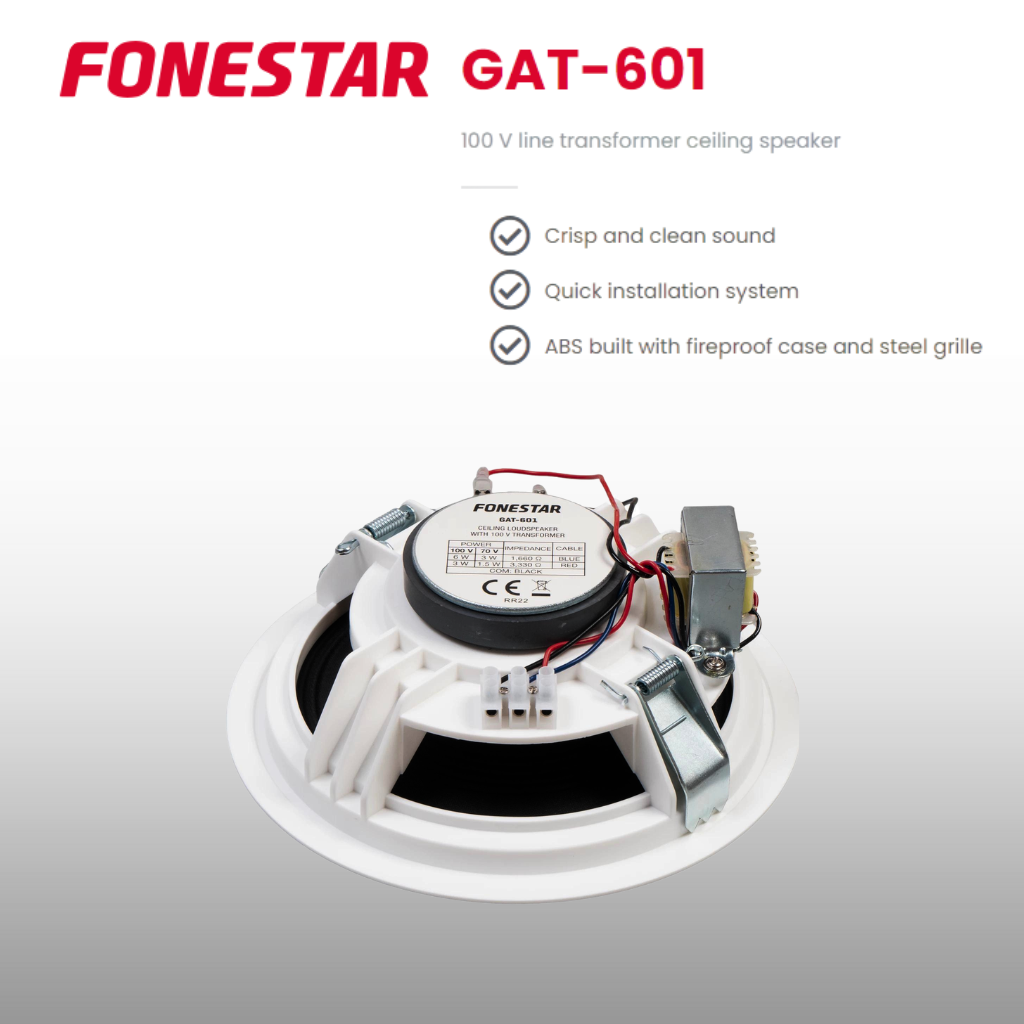

Fonestar GAT-601 flush-mount speakers (white)

FEATURES: Ceiling loudspeaker with 100 V line transformer and round grille.
POWER: 10 W maximum, 6 W RMS
LOUDSPEAKERS: 6 ½" double cone
RESPONSE: 140-20,000 Hz
IMPEDANCE: 6 W RMS@100V (1,660 Ω)
3 W RMS@100V (3,330 Ω)
SENSITIVITY: 92 dB ±3 dB at 1 W/1 m
MATERIAL: ABS and steel grille
COLOUR: White (RAL 9003)
DIMENSIONS: 188 mm Ø x 80 mm depth
HOLE: 168 mm Ø
WEIGHT: 0.6 kg
: Rapid installation system

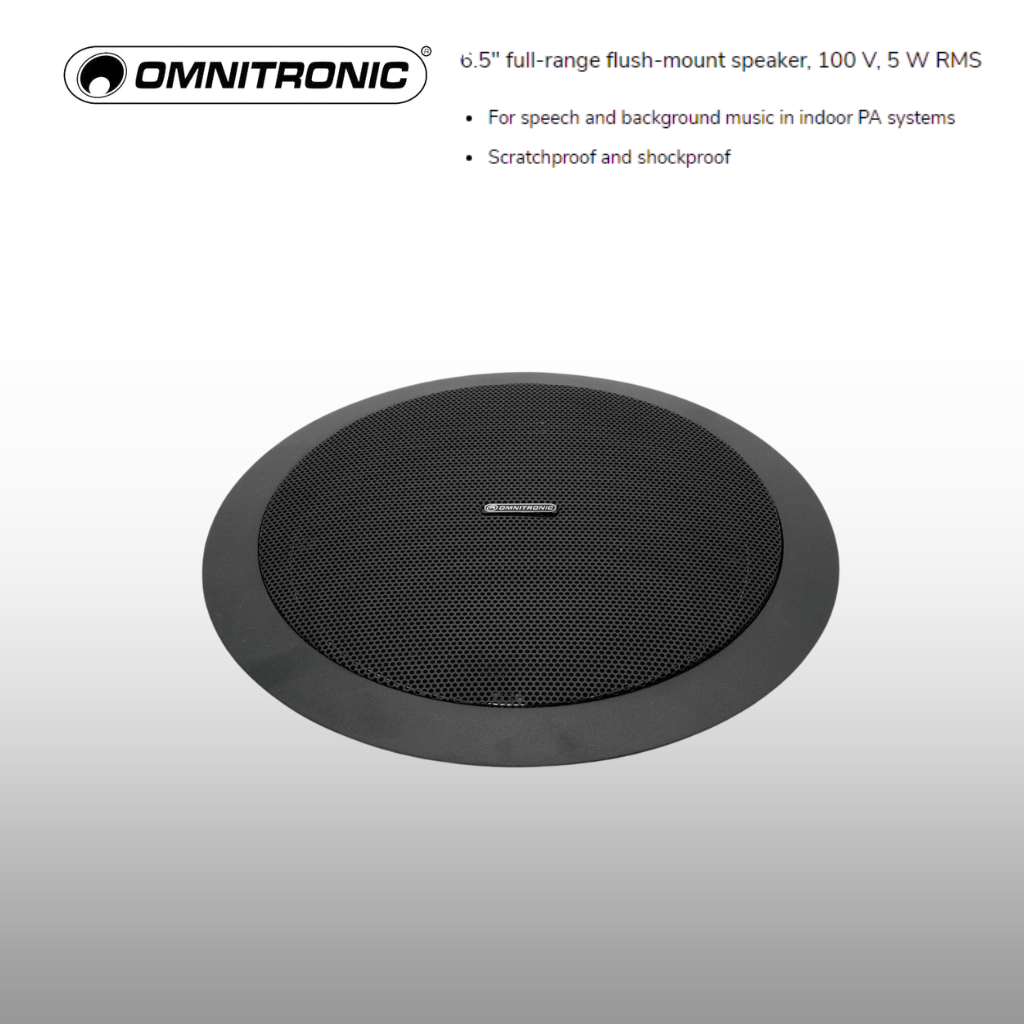

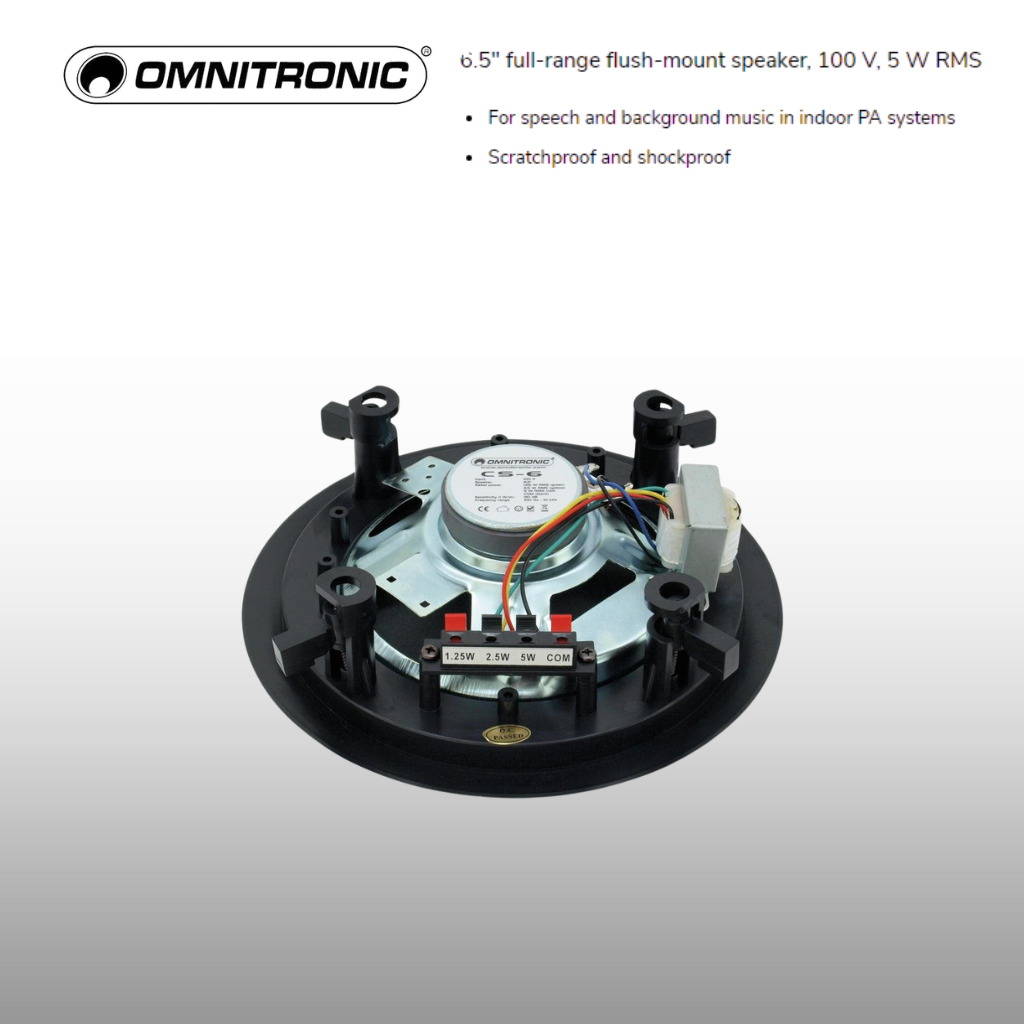

Omnitronic CS-6 ceiling speakers (black)

Power: Program: 10W
Rated: 5W RMS
Frequency range: 100 - 10000 Hz
Sensitivity: 90 dB (1W/1m)
Impedance: Public address systems 100V
Power tapping: 1,25W; 2,5W; 5W RMS via Spring terminal switchable
Speaker: 1 x woofer (6.5") approx. 17 cm
Type of speaker: Flush-mount speaker
Material: ABS Acrylonitrile butadiene styrene
Color: White, scratchproof and shockproof
Mounting dimensions: Ø 19,5 cm
Dimensions: Depth: 7 cm
Diameter: Ø 23 cm
Weight: 890 g

Wall Panel Specification

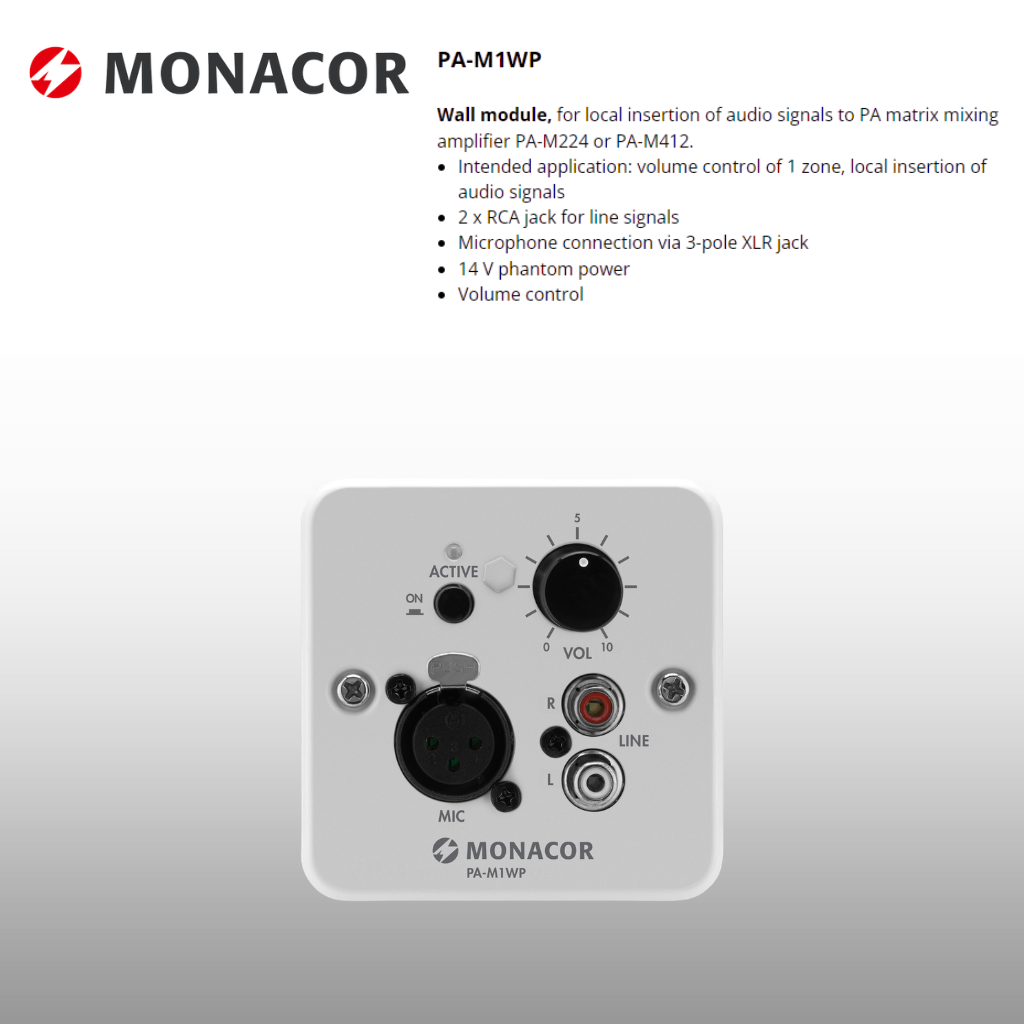

Monacor PA-M1WP wall panel

Description wall module
Type remote control of 1 zone
Colour white
Material plastic
Suitable for PA-M224, PA-M412
Power supply via PA-M224, PA-M412
Dimensions 80 x 80 x 50 mm
Weight 90 g
Connections 1 x XLR (microphone),
1 x RCA L/R (line),

1 x RJ45

Other features 14 V phantom power
Packing unit 1
Packing dimensions (W x H x L) 0.09 x 0.09 x 0.085 m
Gross weight 0.135 kg
Net weight 0.09 kg

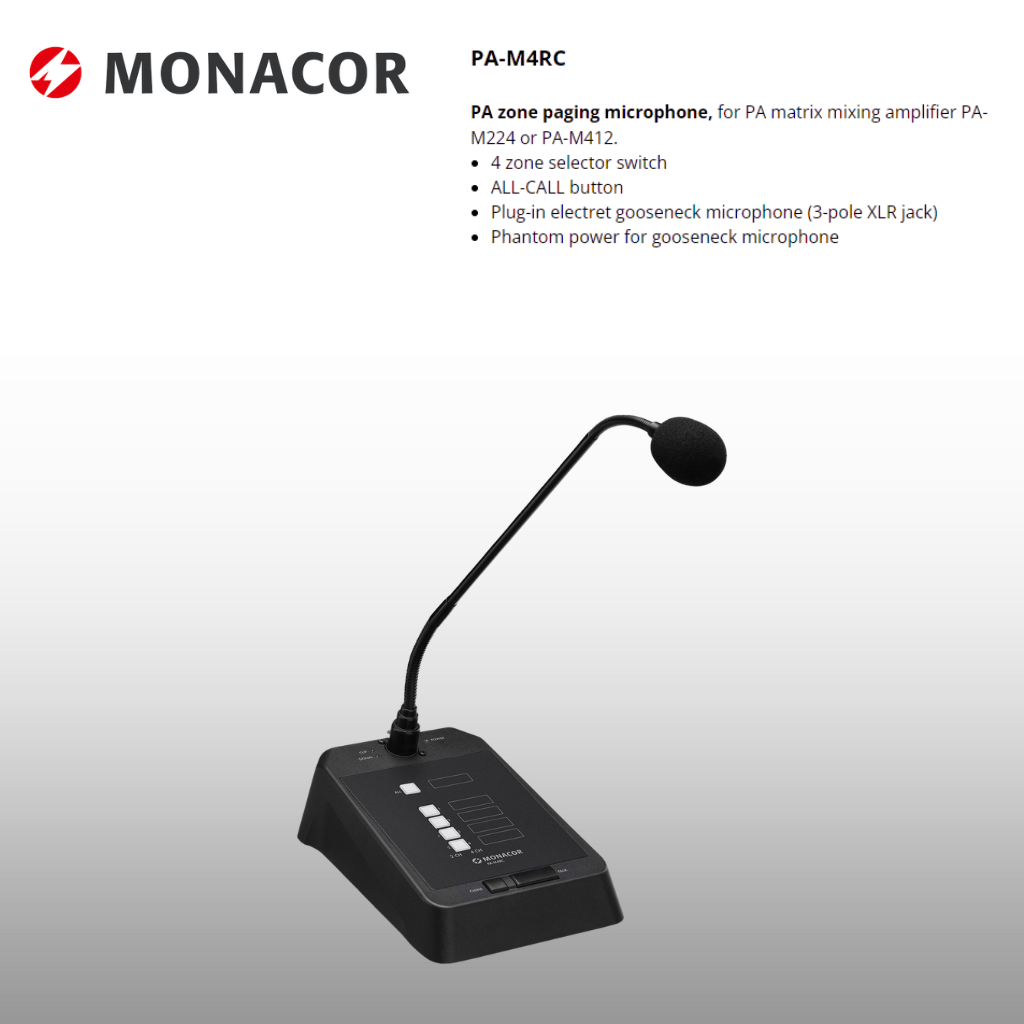

Paging Microphone Specification

Monacor PA-M4RC paging microphone

Description PA zone paging microphone
Transmission method cable
System electret
Power supply via PA-M224, PA-M412
Audio frequency range 45-15,000 Hz
Sensitivity 1 mV/Pa
Gooseneck length 420 mm
Admiss. ambient temp. 0-40 °C
Dimensions 140 x 65 x 205 mm
Weight 860 g
Connection RJ45
Packing dimensions (W x H x L) 0.1 x 0.21 x 0.35 m
Gross weight 1.09 kg
Net weight 0.86 kg

Internet Media Player Specification

ZZiPP ZZONE-IR internet media player

Wi-Fi internet radio with FM, DAB, DAB+ reception
Wi-Fi 802.11b/g/n at 2.4 GHz and RJ45 Ethernet connector
Bluetooth receiver for audio streaming
2.4" TFT display with adjustable backlight
Supports UPnP and DLNA
Security protocols: WEP/WPA/WPA2
Shutdown timer and dual alarm
External wireless antenna for extended range
Analog RCA output
Optical (Toslink) and coaxial output
Headphone output
Remote control
Dimensions: 430 x 243 x 48mm
Weight: 2.5kg
