OMNITRONIC UHF-304 4-Channel Wireless Receiver
- 4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
- 93 preset channels in 10 channel groups
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LEDs for carrier and audio signal
- 4 separate channels with volume controls
- Balanced XLR output per channel
- Detachable BNC antennas
- 4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- Operating range up to 60m with line-of-sight
- LCD display
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Power supply: 100-240 V AC, 50/60 Hz
12 V DC 500 mA
Power consumption: 6 W
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels: 4
Frequency range: 50 - 18,000 Hz
S/N ratio: >80 dB
THD: <0,5 % at 1 kHz
Display type: LCD display
Display: Chanal , frequency , goup
Control elements: Power switch, level control, encoder
Status LED: Power, signal, level meter

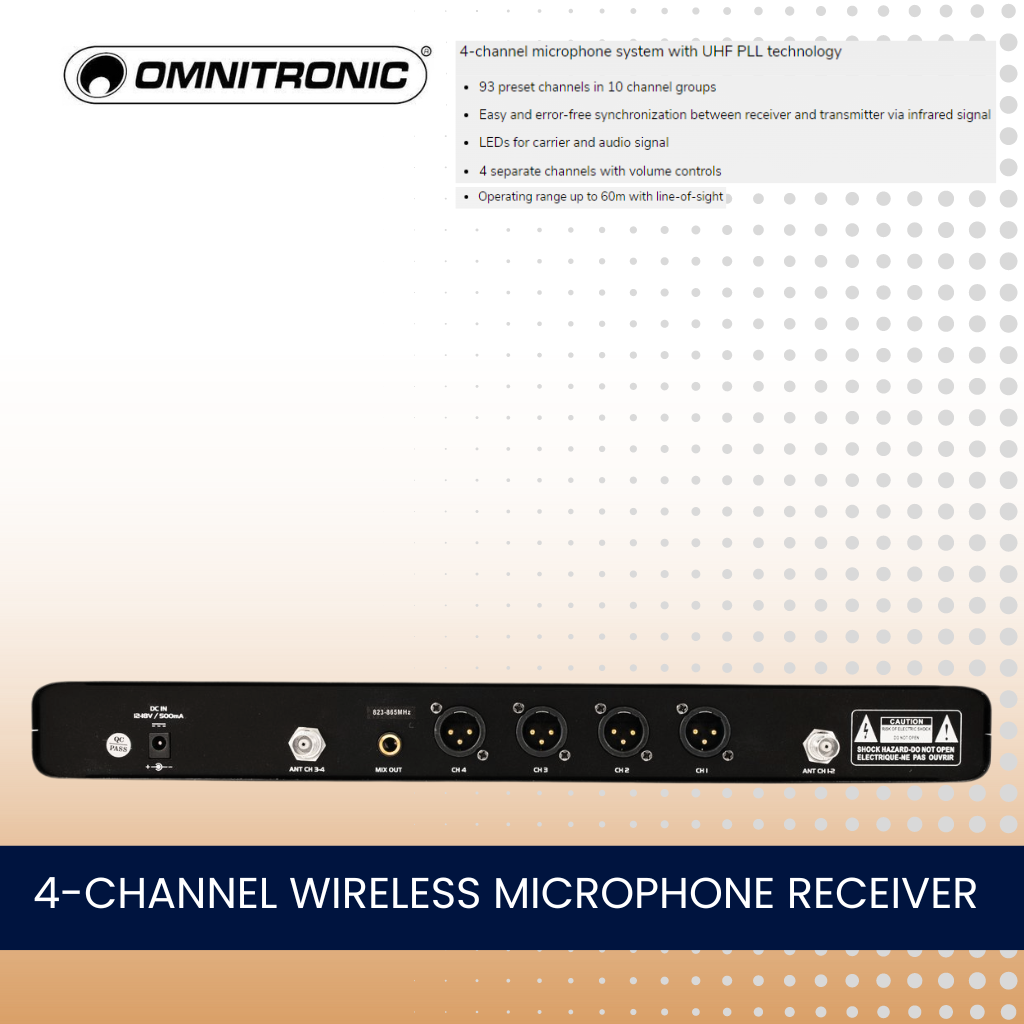

Connections: Input: antenna via 2 x BNC (F)
Output: line via 1 x 6.3 mm plug (unbal.)
Output: Microphone via 4 x 3-pin XLR
Material: Metal
Housing design: Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions: Width: 41 cm
Depth: 23,5 cm
Height: 4,7 cm
