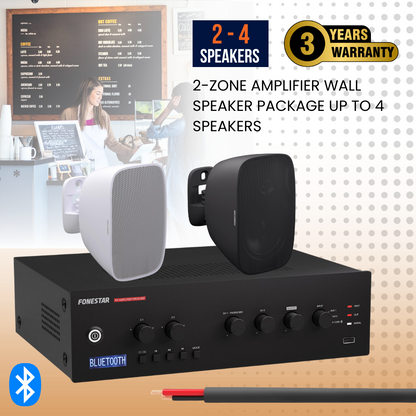

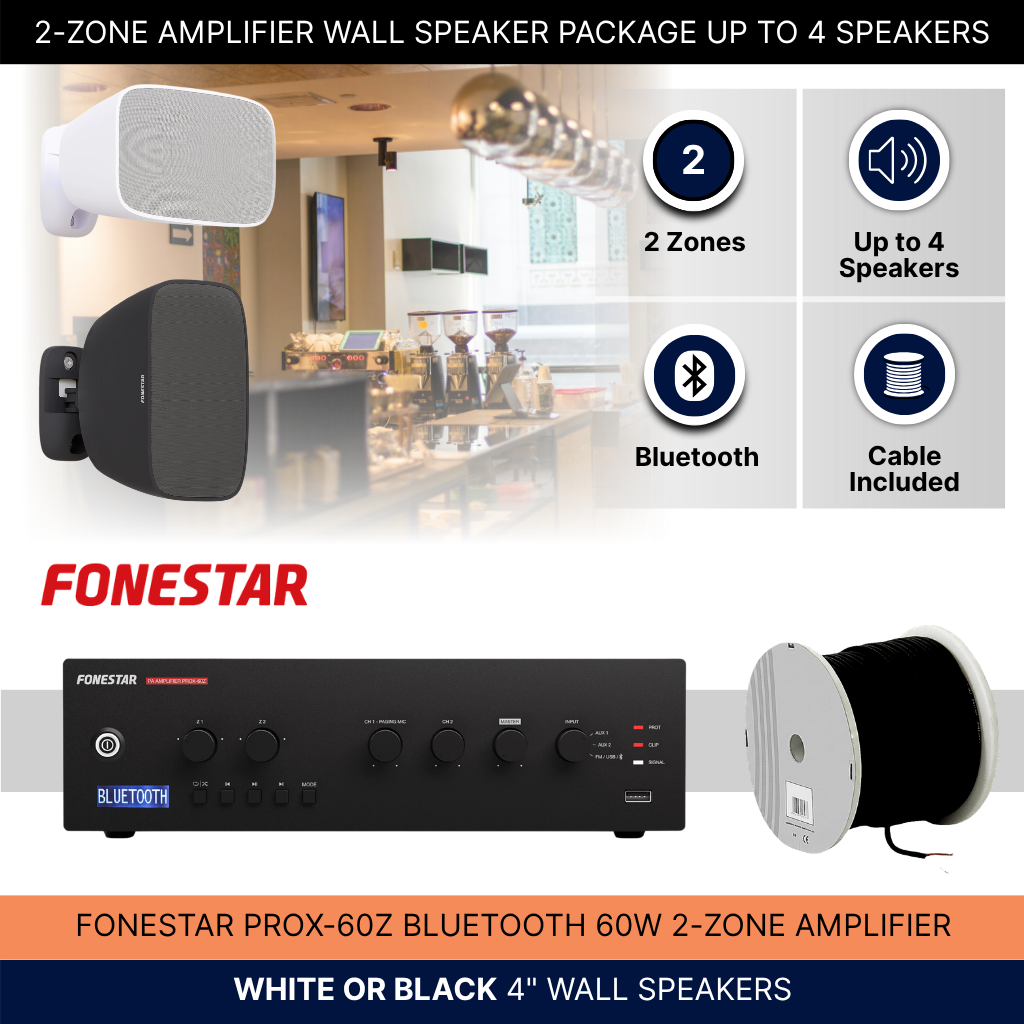

2-Zone Amplifier Wall Speaker Package Up To 4 Speakers Background Music System

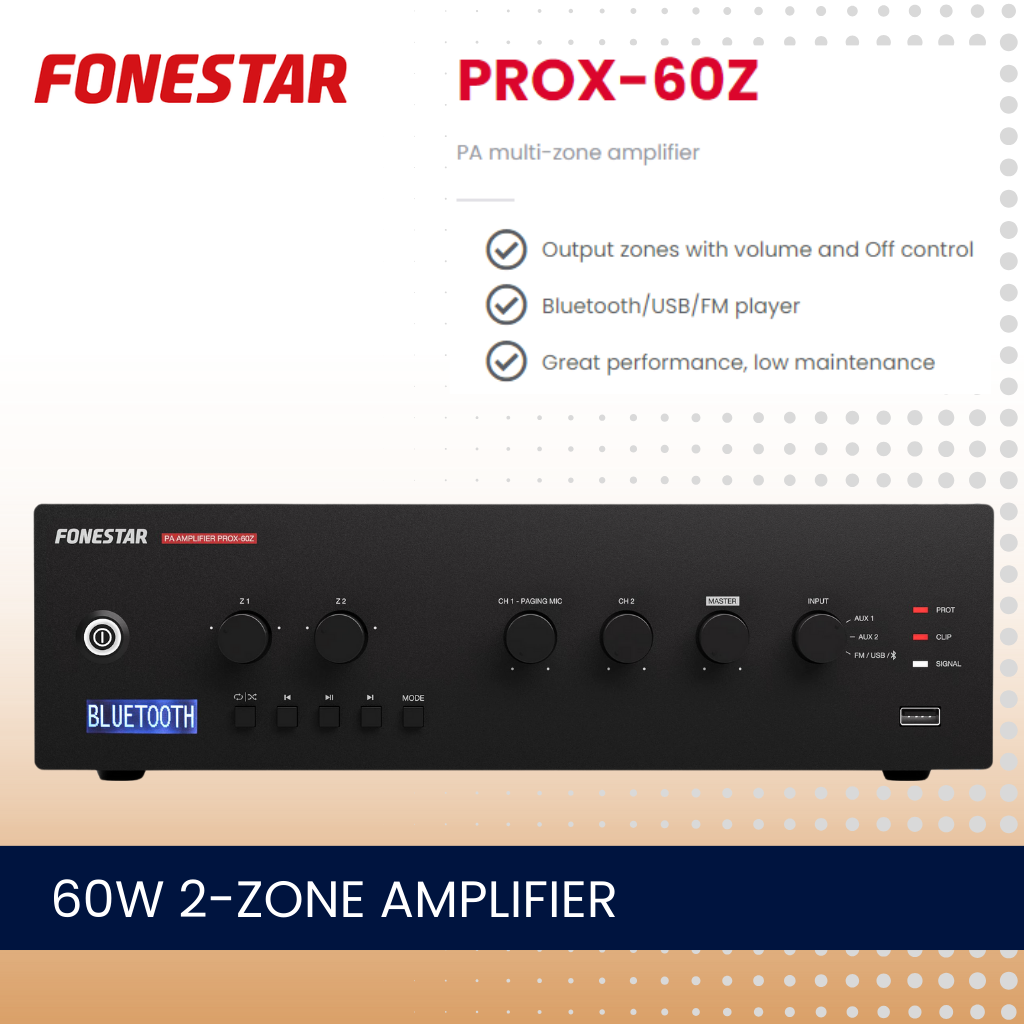

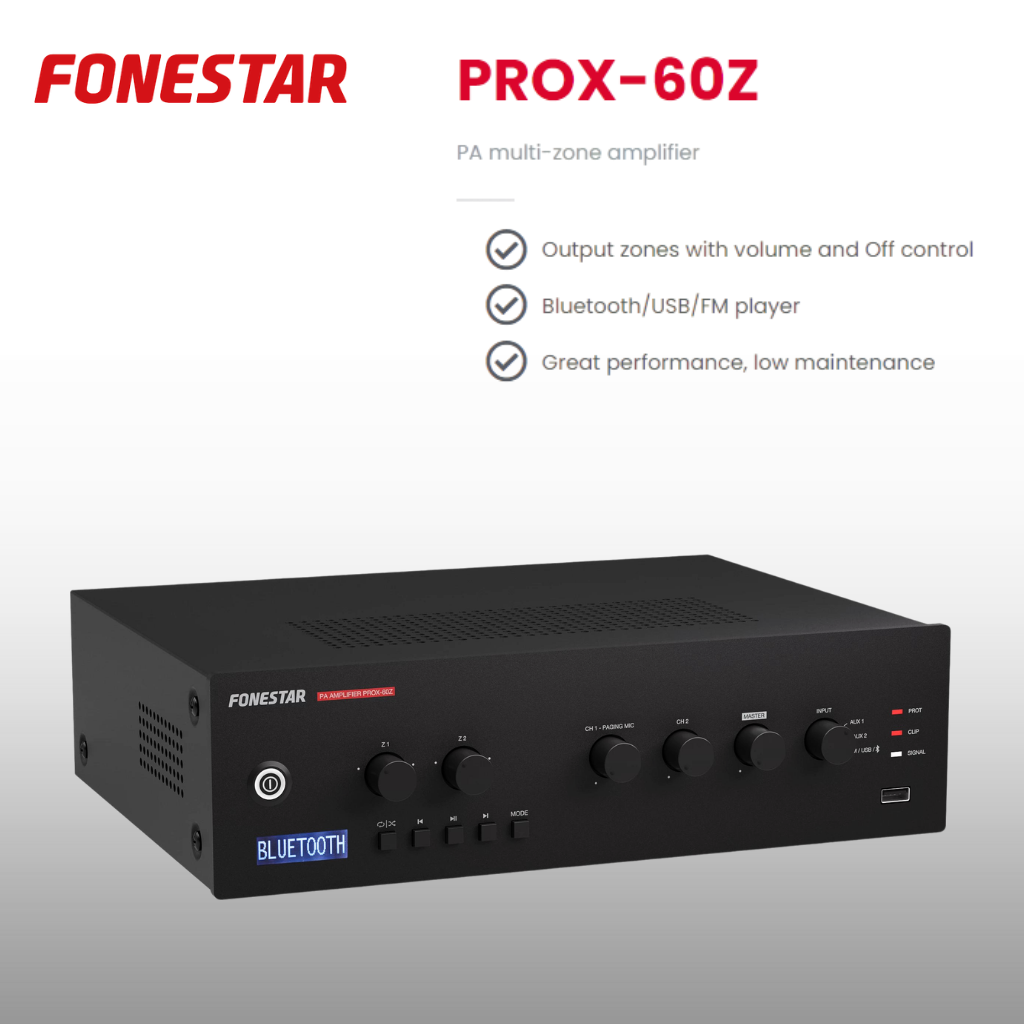

Fonestar PROX-60Z 2-zone amplifier

FEATURES: Public Address Amplifier
Bluetooth/USB/FM player.
Microphone inputs with mix, gain and priority level control.
Input priorities by signal level.
Tone controls.
100 V and 4 Ω outputs.
2 output zones with volume and Off control.
POWER: 60 W RMS
RESPONSE: 60-20,000 Hz (-10 dB)
DISTORTION: THD+N: < 1% @ 1 kHz
S/N RATIO: >77 dB
PROTECTIONS: Overcurrent, DC and short-circuit at the output

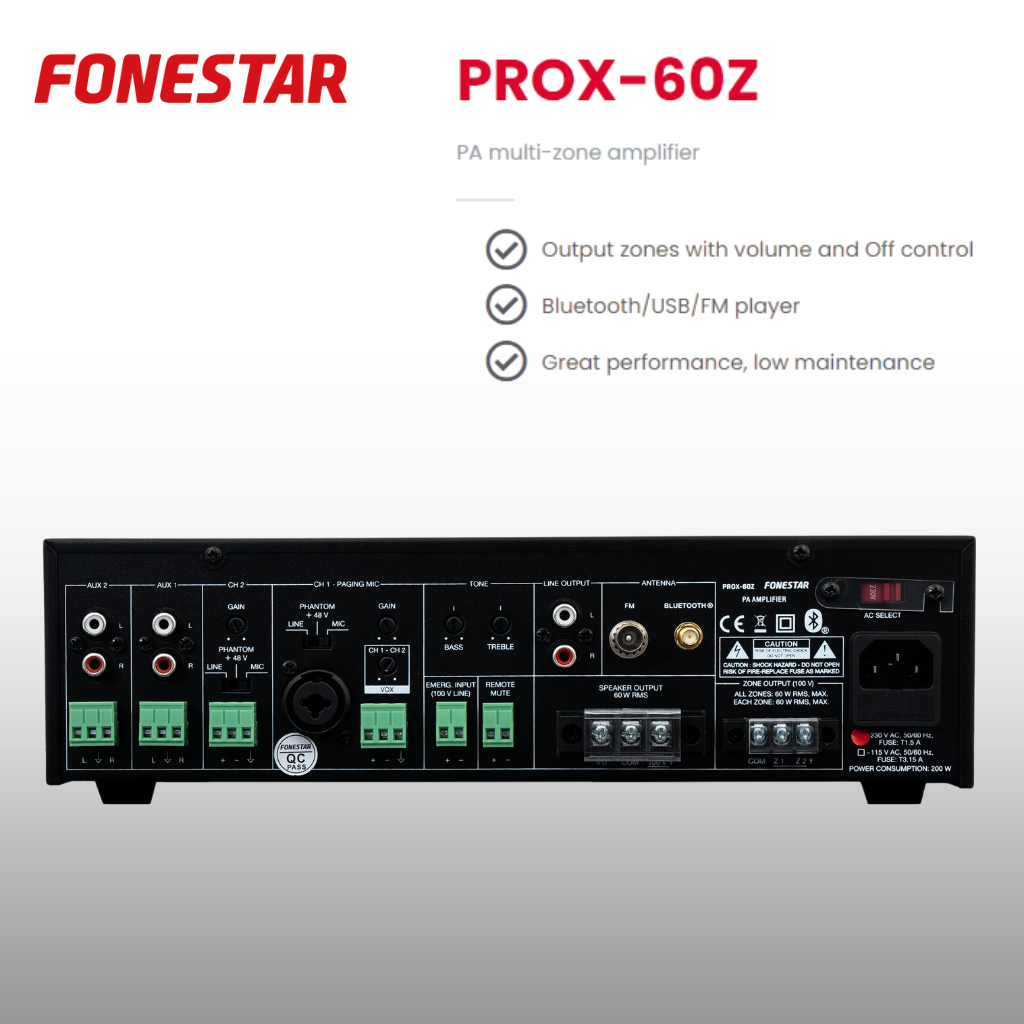

INPUTS: CH 1 balanced mic/line with 48 V Phantom, Combo (XLR + 6.3 mm) and euroblock.
CH 2 balanced mic/line with 48 V Phantom, Euroblock connector.
Mic signal level: 6 mV RMS (-44 dBV)/600 Ω
Line signal level: 250 mV RMS (-12 dBV)/100 kΩ
2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV)/47,000 Ω
1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
1 Mute (Emergency Priority) by contact closure. Euroblock connector
OUTPUTS: 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV)
100 V or 4 Ω speaker output, or 2 100 V speaker zones with 5-position volume selector and OFF. Connector screw terminals
IMPEDANCE: 4 Ω and 100 V line (166 Ω)
FUNCTIONS: Input priority (Voice over VOX inputs):
100 V Emergency input with highest priority, attenuates all other inputs.
Mute by contact closure, attenuates all inputs except the 100 V Emergency input.
Channel 1 with priority over all other inputs, selectable level.
Channel 2 with priority over auxiliary inputs, level selectable.
Other functions:
Power on, protection, signal peak and output signal indicator lights.
Fanless induction cooling
PLAYER: Bluetooth/USB/FM player for background music playback
MP3 and WAV files supported
Maximum USB memory capacity 64 GB
Autoplay, starts playback automatically on power on
Memory of last selected mode
Memory of playback mode (random, repeat)
CONTROLS: Microphone volume
Mic/line/phantom selector
Master volume
Aux input or player selector
Zone volume
Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
Microphone gain
Priority activation signal level (VOX)
OPERATING TEMPERATURE: Operation: 0º ~ 40ºC
MAXIMUM HUMIDITY: 95%
POWER SUPPLY: 230/115 V AC 50-60 Hz, 200 W
Fuse AC 230 V 1.5 A / 115 V 3.15A
DIMENSIONS: 320 x 94 x 281 mm depth
WEIGHT: 5 kg
ACCESSORIES: FM antenna
Bluetooth antenna
Power cable

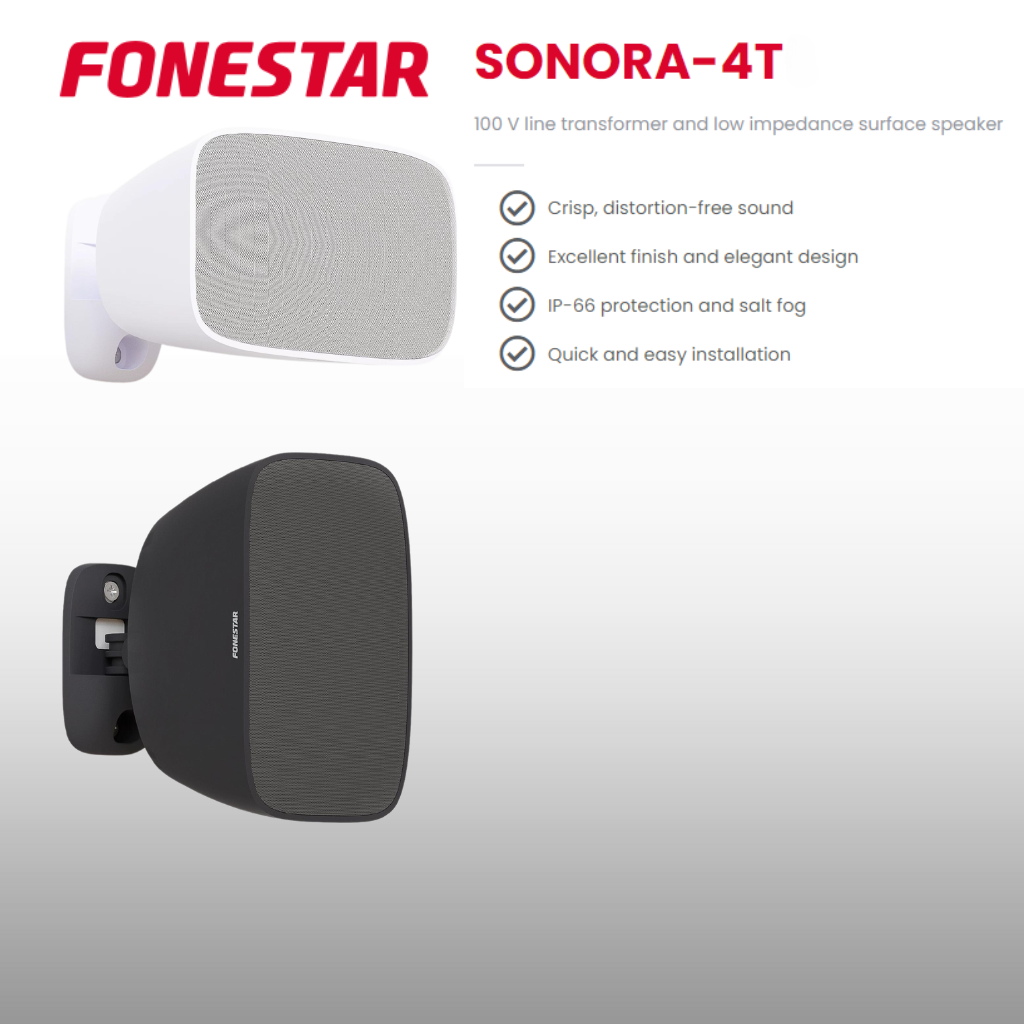

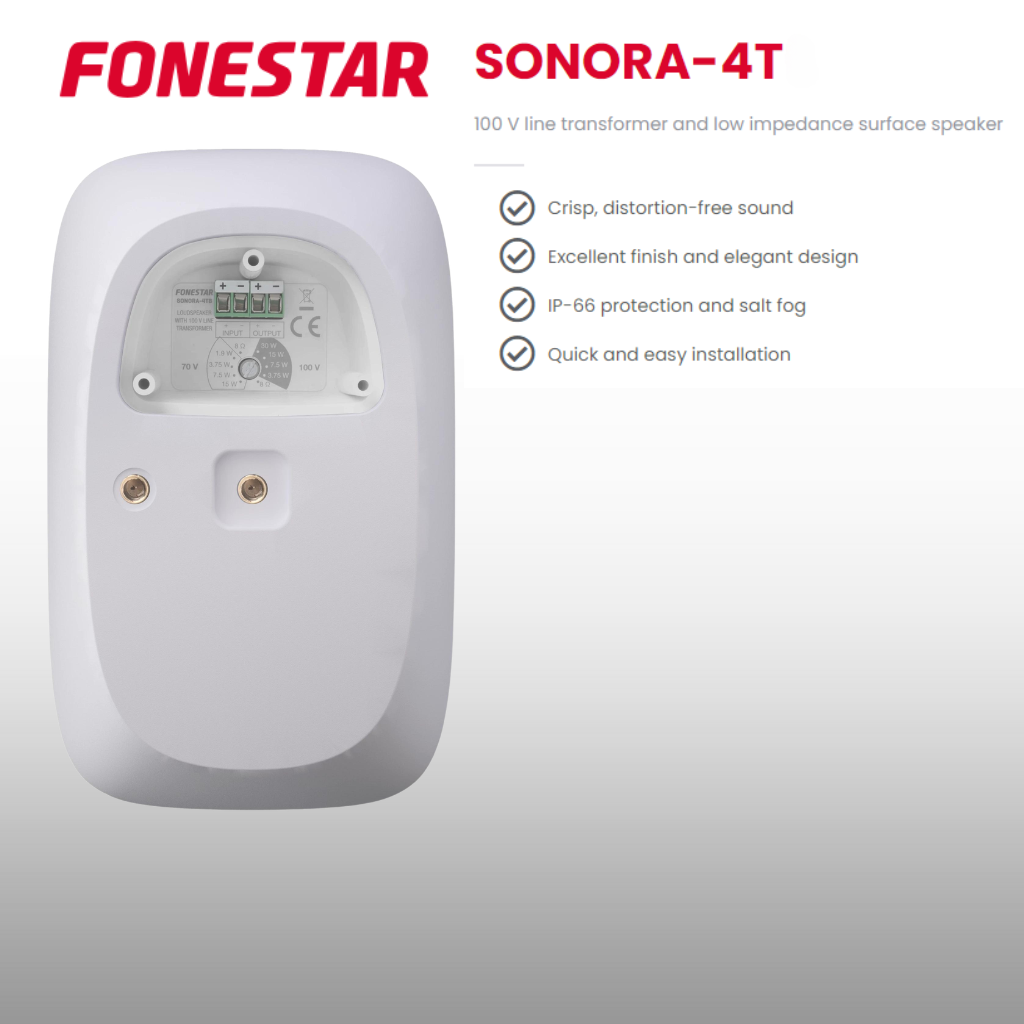

Fonestar SONORA-4T wall speakers (white or black)

FEATURES: Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.
POWER: 60 W max., 30 W RMS
LOUDSPEAKERS: 1 x 4" polypropylene woofer
1 x 1” tweeter
RESPONSE: 120-20,000 Hz
IMPEDANCE: 30 W RMS@100 V (333 Ω)
15 W RMS@100 V (667 Ω)
7.5 W RMS@100 V (1,333 Ω)
3.75 W RMS@100 V (2,667 Ω)
Low Z: 8 Ω
SENSITIVITY: 83 dB @ 1 W/1 m

MAXIMUM SOUND PRESSURE: 96 dB @ max. W/1 m
COVERAGE ANGLE: H/V: 215º/225º @500Hz, 145º/130º@1kHz, 115º/120º@2kHz, 80º/110º@4kHz (-6 dB)
PROTECTION: IP-66 in compliance with EN 60529
IEC 60068-2-11 Environmental tests (Saline mist)
MATERIAL: ABS
Aluminium mesh grille
Mount with weatherproof treatment
Stainless steel screws
SWITCH: W selector in high Z and low Z
CONNECTORS: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
TEMPERATURE RANGE: -10ºC ~ 60ºC
COLOUR: Black (RAL 9005)
DIMENSIONS: Loudspeaker: 125 x 202 x 125 mm depth
Mount wall plate: 68 x 110 mm
Loudspeaker with mount: 193 mm depth
WEIGHT: 1.5 kg
ACCESSORIES: Adjustable mounting bracket ± 60º in all directions.
Steel safety cable

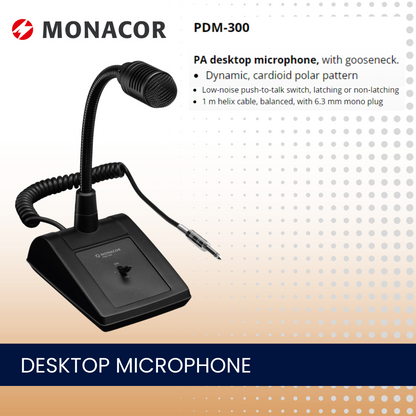

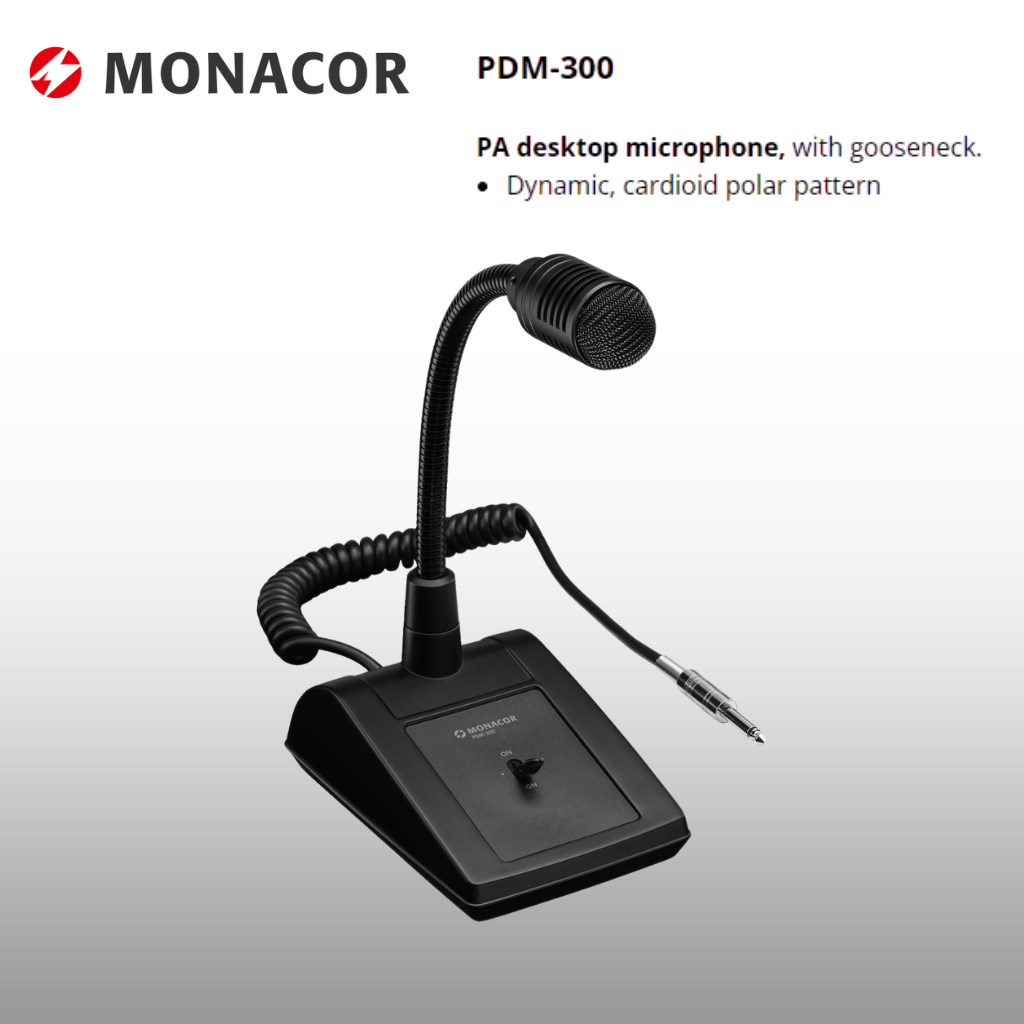

Monacor PDM-300 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
310 mm (length of gooseneck)

Weight 810 g
Cable 1 m
Connection 6.3 mm plug
Packing dimensions (W x H x L) 0.18 x 0.27 x 0.13 m
Gross weight 1.015 kg
Net weight 0.818 kg
